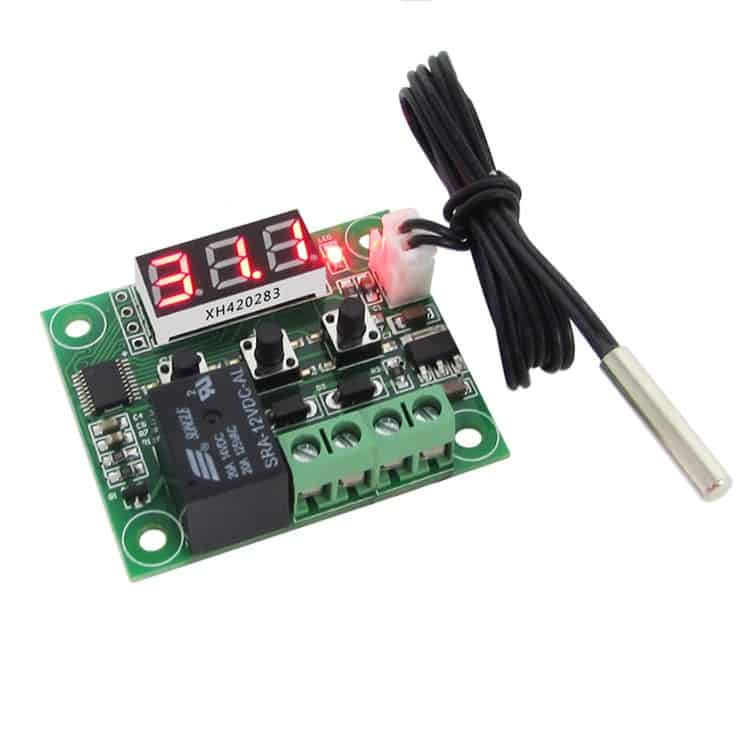

Temperature Control Switch Module W1209

120.00EGP

Out of stock

Join Waitlist

Product Description

Product Description
Digital Temperature Control Switch for you is unlike any other digital temperature control switch. The product can measure from -50 to 100. At the same time, it also a high accuracy,When temperature is 0.1 , the resolution is -9.9~99.9, other temperature segment is 1, and there is a LCD screen to show you the information, really perfect to use, you will love it!
How To Use:
  • Connect the power supply and the load, you can supply to the controller.
  • Is displayed as a measured temperature.
  • Press the SET button, the display flashes the temperature.
  • Press – to set the desired temperature.
  • After setting press SET to confirm return.
  • The controller automatically performs the relay by setting off.
  • Lights, LED status descriptions.
  • Indicator: Off The relay is switched off, Always indicate the relay is closed.
  • LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay.
  • The display–as high temperature protection.
Specification
Temperature range: -50-110.
Temperature control mode: ON / OFF.
Resolution: When temperature is 0.1 , the resolution is -9.9~99.9, other temperature segment is 1
Control accuracy: 0.1 .
Hysteresis accuracy: 0.1 .
Refresh rate: 0.5S.
S>High temperature protection: 0-110 .
Supply voltage: DC 12V.
SStatic current: <= 35MA, attract current <= 65MA.
Output voltage: DC 14V.AC 125V
SOutput power: 20A relay .
Measurement input: NTC (10K 0.5%) Waterproof Sensor.
Environmental requirements: -10 ~ 60 Humidity 20% -85%.
