2.4G Antenna For wifi module ZigBee antenna SMA to IPEX

Description

DESCRIPTION

The 2.4GHz 3dBi Antenna with an IPEX SMA Connector is a compact, high-performance antenna designed for wireless communication systems operating at 2.4GHz frequency. The antenna is designed with a 3dBi gain, making it suitable for short to medium-range wireless communication applications

The antenna operates in the 2.4GHz frequency range, making it ideal for use with popular wireless standards such as IEEE 802.11b/g/n Wi-Fi, Bluetooth, Zigbee, and many other IoT (Internet of Things) devices.

TECHNICAL DETAILS

• Frequency: 2.4GHz
• Antenna Gain: 3dbi
• Antenna Connector: Male SMA
• IPEX to Female SMA Connector: 15cm
• Standing Wave Ratio V.S.W.R.: <1.5
• Polarization: Vertical
• Non-Circularity: ±0.5dB
• Input Impedance: 50Ω
• Lightning Protection: Direct Ground
• Maximum Input Power: 50W
• Radiating Element Material: Copper
• Radome Material: EVA
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +80°C

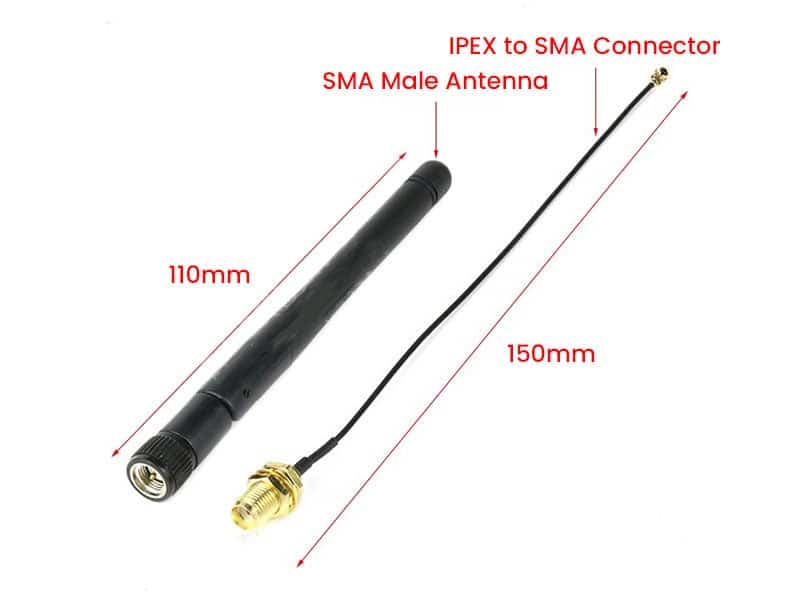

SHIPPING LIST

• 1x 2.4GHz 3dbi Male SMA Antenna
• 1x IPEX to Female SMA Connector
