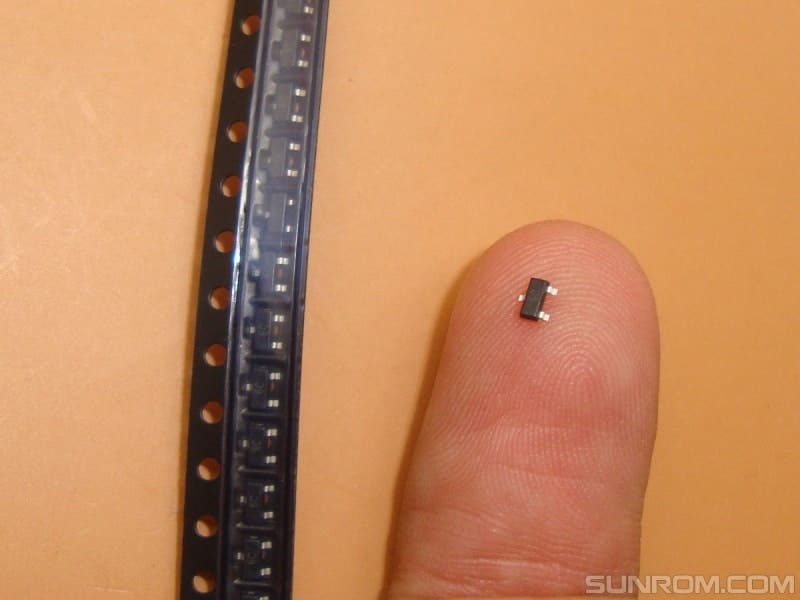

2N5551 (G1) MMBT5551 (180 V, 600 mA) NPN SMD Transistors SOT-23

In Stock
EGP4.00
In Stock
Categories: ,

Description

MMBT5551 G1 0.6A/180V NPN SOT23-3 2N5551 SMD Transistor

Specifications:.

Type Designator: MMBT5551
SMD Transistor Code: 3S_G1_K4N
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.6 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 80

Package Content:
1pcs MMBT5551 G1 SOT23-3 SMD Transistor
