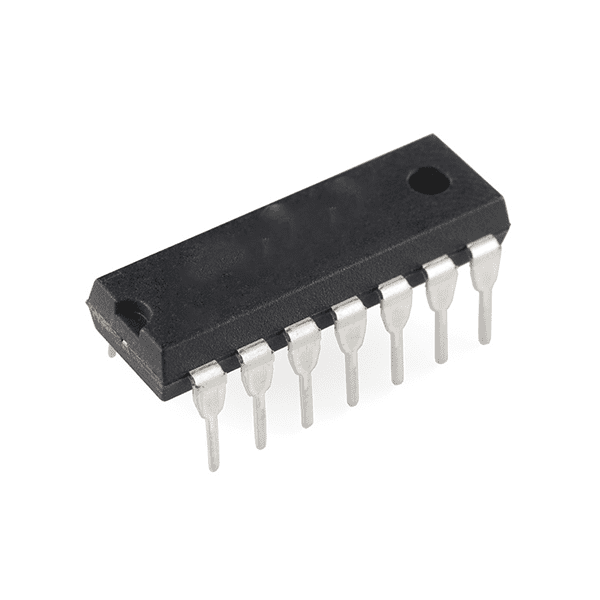

74191 (4-bit Up/Down Binary Counter )

The 74191 is a 4-bit Up/Down Binary Counter with Synchronous Parallel Load. It is part of the 7400 series and is used for counting applications, where it counts in either an up or down direction based on control inputs. This IC is widely used in digital systems that require binary counting, such as frequency counters, digital clocks, timers, and other counting systems.

74191 IC Description:

The 74191 is a synchronous 4-bit up/down binary counter that can count in either direction. It is designed to be used in systems where counting needs to be done in a precise and controlled manner. The counter can be loaded with a 4-bit value via parallel inputs and will count either up or down depending on the control inputs. The 74191 also includes a synchronous reset function and operates in synchronous mode, meaning all bits change in sync with the clock pulse.

Key Features:

• 4-bit Up/Down Counter: The 74191 has a 4-bit binary counter, which means it can count from 0 to 15 in binary (0000 to 1111).
• Synchronous Parallel Load: It has the ability to load a 4-bit parallel value into the counter when needed, which can be done asynchronously with the counting process.
• Up/Down Control: The counter can count either up (incrementing) or down (decrementing) based on the state of the Up/Down (U/D) control pin.
• Clocked Operation: The counter changes state based on the clock (CLK) input. All bits change synchronously on the rising edge of the clock.
• Asynchronous Reset (CLEAR): The counter has an active-low Clear pin that resets the counter to 0000 when triggered.
• Carry Output (CO): The Carry Output is used to indicate when the counter has reached its maximum or minimum value, and it can be connected to other counters to cascade them for counting larger numbers.

Pin Configuration (16-pin package):

Here’s the pinout for the 74191 4-bit Up/Down Counter:

1. Pin 1 (Q0): Output bit 0 (Least Significant Bit).
2. Pin 2 (Q1): Output bit 1.
3. Pin 3 (Q2): Output bit 2.
4. Pin 4 (Q3): Output bit 3 (Most Significant Bit).
5. Pin 5 (Carry Output): CO - Carry output for cascading counters.
6. Pin 6 (Clear): Active-low Clear input for resetting the counter.
7. Pin 7 (Up/Down): Control input for counting direction. High = Up, Low = Down.
8. Pin 8 (Clock): CLK - Clock input for synchronizing counting.
9. Pin 9 (Parallel Data Input D0 to D3): Parallel data inputs for loading a 4-bit value into the counter.
10. Pin 10 (Load): Load pin, used to enable parallel loading of the counter with the data on D0 to D3.
11. Pin 11 (Vcc): Supply voltage (typically 5V).
12. Pin 12 (D0): Parallel data input bit 0.
13. Pin 13 (D1): Parallel data input bit 1.
14. Pin 14 (D2): Parallel data input bit 2.
15. Pin 15 (D3): Parallel data input bit 3.
16. Pin 16 (Ground): Ground.
