7448 (BCD to 7-Segment Decoder Driver) For Com.Cathode Segment

In Stock
EGP35.00
In Stock
Other people want this. 1 people have this in their carts right now.

Description

The 74LS48 feature active-high outputs for driving lamp buffers or common-cathode LEDs. They have full ripple-blanking input/output controls and a lamp test input.
Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions.  Their circuits incorporate automatic leading and/or trailing-edge zero-blanking control (RBI\ and RBO\).
Lamp test (LT\) of these types may be performed at any time when the BI\/RBO\ node is at a high level.
They contain an overriding blanking input (BI\), which can be used to control the lamp intensity by pulsing or to inhibit the outputs.
Inputs and outputs are entirely compatible for use with TTL logic outputs.

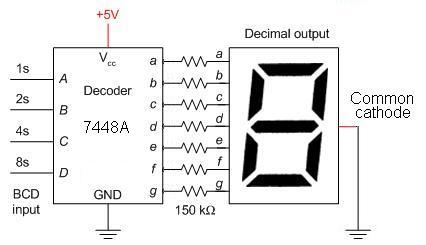

Segment identification and resultant displays is as shown below.

Features

The 74LS48 features include;

  • Internal Pull-Ups Eliminate Need for External Resistors
  • Lamp-Test Provision
  • Leading/Trailing Zero Suppression
  • Lamp Intensity Modulation Capability



Image result for 7448 IC
