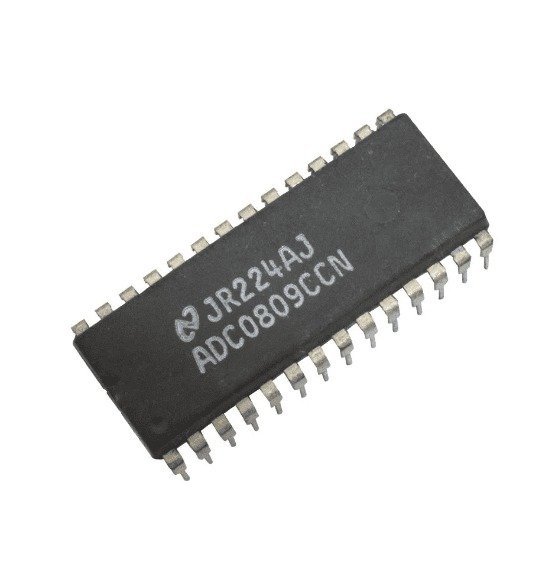

Name: ADC0809 (8-bit Analog To Digital Converters)
SKU: 62610
Availability: InStock

ADC0809 (8-bit Analog To Digital Converters)

In Stock

EGP155.00

In Stock

Other people want this. 4 people have this in their carts right now.

Description

ADC0809 Analog To Digital Converters

The ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.

The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.

The design of the ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeat-ability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications.

Features:

Easy Interface to All Microprocessors.
Operates Ratio-metrically or with 5 V_DC or Analog Span Adjusted Voltage Reference.
No Zero or Full-Scale Adjust Required.
8-Channel Multiplexer with Address Logic.
0V to V_CC Input Range.
Outputs meet TTL Voltage Level Specifications.
ADC0809 Equivalent to MM74C949-1.

Specifications:

Parameters	Specification
Part number	ADC0809-N
Resolution (Bits)	8
Sample rate (Max) (kSPS)	10
Number of input channels	8
Interface	Parallel
Operating temperature range ( C )	-40 to 85
Package Group	PLCC \| 28
Power consumption (Typ) (mW)	15
Package size: mm2:W x L (PKG)	28PLCC: 155.0025 mm² : 12.45 x 12.45 (PLCC \| 28)
Architecture	SAR
Input type	Single-Ended
Multi-channel configuration	Multiplexed
Input range (Max) (V)	6
Input range (Min) (V)	0
Analog voltage AVDD (Min) (V)	4.5
Analog voltage AVDD (Max) (V)	6
Digital supply (Min) (V)	4.5
Digital supply (Max) (V)	6
INL (Max) (+/-LSB)	1.25

Applications:

Microprocessor-based data acquisition systems.
Digital signal processing.
Industrial process control.
Instrumentation and measurement systems.
Consumer electronics.
Automotive systems.
Medical devices.

Package Contents:

1x ADC0809 Analog To Digital Converters

ADC0809 IC Datasheet
