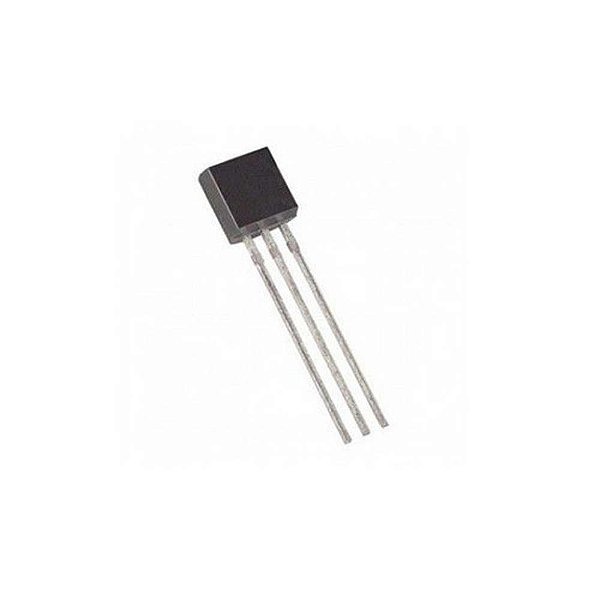

BC548 Transistor (NPN, 30V, 100mA)

Description

The BC548 is a widely used NPN bipolar junction transistor (BJT), primarily intended for low-power amplification and switching applications. It is one of the most common general-purpose transistors used in electronic circuits, particularly in small signal applications. Here’s a detailed breakdown of the BC548 transistor:

Key Features of BC548:

1. Type:
   • NPN Transistor: The BC548 is an NPN transistor, meaning the majority charge carriers are electrons (negative charge carriers). Current flows from the collector to the emitter when a positive voltage is applied to the base relative to the emitter.
2. Voltage and Current Ratings:
   • Collector-Emitter Voltage (Vce): 30V
     • The BC548 can withstand a maximum collector-emitter voltage of 30V, making it suitable for low-to-medium voltage circuits.
   • Collector Current (Ic): 100mA (0.1A)
     • The BC548 can handle a maximum collector current of 100mA, which is typical for small-signal transistors used in low-power applications.
3. Power Dissipation:
   • The maximum power dissipation for the BC548 is 500mW, which indicates the amount of power it can dissipate without overheating. For higher power dissipation, heat sinking or proper ventilation might be necessary.
4. Current Gain (hFE):
   • The BC548 has a current gain (hFE) typically ranging from 110 to 800 depending on the operating conditions. This means the transistor can amplify a small input current at the base to a much larger output current at the collector.
5. Package Type:
   • The BC548 is typically available in the TO-92 package, a small, three-lead package commonly used for low-power signal transistors.
6. Applications:
   • The BC548 is commonly used in signal amplification, switching, and low-power control circuits. It is widely used in audio circuits, oscillators, signal conditioning, and pre-amplifiers.

Pin Configuration (TO-92 Package):

The BC548 typically comes in a TO-92 package, and the pin configuration is as follows:

Applications of BC548:

1. Amplification Circuits:
   • The BC548 is commonly used in low-power audio amplifiers, signal amplifiers, and pre-amplifiers. It can amplify weak analog signals to drive other stages in a circuit.
2. Switching Circuits:
   • The BC548 is frequently used in switching applications where small signals control larger currents. It is suitable for driving low-power loads such as LEDs, relays, or small actuators.
3. Signal Conditioning:
   • It is widely used for signal conditioning in analog circuits, where small, noisy signals need to be amplified, filtered, or transformed before further processing.
4. Oscillators:
   • The BC548 can be used in oscillator circuits, such as sine wave, square wave, and timing circuits, for generating periodic signals.
5. Sensing and Control:
   • It is often used in sensing and control circuits, where a small signal (like from a sensor) is amplified to activate other components like relays or motors.

Advantages of BC548:

1. Low Power:
   • The BC548 is designed for low-power applications, handling small currents and voltages. This makes it ideal for battery-operated devices or other low-power systems.
2. General-Purpose Use:
   • The BC548 is a general-purpose transistor, which means it can be used in a wide variety of applications, from audio amplification to switching and signal conditioning.
3. Compact Size:
   • The TO-92 package is small and easy to integrate into most electronic circuits, especially in tight spaces.
4. Cost-Effective:
   • The BC548 is inexpensive, making it a popular choice for a variety of hobbyist, educational, and industrial applications.

Disadvantages of BC548:

1. Limited Current Handling:
   • The maximum collector current of 100mA is relatively low, meaning the BC548 is not suitable for high-power applications like driving large motors or high-current relays.
2. Voltage Limitation:
   • The maximum collector-emitter voltage of 30V is relatively low compared to other transistors, which limits its use in higher-voltage circuits.
3. Saturation Voltage:
   • The saturation voltage (Vce_sat) is typically around 1V, which results in some energy loss when the transistor is in the “on” state. This could be a concern in circuits where efficiency is critical.
4. Frequency Limitations:
   • The BC548 is not designed for high-frequency applications, so it may not be suitable for use in RF circuits or fast-switching digital circuits.
