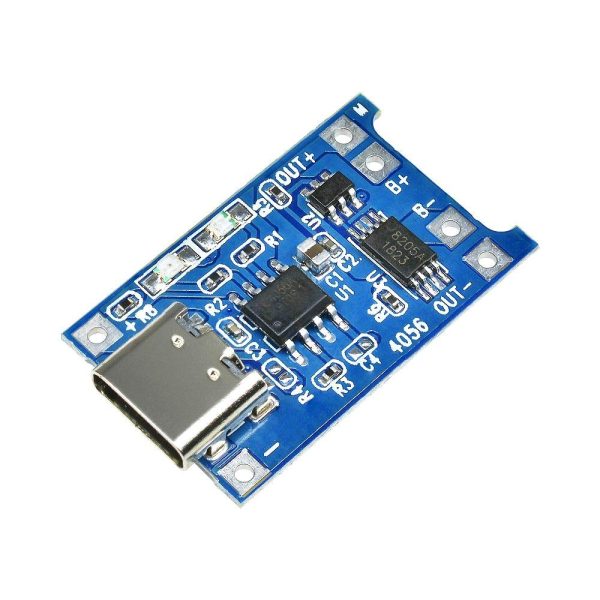

BMS 1S TP4056 (5V – 1A) Lithium Battery Charger Board ( Type C ) With Protection
- 100% brand new and high quality
- Charge module- Linear charging.
- Current- 1A adjustable.
- Charge precision- 1.5%.
- Input voltage- 4.5V-5.5V.
- Full charge voltage- 4.2V.
- Led indicator- red is charging Green is full charged.
- Input interface- micro USB Type C.
- Work temperature- -10? to +85?.
- Inversed polarity- NO.
- Size- small to 25X19X10mm.
- Ampere meter can only be connected to 5v input end of the module.
- It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
- The connection wire should not be too thick.
- Make sure the connect point is good.
- If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
- NO Reveral polarity.
