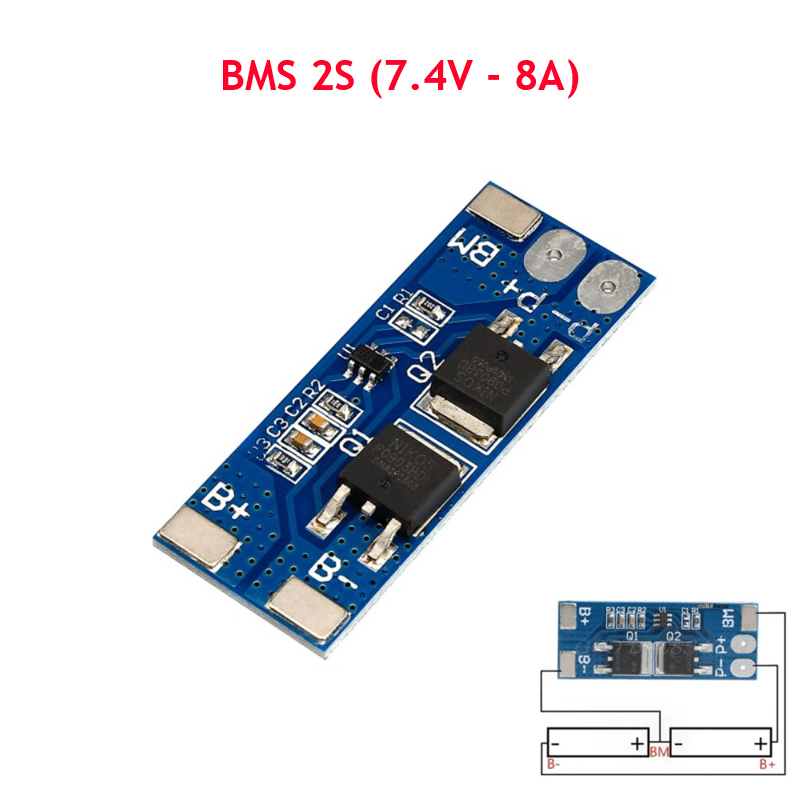

BMS 2S (7.4V – 8A) Lithium Battery Protection Module
In Stock
EGP60.00
In Stock
Add to WishlistRemove from Wishlist
CompareAdd to Wishlist
Description
Features:
- High-accuracy voltage detection circuit
- Terminal of the charger using high voltage device
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit)
- MOS transistor can control the battery charge and discharge
- Low standby current consumption.
Protections:
- Short circuit protection.
- Overcharge protection.
- Over-discharge protection.
- Over-current protection.
Specifications:
- Upper limit working current: 13A
Upper limit instantaneous current: 10A
Overcharge voltage range: 4.28V ± 0.05V
Over-discharge voltage range: 2.9V ± 0.05V
Quiescent current: less than 10uA
Charging voltage: 7.2V-8.4V
Short circuit protection: protection, delay self-recovery
Connections:
- B+ B-: The interface of the battery core
- P+ P-: The connector of the battery board
- MB: The connection point between the batteries
- B+: Battery V+ Positive
- B-: Battery V- Negative
- P+: Output / Charging V+
- P-: Output / Charging V-
Applications:
- Battery pack
- Power supply
- Power bank and charger
