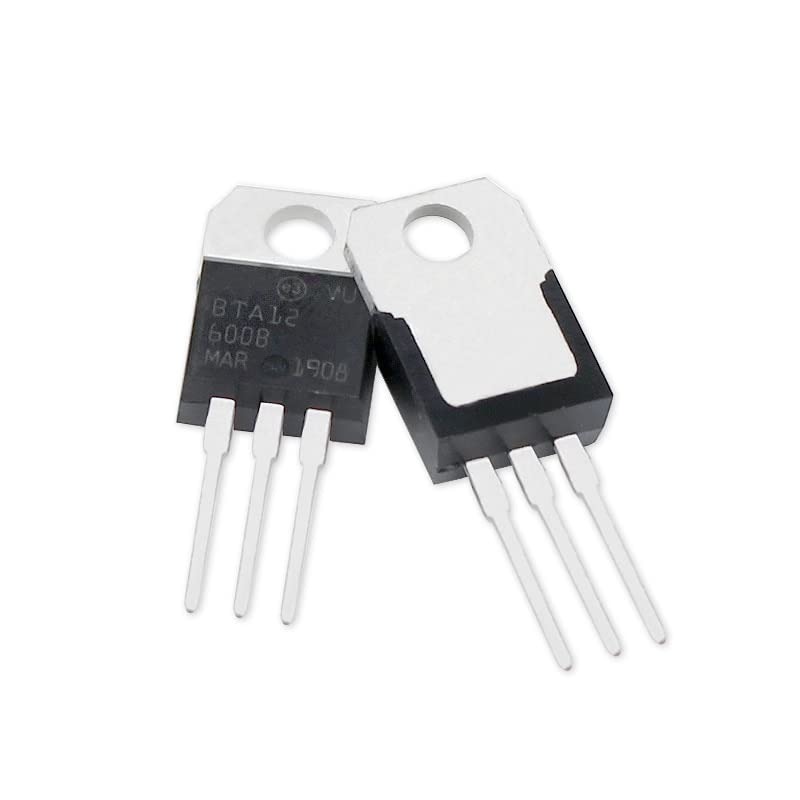

BTA12 – 600B TRIAC (600V-12A)

Description

BTA12 – TRIAC (12A, 600V)

The BTA12 is a TRIAC (Triode for Alternating Current) designed for medium-to-high power AC control applications. It is widely used in AC switching circuits and is suitable for controlling various loads such as motors, heaters, lighting, and other resistive and inductive AC devices. The BTA12 TRIAC is commonly used in phase control, dimming applications, and solid-state relays (SSR) due to its high current and voltage ratings.

Key Features of BTA12:

1. Voltage and Current Ratings:
   • Repetitive Peak Reverse Voltage (V_RRM): 600V
     • The BTA12 can handle peak reverse voltages of 600V, making it suitable for typical medium-voltage AC applications.
   • Average On-State Current (I_T(RMS)): 12A
     • The device can continuously handle 12A RMS of current in its on-state, suitable for controlling moderate-to-high-power AC loads.
2. Gate Triggering:
   • Gate Trigger Voltage (V_GTM): 1V to 2V
   • Gate Trigger Current (I_GTM): 5mA to 10mA
     • The TRIAC can be triggered by a small voltage (1-2V) and current (5-10mA) at its gate, allowing for easy control by low-power devices like microcontrollers or logic circuits.
3. Low On-State Voltage Drop:
   • The TRIAC has a relatively low on-state voltage drop, which helps reduce power losses during conduction, improving overall circuit efficiency.
4. Bidirectional Control:
   • The BTA12 is a bidirectional TRIAC, meaning it can conduct current during both the positive and negative half-cycles of the AC waveform. This makes it ideal for controlling AC loads.
5. Package Type:
   • The device is typically packaged in TO-220 or TO-218, allowing for easy mounting on a heatsink for effective heat dissipation during operation.

Applications of BTA12:

1. AC Power Control:
   • Used in light dimmers, fan speed controllers, heater control circuits, and other applications where the power delivered to the load needs to be varied. By controlling the phase angle of the AC waveform, the TRIAC regulates the amount of power supplied to the load.
2. Solid-State Relays (SSR):
   • The BTA12 is commonly used in solid-state relays for switching AC loads. The TRIAC allows for high-speed switching without mechanical components, resulting in longer lifespan and higher reliability compared to traditional relays.
3. Motor Speed Control:
   • The BTA12 is used in motor speed control circuits where the TRIAC adjusts the power delivered to an AC motor, controlling its speed and performance.
4. Temperature and Lighting Control:
   • In temperature regulation systems, the BTA12 can be used for AC heating control (e.g., in ovens, toasters, or water heaters). In lighting control, it is used to adjust the brightness of lamps and lighting systems.
5. Phase Control and Timing Applications:
   • The BTA12 is ideal for phase-control applications, where it is used to regulate power delivery to an AC load by controlling the timing of its conduction during each cycle of the AC waveform.

Advantages of BTA12 TRIAC:

1. High Voltage and Current Rating:
   • With a 600V voltage rating and 12A RMS current rating, the BTA12 is suitable for medium-power AC control applications, such as controlling heating elements, motors, or large lighting systems.
2. Bidirectional Conduction:
   • The BTA12 can conduct current in both directions of the AC cycle, making it versatile and effective for controlling AC power in a wide range of applications.
3. Low Gate Trigger Power:
   • The TRIAC is easy to trigger with a low voltage and current at the gate, making it compatible with low-power control circuits like microcontrollers or digital logic.
4. Efficient Power Switching:
   • The low on-state voltage drop results in low power dissipation and reduced heat generation, improving the energy efficiency of the circuit.
5. Durability and Reliability:
   • As a solid-state component, the BTA12 has no moving parts, making it more durable and reliable than mechanical relays. It also operates silently and has a longer operational life.
