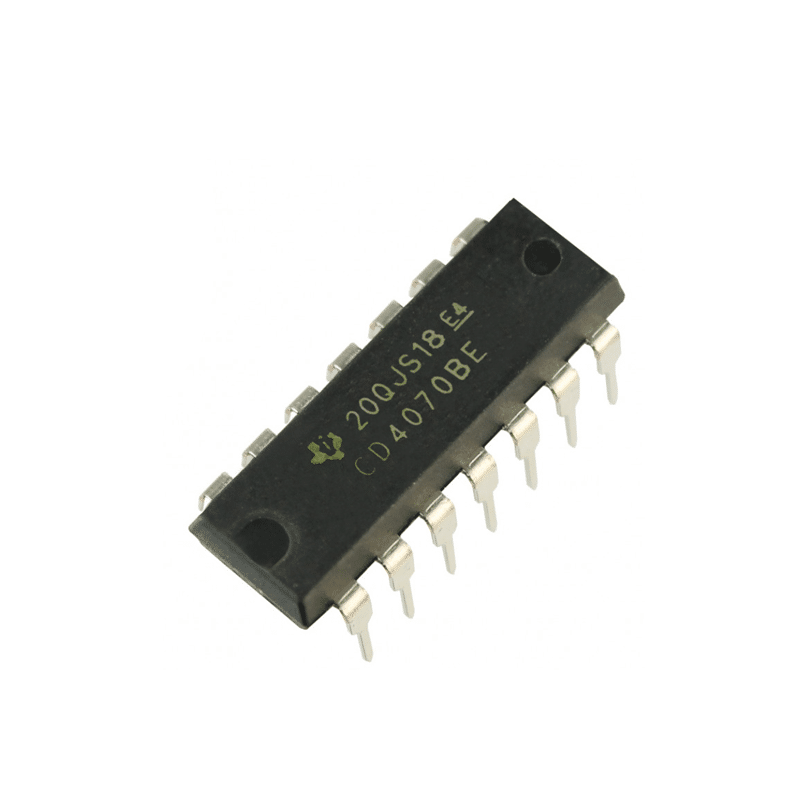

CD4070 BE (Quad XOR Gate)

In Stock
In Stock
Categories: ,


The  CD4070 Quad XOR Gate  is a modern and compact Integrated Circuit used for the most diverse purposes, in general it is an electronic component that brings together several other components capable of performing advanced tasks.
An Integrated Circuit is capable of executing different functions depending on the components that are integrated, among them, timer, amplifier, oscillator, controller, in short, several other functions.
In most cases, ICs such as the CD4070 form part of larger circuits, operating in total synchrony with the other parts of the system, receiving electronic signals and ordering certain actions.
Internally, Integrated Circuits are formed by capacitors, which are responsible for storing charges, transistors that act in order to amplify signals and resistors that are used to prevent the passage of current, varying the components according to each model.
Very compact, the CI CD4070 Porta Quad XOR Gate can be applied to several board models, having 14 terminals for connection, which are specified in the datasheet available for download below.


– CD4070 Integrated Circuit;
– CD4070 XOR port;
– Compact;
– It has 2 rows of 7 terminals, in total there are 14;
– Specification of the terminals in the datasheet;
– Ideal for Automotive, Instrumentation, Medical Electronics, Alarm Systems and Industrial Electronics applications;
– Excellent cost-benefit ratio;
–  Datasheet CD4070 .


– Model: CD4070;
– Supply voltage range: 3.0V to 15V;
– More specifications in the datasheet;
– Terminals: 14 (2×7);
– Dimensions (LxWxH): 19.5×6.4×3.3mm; (ignoring terminals)
– Weight: 1g.
