Description

ACS758 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing.
Typical applications include motor control,Load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.

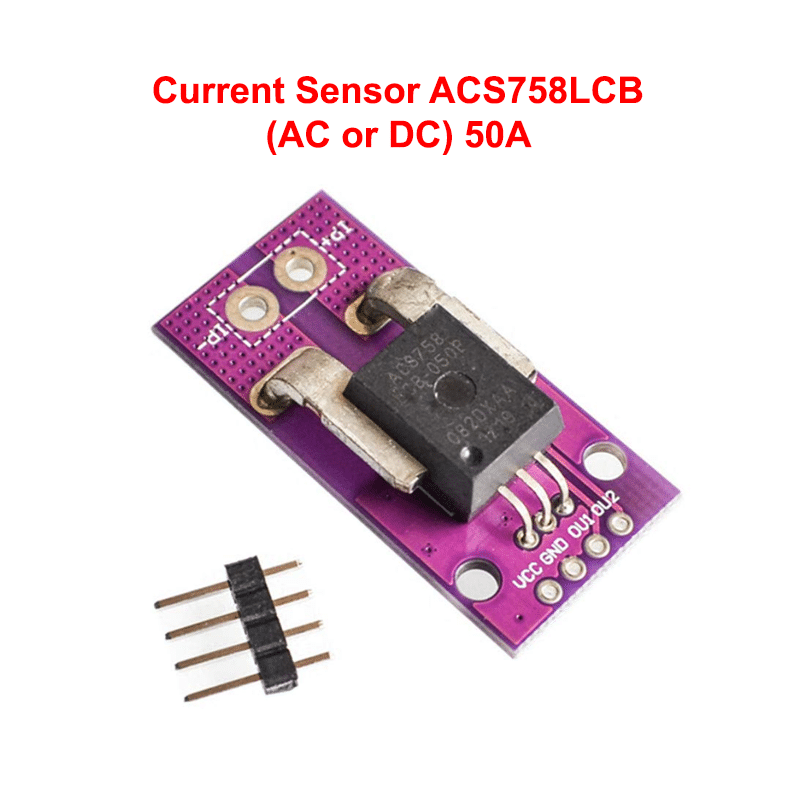

This Module is based on the Allegro Hal -effect Based Linear Current Sensor IC ACS758LCB -050B.This is a 50 Ampere Bi-directional current sensor Module.

Features:

• Industry-Leading noise performance through proprietary amplifier and filter design techniques
• Total output error improvement through gain and offset trim over temperature
• Smallpackage size, with easy mounting capability
• Extremely stable output offset voltage
• Output voltage proportional to AC or DC currents
• Monolithic Hall IC for high reliability
• 120 kHz typical bandwidth

Electrical Characteristics:

• Operating voltage : 3 to 5 Volts (MAX 8 V)
• Static output voltage: VCC/2
• Operating current : 13.5 mA (MAX)
• Storage temperature range: -65 °C – 165 °C
• Maximum output current (VIOUT-GND) : 3 mA
• Internal bandwidth: 120 kHz
• Detection current range (A) : ±50 A
• Linearity (mV/A) : 40
• Working temperature (°C) : -40 to 150

Mechanical  Characteristics:

• Module size: 37mmX 18mm
• Module weight : 8 g

Applications:

• Motor current sensing
• Power electronics
• AC/DC current sensing

Datasheet:

• Datasheet: https://drive.google.com/file/d/1ITLxPvOXSoaONyg1Bp50f_kVPxExsJso/view
