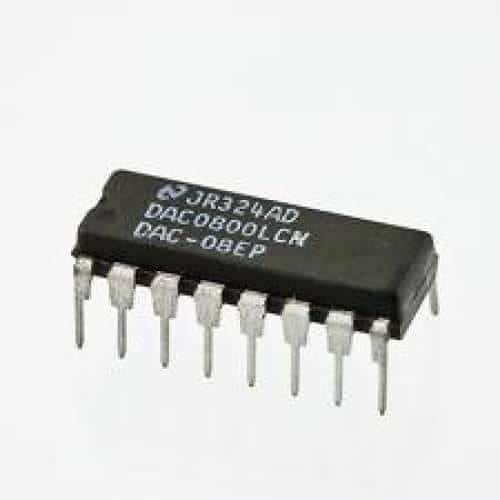

DAC0800 Digital To Analog Converters IC

Description

Description:

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the non linearities of better than ±0.1% over temperature minimizes system error accumulations.

The noise immune inputs will accept a variety of logic levels. The performance and characteristics of the device are essentially unchanged over the ±4.5V to ±18V power supply range and power consumption at only 33 mW with ±5V supplies is independent of logic input levels.

Pin Layout

Pin Description

Features:-

• Fast Settling Output Current: 100 ns
• Full Scale Error: ±1 LSB
• Non linearity Over Temperature: ±0.1%
• Full Scale Current Drift: ±10 ppm/°C
• High Output Compliance: −10 V to +18 V
• Complementary Current Outputs
• Interface Directly with TTL, CMOS, PMOS and Others
• 2 Quadrant Wide Range Multiplying Capability
• Wide Power Supply Range: ±4.5 V to ±18 V
• Low Power Consumption: 33 m W at ±5 V
• Low Cost

Specifications:-

Related Document:-

 DAC0800 IC Datasheet
