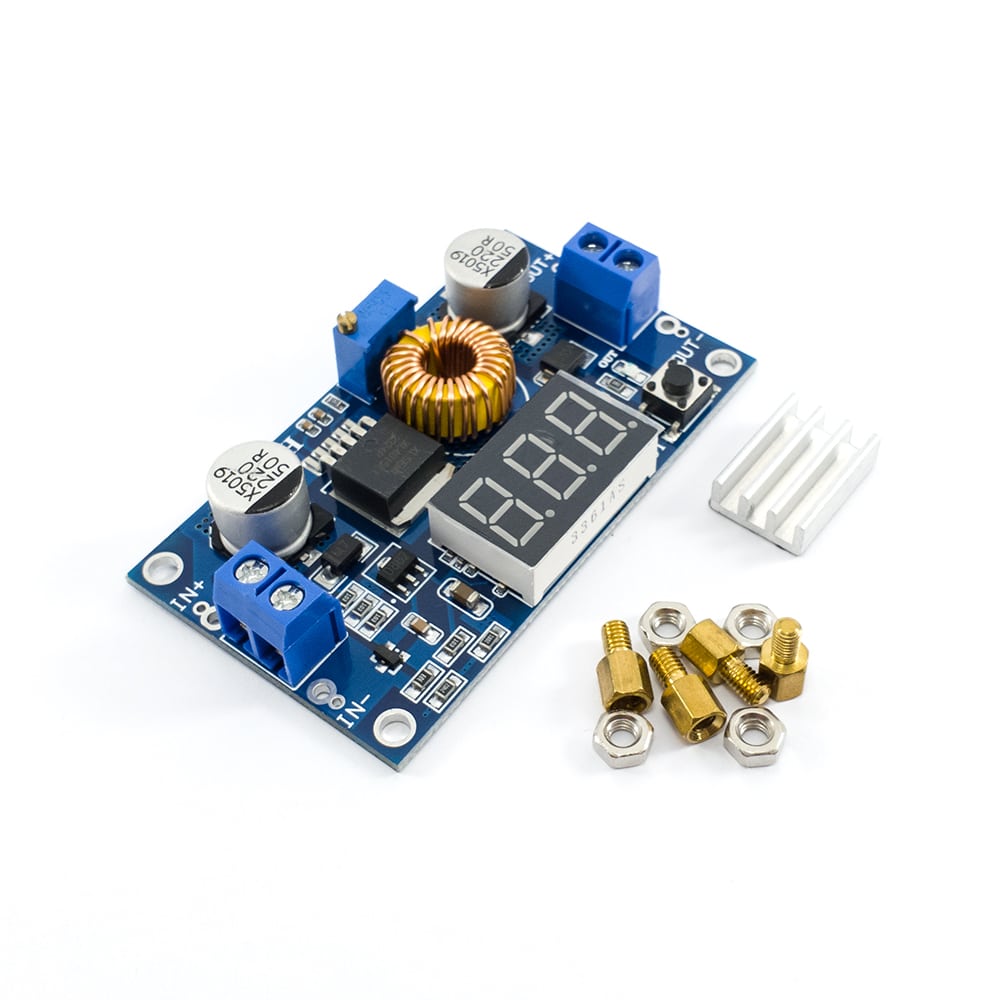

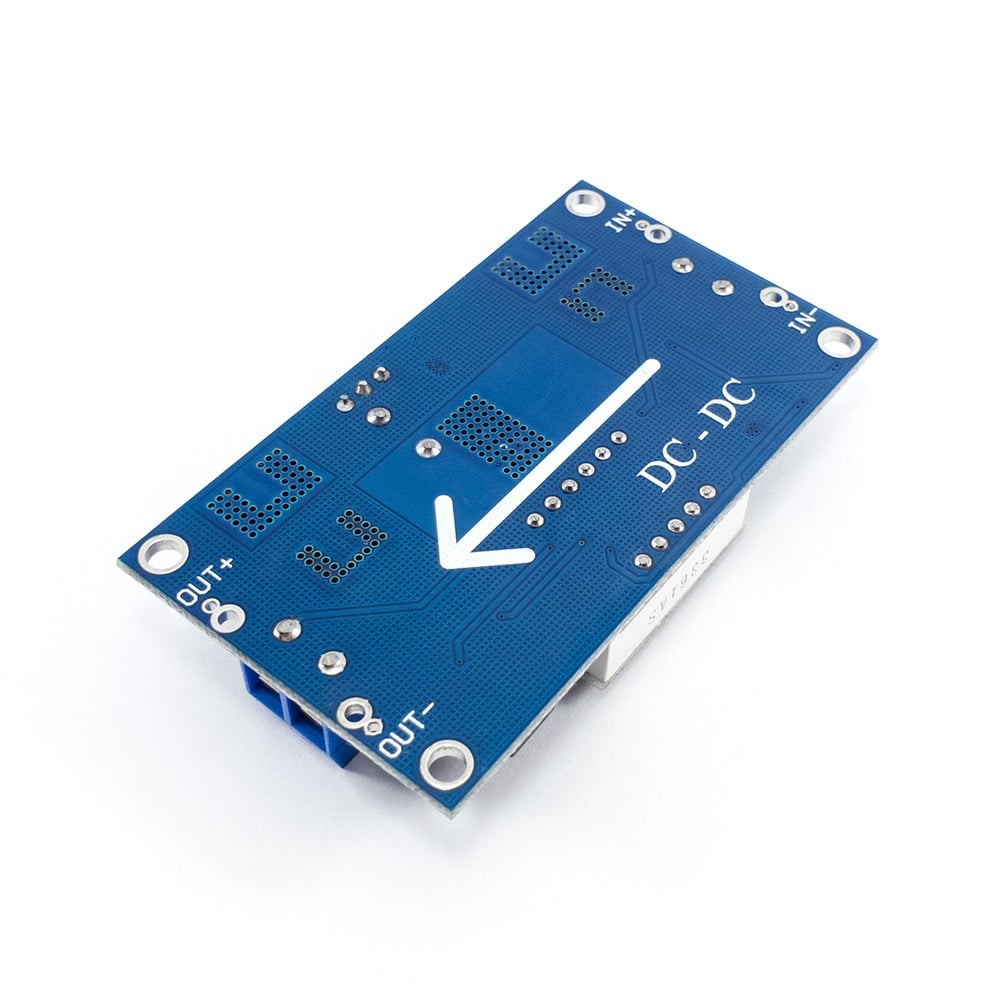

DC-DC Step Down Voltage Converter Adjustable 5A XL4015 (4.8V~38Vdc to 1.25V~36Vdc)

Description

Features / Specs

• Module Type: DC-DC Buck / Step-Down Converter (Non-isolated)
• Switching Control IC: XLSemi XL4015
• Input Voltage Range: 4.0 – 38VDC
• Output Voltage Range: 1.25 – 36VDC
• Max Output Current: 4.5A
• Max Output Power: 75W (If greater than 50W requires additional cooling)
• Conversion Efficiency: Up to 96%
• Voltmeter Range: 0 – 40VDC
• Voltmeter Error: ±0.05V
• Min Input Voltage For Voltmeter: 4.5VDC
• Built-in Protection: Output Short Circuit; Over Temperature
• Indicator LEDs: Green power LED and two red LEDs to show which voltage is being displayed on the Voltmeter (Input / Output)

Operation Overview

• The potentiometer can be used to adjust the output voltage. Clockwise to increase, and anti-clockwise to decrease
• Button Short Press – Changes what is displayed on the voltmeter. Either Input Voltage or Output Voltage
• Button Medium Press – Disable/Turn off the voltage display. A short press will enable the display again
• Button Long Press – Enter calibration/offset mode. Display will flash once button press is released. Input and output voltages can be adjusted by ±0.5V in 0.1V steps
