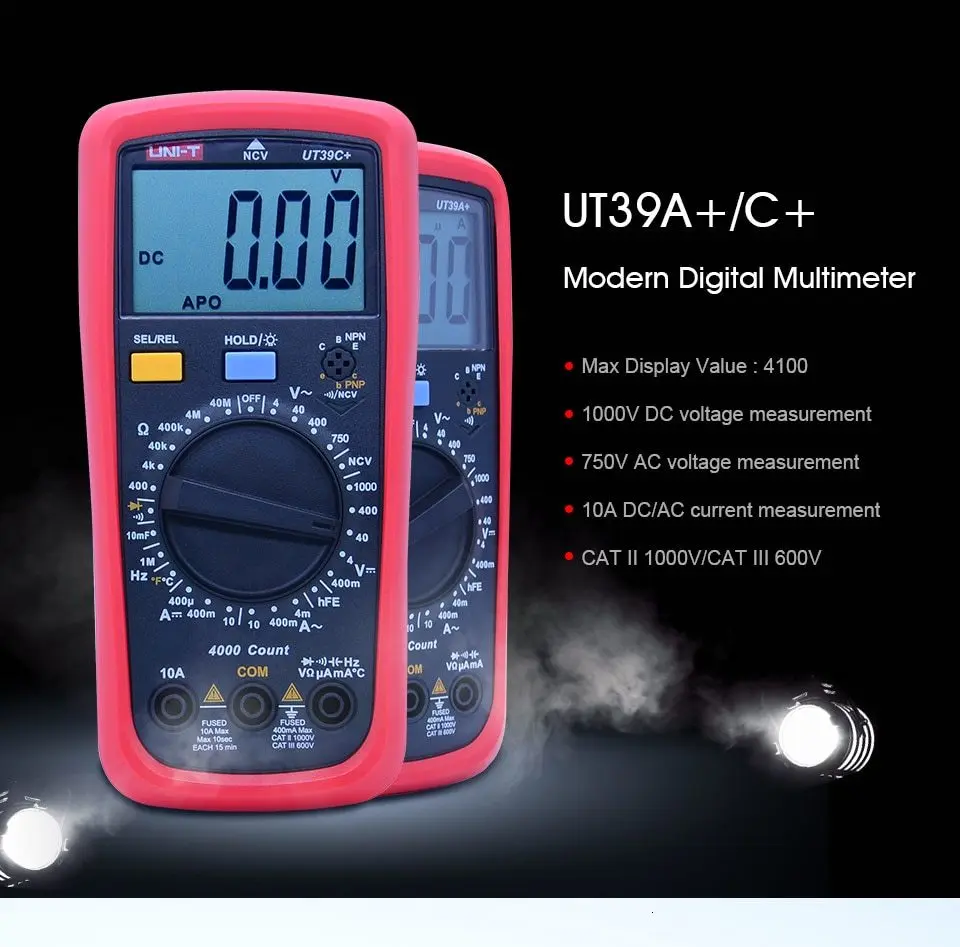

Digital Voltmeter / Multimeter UNI-T ( UT39C+)

Description

• UT39A+ UT39C+ is a portable multimeter designed for electric industry, it has overvoltage and overcurrent alarm functions, and high voltage protection for misoperation, complying with CAT II 1000V/CAT III 600V safety stardards

  UT39A+ UT39C+ Difference:

  UT39A+ don’t have NCV Temperature Frequency function.But UT39C+ with these function. Hope custmer choose carefully to avoid unnecessary trouble. Thank you!!!

  Features:

  1. 1000V DC voltage measurement
  2. 750V AC voltage measurement
  3. 10A DC/AC current measurement
  4. Resistance/Capacitance
  5. hFE
  6. Diode/Continuity test

  Specifications	Range	UT39A+	UT39C+
  DC voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+5)	±(0.5%+5)
  AC voltage (V)	4V/40V/400V/750V	±(0.8%+3)	±(0.8%+3)
  DC current (A)	40uA/400uA/4mA/40mA/400mA/10A	±(0.8%+3)
  	400uA/400mA/10A		±(0.8%+3)
  AC current (A)	40mA/400mA/10A	±(1%+2)
  	4mA/400mA/10A		±(1%+2)
  Resistance (Ω)	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ	±(0.8%+2)
  	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ		±(0.8%+2)
  Capacitance (F)	4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF	±(4%+5)	±(4%+5)
  Frequency (Hz)	10Hz~1MHz		±(1%+4)

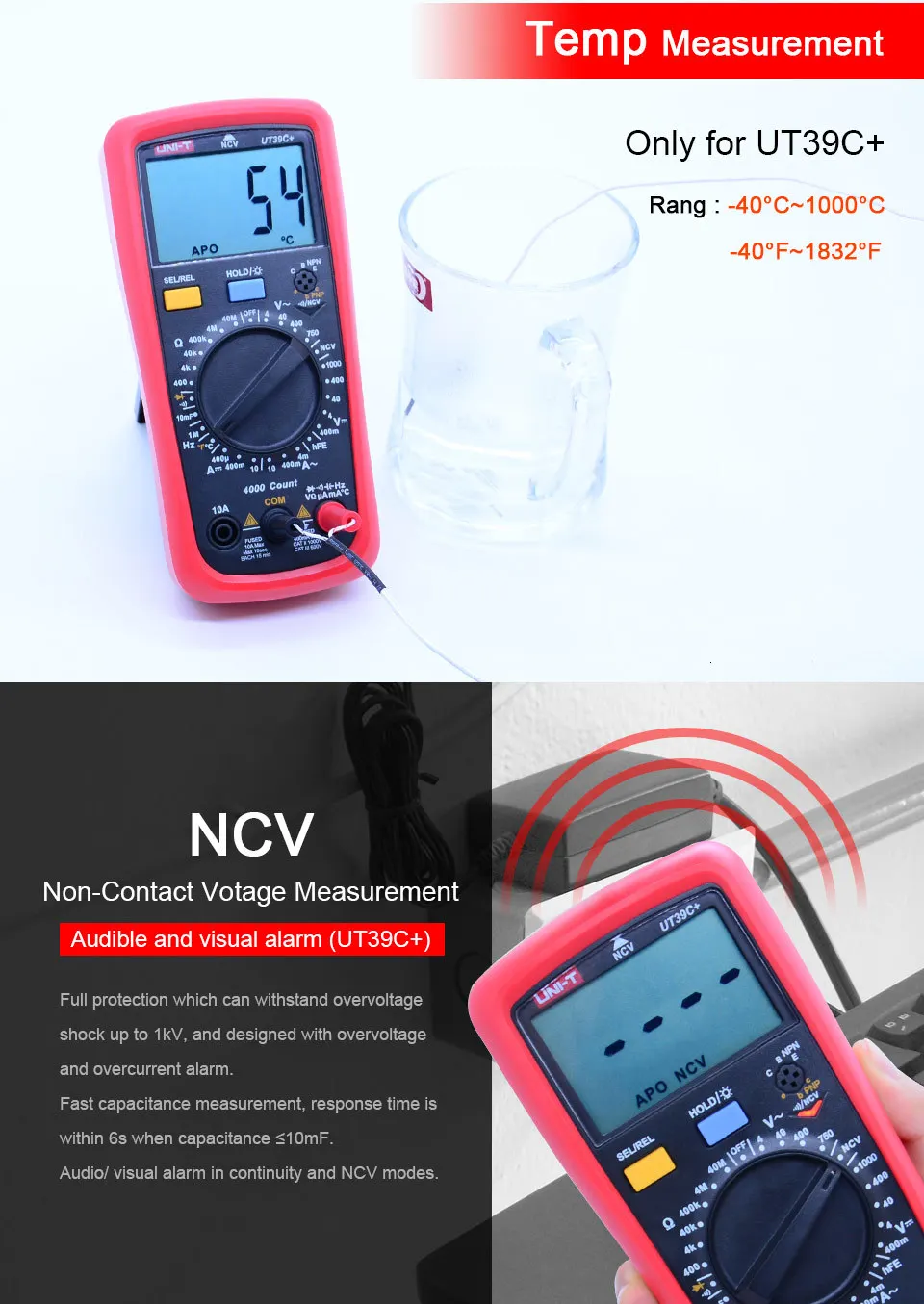

  Temperature	-40°~1000°		±(1%+4)
  	-40°~1832°		±(1.5%+5)

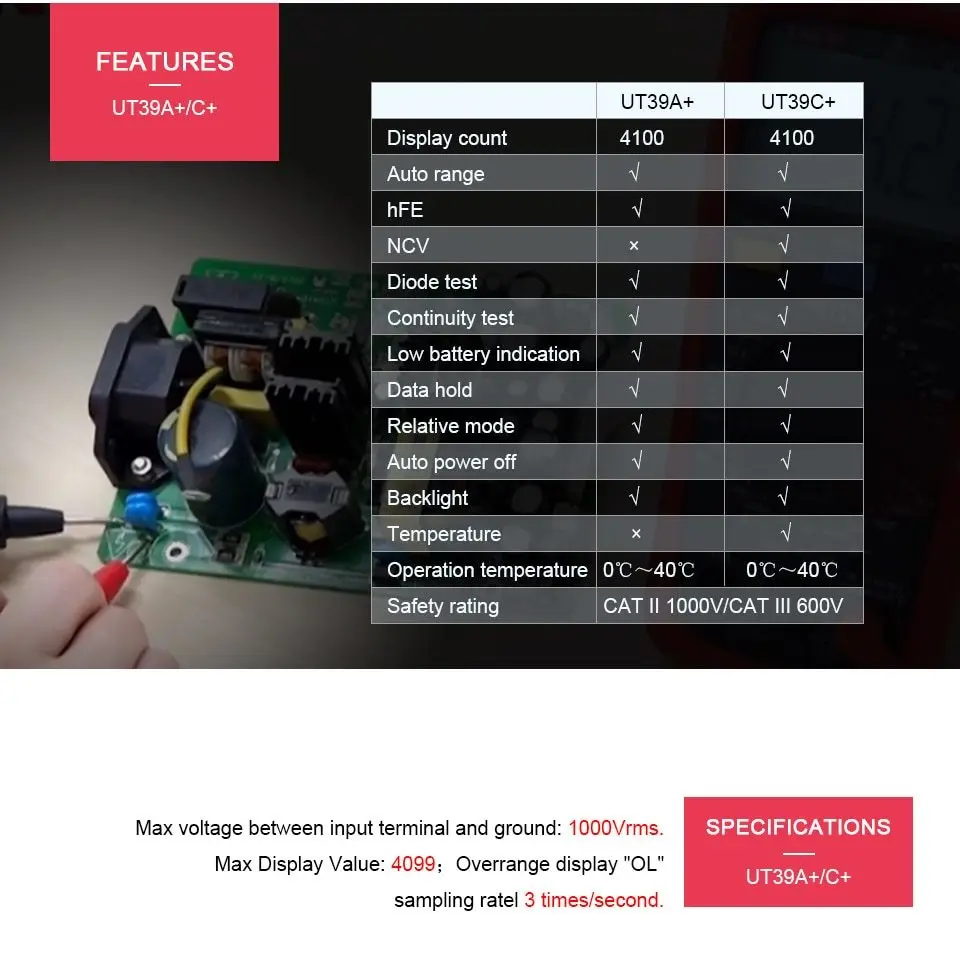

  Features
  Display count		4000	4000
  Transistor hFE		√	√
  NCV			√
  Diode		√	√
  Frequency response	40Hz~400Hz	√	√
  Range selection		Manual	Manual
  Continuity test		√	√
  Data hold		√	√
  Backlight		√	√
  Low battery indication		√	√
  Auto power off		√	√

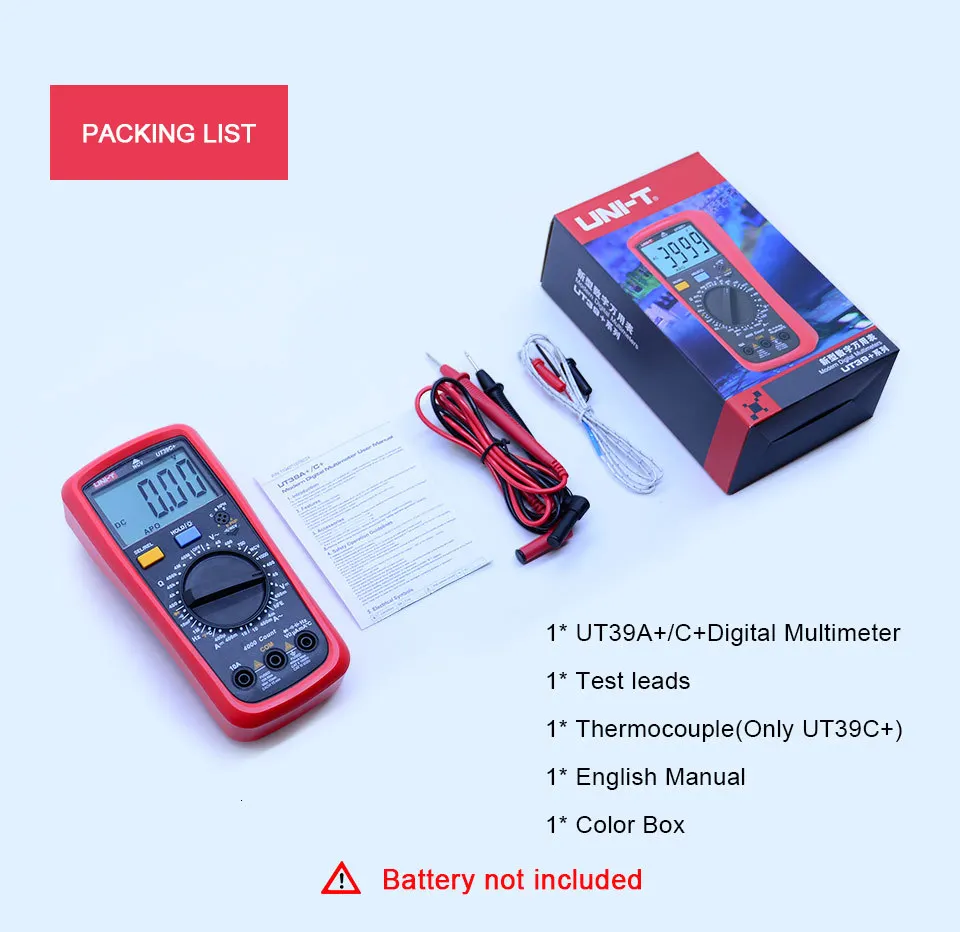

  Package contents for UT39C+:
  1*Digital Multimeter
  1*Color box
  1*Multimeter pen
  1*Thermocouple
