Emergency Push Button With Twist-to-Reset

Out of stock
Out of stock



Name Rotating reset emergency stop button
Type specification XB2BS542
Products Standard IEC 947-5-1
Rated insulated Voltage 600V
Rated impulse withstand voltage 6kV
Stipulated hot current Ith 10A
Use category AC-15 DC-13
Rated voltage AC 240/380 V DC 125/250 V
Rated Current 3/1.9 A 0.55/0.27 A
Rated frequency 50/60Hz
Contact resistance ≤50mΩ
Insulated resistance ≥50MΩ
Environment temperature -25~70℃
Storage temperature -40~70℃
Relative humidity ≤90%
Electrical life AC More than 100 thousand times
Mechanical life 300 thousand times
Operation type Latching

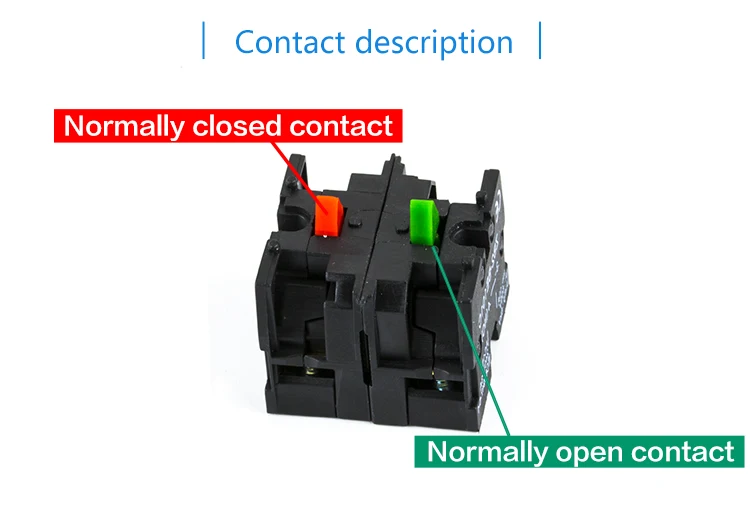

Contact configuration 1NO,1NC,1NO1NC,2NO2NC,3NO3NC
Head shape mushroom
Crust material plastic
Contact material Silver alloy
Mounting hole size 22mm
