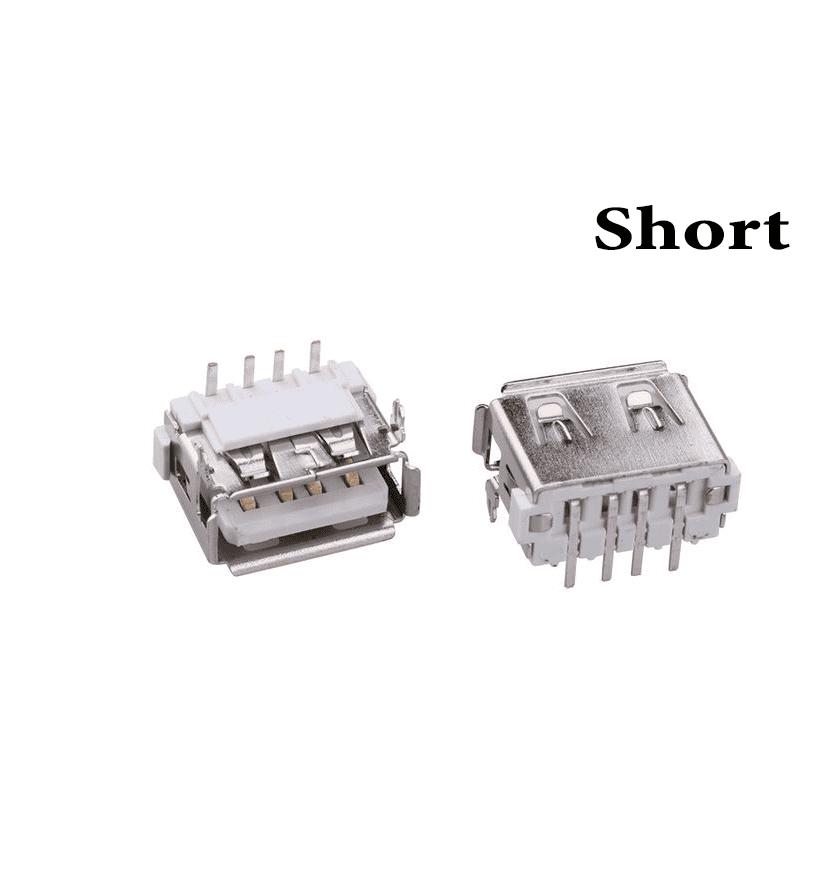

Female USB Connector Type A – Dip Short

In Stock
In Stock
Other people want this. 1 people have this in their carts right now.
Categories: ,


Product Specification:


Current Rating 1.5A/Contact Terminal
Voltage Rating 30V DC
Contact Resistance 30 Milliohms MAX
Dielectnic Withstanding Voitage 500 Vac Sea Levol
Lusulation Resistance 1000MEGA ohms MIN
Contact Copper Alloy
Terminal Retenion 1.2kgf(MIN)
Material Housing UL94v-0,PBT
Finish Shell Nickel Plating
Material Shell Copper Alloy C2680
Unmate Force 1.02kgf(MIN)
Finish Contact Piated Gold in Mating Area

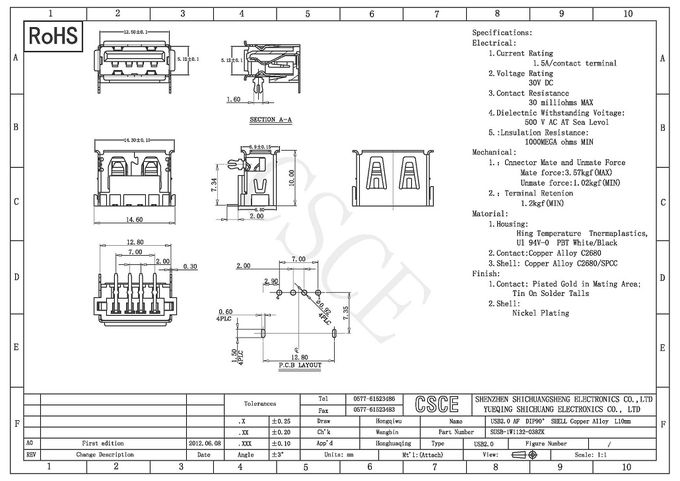

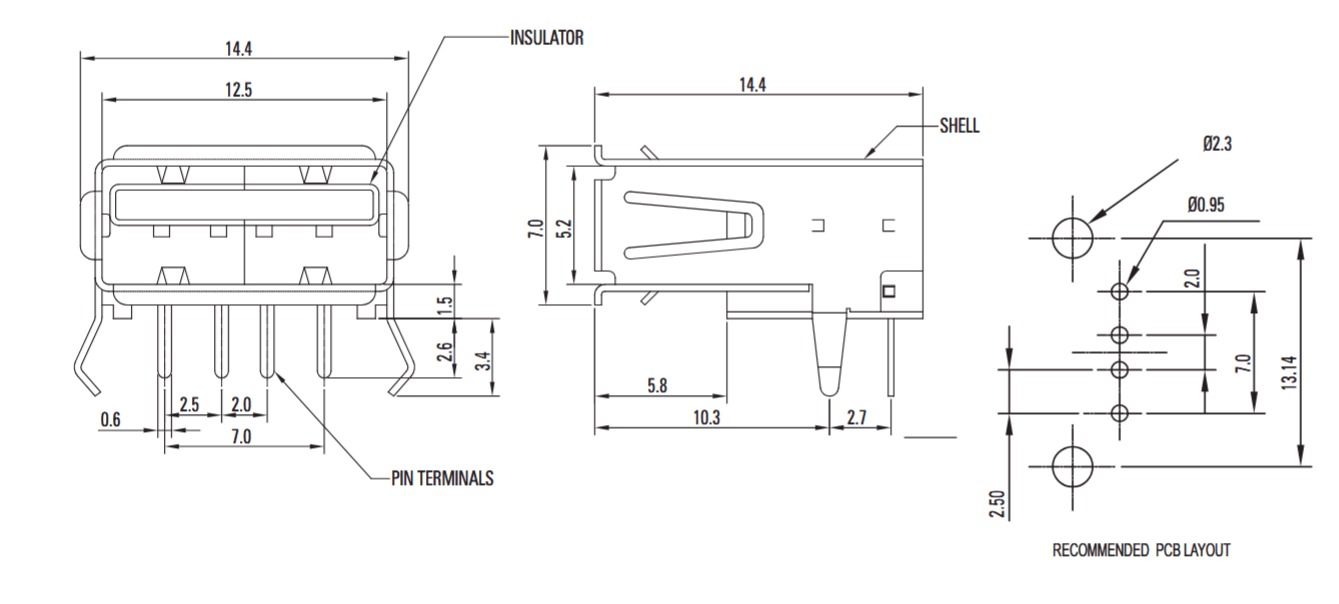

Product Drawing:


USB 2.0 Connector DIP 90 Degree type A short body 4 Pin USB Female Jack
