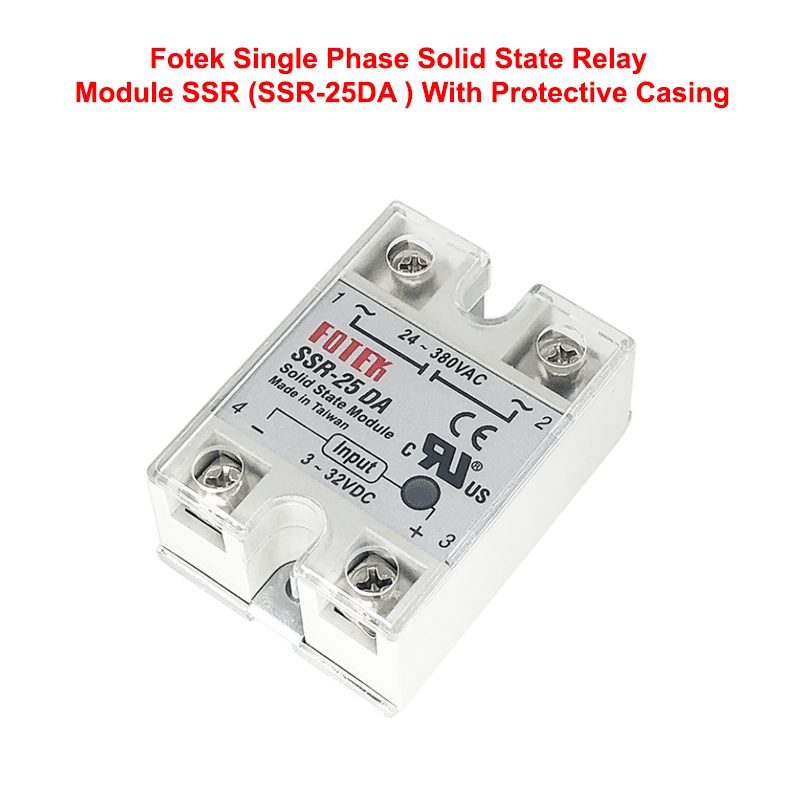

Fotek Single Phase Solid State Relay Module SSR (SSR-25DA ) With Protective Casing
In Stock
EGP110.00
In Stock
Add to WishlistRemove from Wishlist
Add to Wishlist
Description
Basic Info.
Model NO.SSR-25DA
Protective Characteristics Sealed Relay
Load Current 25A
Weight 105g
Load Voltage 24-380VAC
Input 3-32VDC
Specification 25A
Product Description
FOTEK Single phase Solid State Relay Module
Features:
* High dielectric strength over 4KV
* High isolation strength over 100MΩ/500VDC
* With over heat protection circuit (120ºC)
* High surge current sustenance
* High surge voltage sustenance
* Conformity with EN60947-4-3 and EN60950
Guide of Model:
Technical parameters:
| Type |
Terminal Type
|
||
| Model |
SSR-10DA
|
SSR-25DA
|
SSR-40DA
|
| Rated Load Current |
10A
|
25A
|
40A
|
|
Input Data
|
|||
| Operating Voltage |
3~32VDC
|
||
| Min. ON/OFF Voltage |
ON>2.4V , OFF <1.0V
|
||
| Trigger Current |
7.5mA / 12V
|
||
| Control Method |
Zero Cross Trigger
|
||
|
Output Data
|
|||
| Operating Voltage |
24~380VAC
|
||
| Min. Block Voltage |
600VAC (Repetive)
|
||
| Voltage Drop |
1.6V / 25°C
|
||
| Max. One Cycle Surge |
135A
|
275A
|
410A
|
| Leakage Current |
3.0mA
|
3.0mA
|
3.0mA
|
| Response Time |
ON<10ms , OFF<10ms
|
||
|
General Data
|
|||
| Dielectric Strength |
Over 2.5KVAC / 1min.
|
||
| Isolation Strength |
Over 50MΩ / 500VDC
|
||
| Operating Temperature |
-20°C ~ + 80°C
|
||
| Housing Material |
Intensive ABS
|
||
| Weight |
Appr. 105g
|
||
Outline dimension & Connection:
Application:
