IC socket 24Pin (12+12 )

In Stock
In Stock

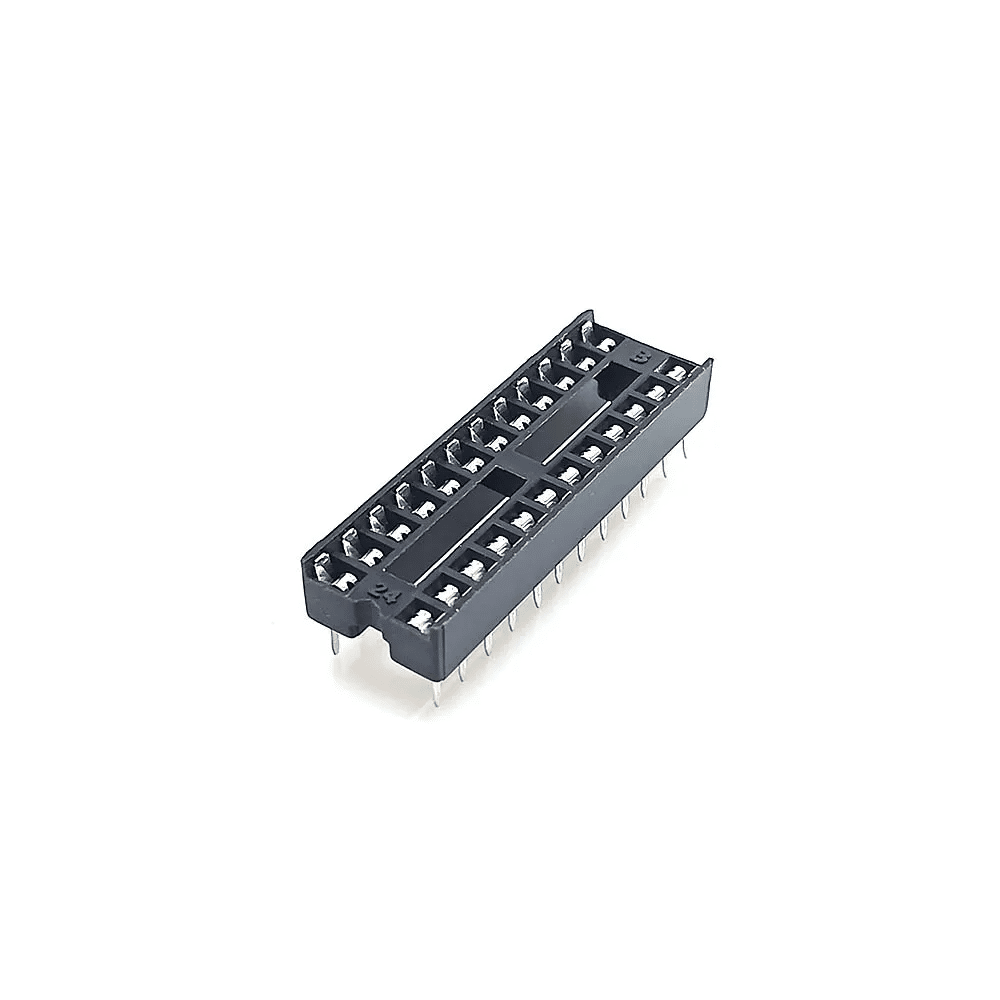

24 Pin IC Base

24 Pin IC Socket base adaptor is a 24 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. The IC base is for a narrow IC.

  1. Product type: IC base
  2. Function: to easy insert, remove and reinsert the programmable chips and ICs in the PCD and neglect the component damage because of heat during soldering
  3. Number of pins: 24


Current Handling Capacity (A) 1
No. of Contact Points 24
Operating Temperature Range (°C) -25 to 85
Color Black

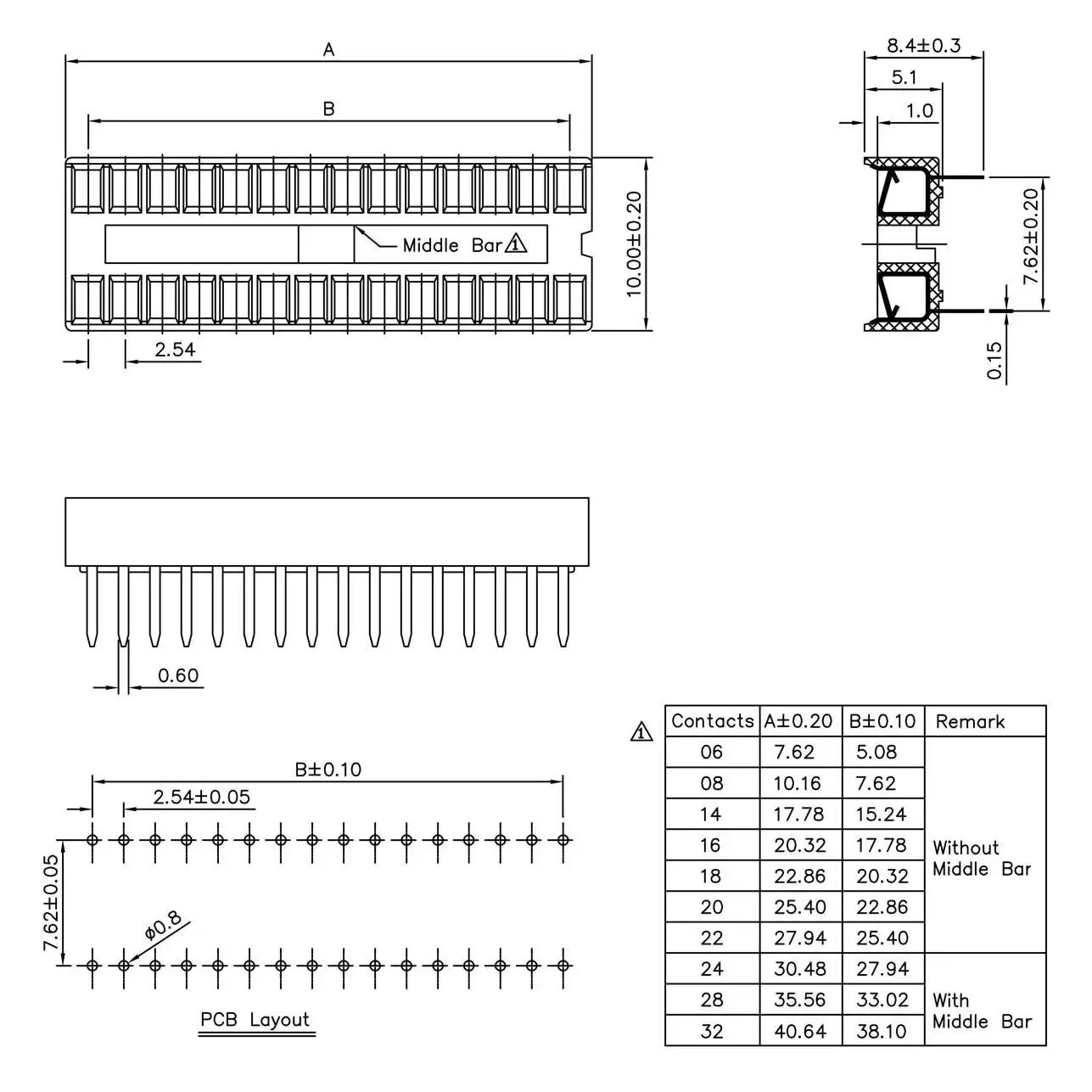

Length (mm) 30
Width (mm) 10
Height (mm) 4.5
