IDC10 Male Polarized (FC10-PCB) Right Angle

Description

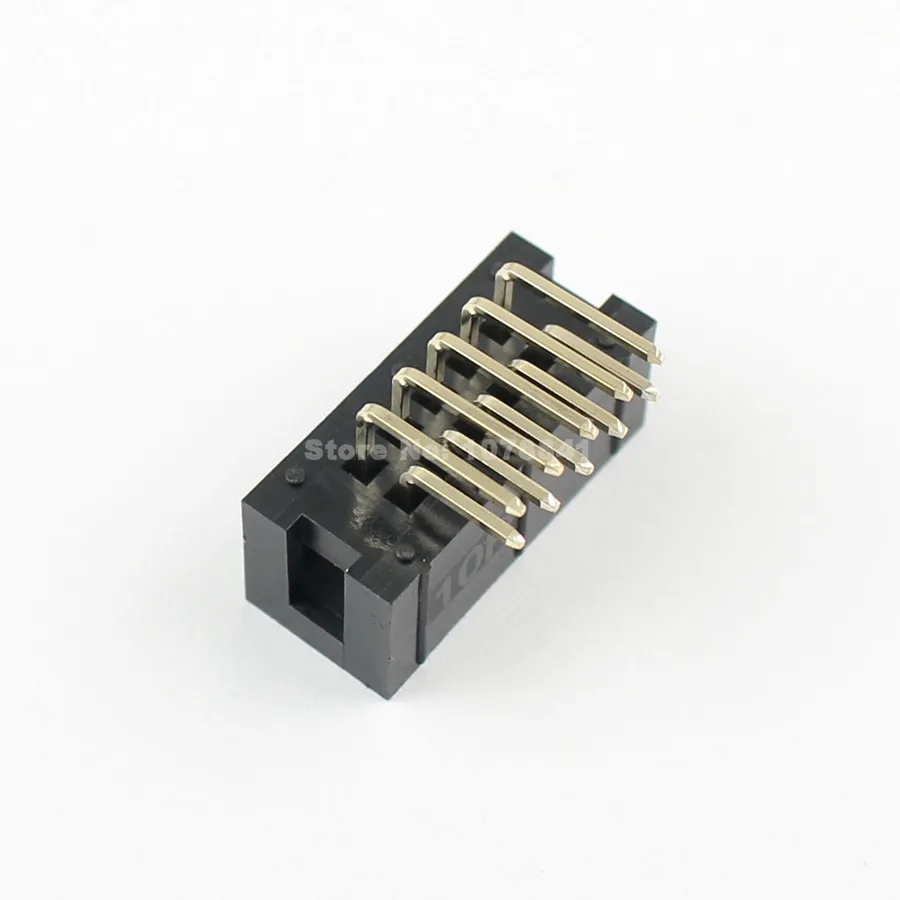

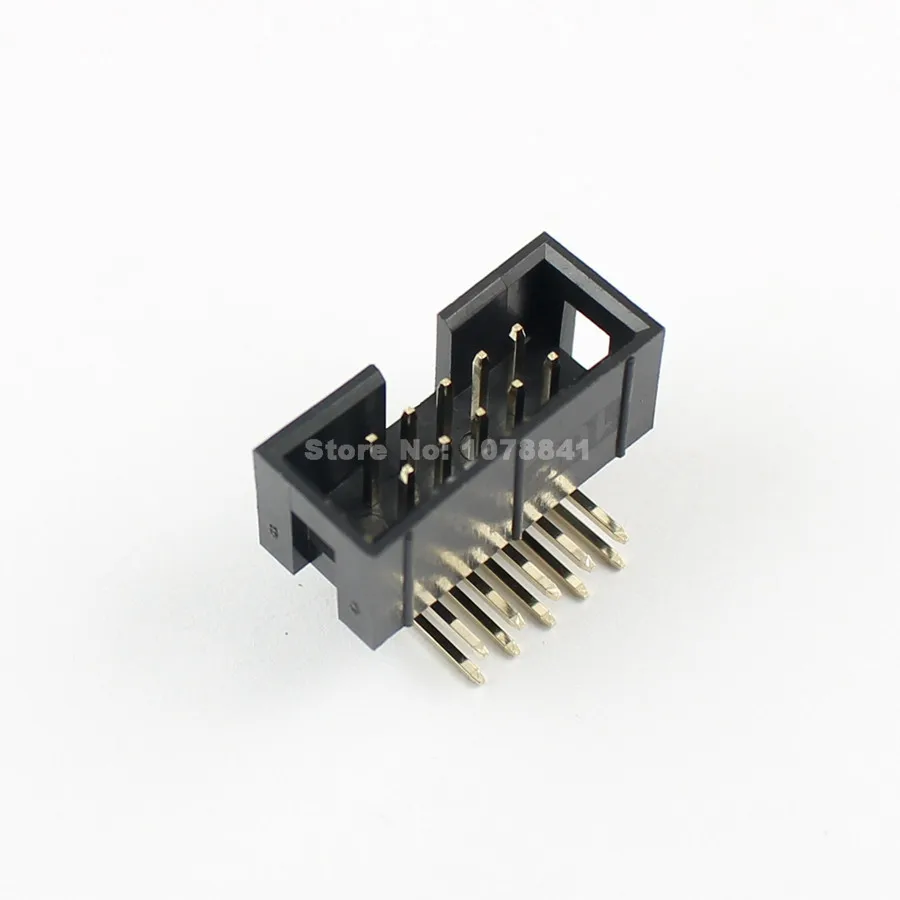

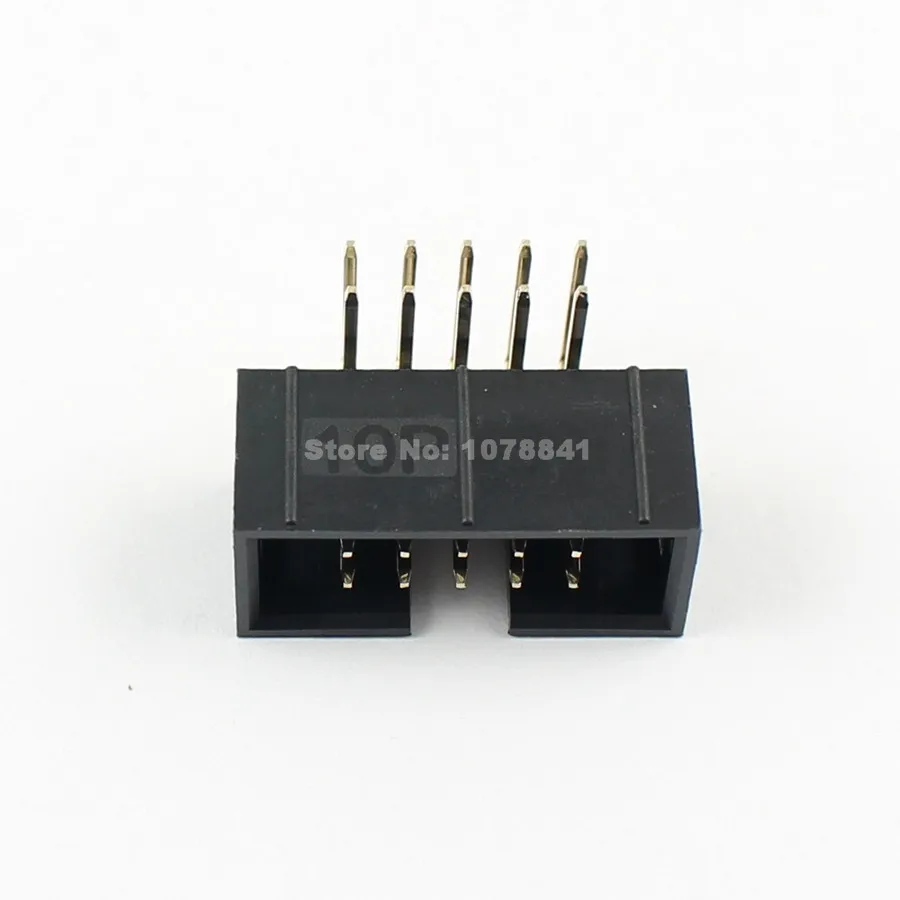

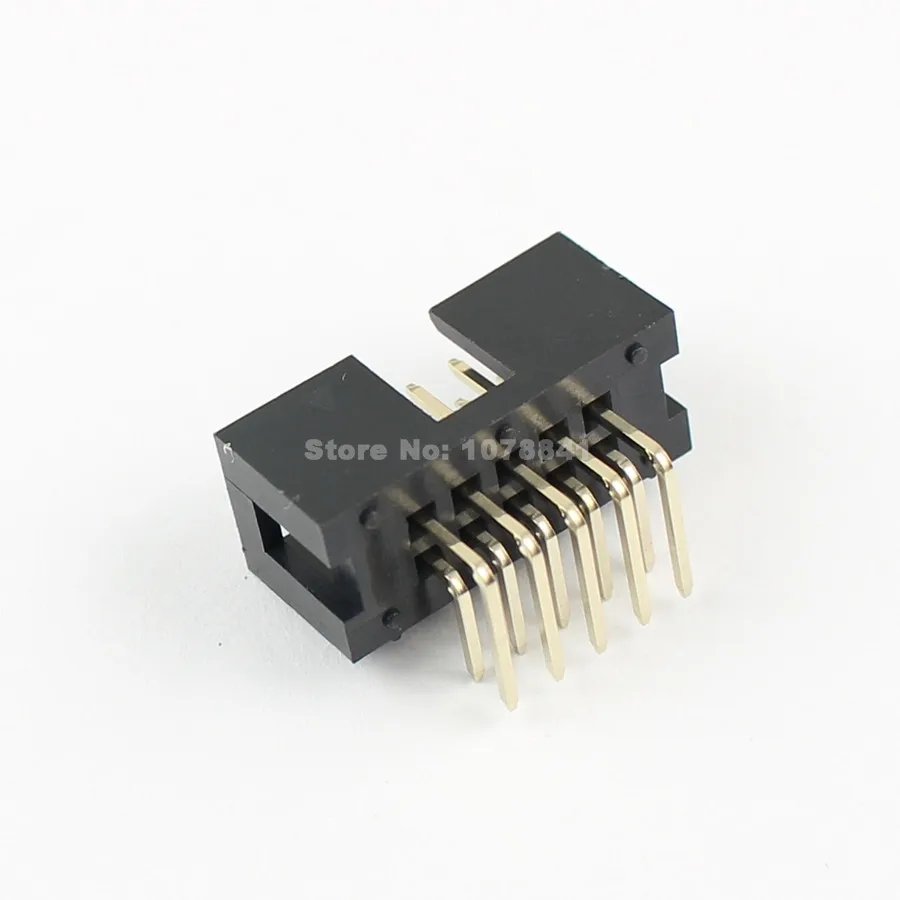

 2.54mm 2×5 Pin 10 Pin Right Angle Male Shrouded IDC Box Header Connector

     Features:

• BRAND NEW!

• Quantity: 100pcs

• Pitch: 2.54mm.

• Gender: Male

• Number of Pins: 2x5Pin

• Body Orientation: Right Angle

• Type of Row: Double-Row

      Specifications:

• Current Rate:3 Amps

• Insulator Resistance:1000 Megohms Min

• Contact Resistance: 20 Megohms Max

• Withstanding Voltage: AC 1000V

• Operation Temperature: -40 ~ +105
