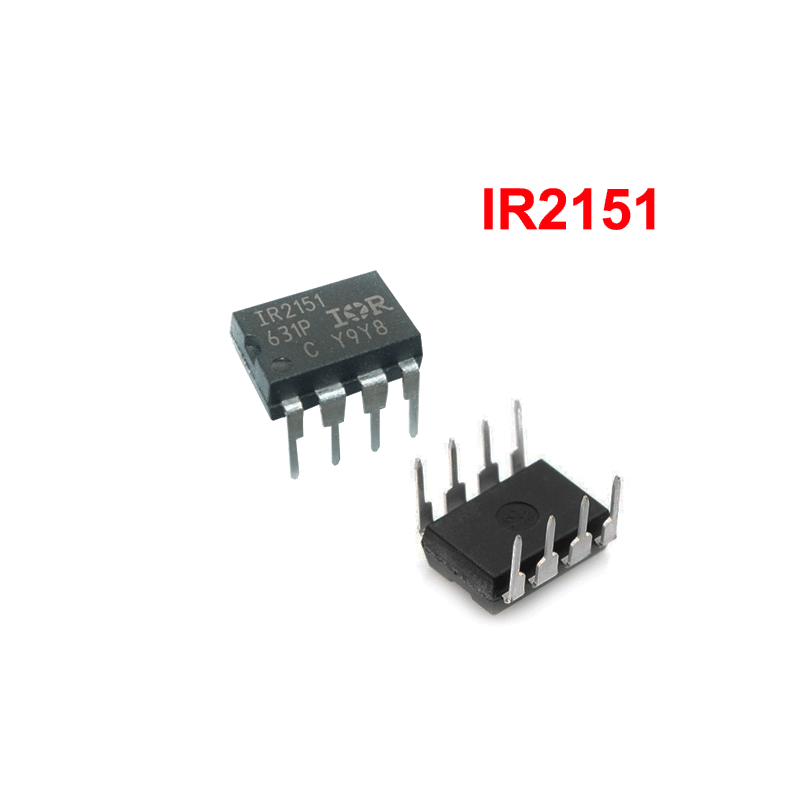

IR2151 (Self-Oscillating Half-Bridge Driver)

In Stock
EGP45.00
In Stock

Description

Pinouts :
IR2151 datasheet

Description :

The IR2151 is a high voltage, high speed, self-oscillating power MOSFET and IGBT driver with both high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

The front end features a programmable oscillator which is similar to the 555 timer. The output drivers feature a high pulse current buffer stage and an internal deadtime designed for minimum driver cross-conduction.

Features

•  Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

• Undervoltage lockout

• Programmable oscillator frequency

Datasheet PDF Download :
IR2151 pdf
