25 V dual low-side gate driver IC

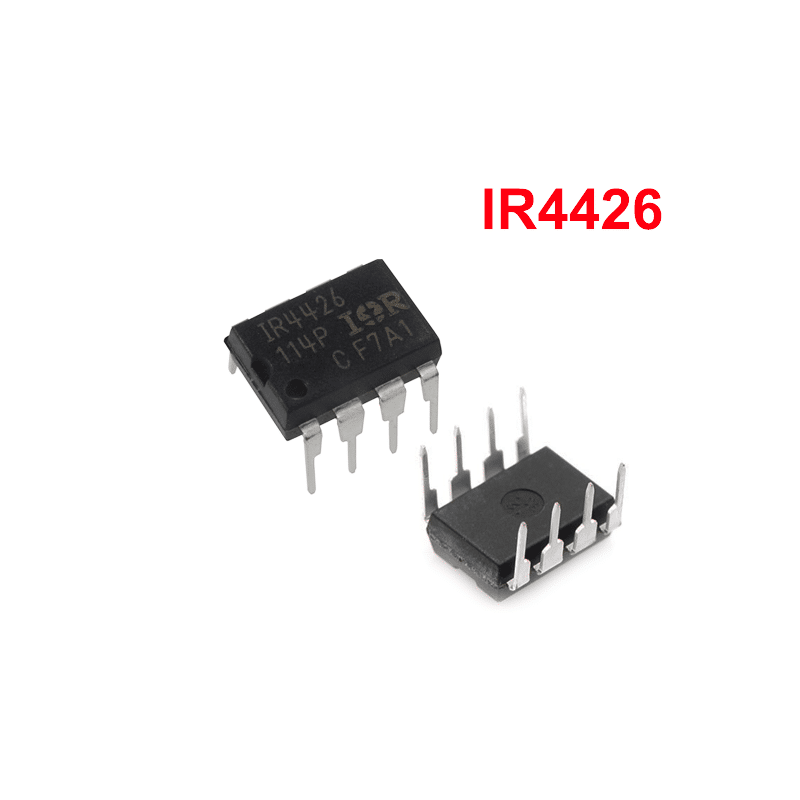

IR4426 (Dual Low-Side Gate Driver)
In Stock
EGP35.00
In Stock
Add to WishlistRemove from Wishlist
Add to Wishlist
Description
Dual Low Side Driver IC with typical 2.3 A source and 3.3 A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in x8 Lead SOIC.
Summary of Features
- Gate drive supply range from 6 to 20 V
- CMOS Schmitt-triggered inputs
- Matched propagation delay for both channels
- Outputs out of phase with inputs (IR4426)
- Outputs in phase with inputs (IR4427 Output OUTA out of phase with input and OUTB in phase with input (IR4428
Applications
- Home appliances
- Motor control and drives
- Power tools
- Solutions for solar energy systems
- Power Supplies
- Uninterruptible power supply (UPS)
Parametrics
| Parametrics | IR4426 |
|---|---|
| Channels | 2 |
| Configuration | Low-side |
| Input Vcc min max | 6 V 20 V |
| Isolation Type | Non-isolated |
| Output Current (Source) | 2.3 A |
| Output Current (Sink) | 3.3 A |
| Turn Off Propagation Delay | 65 ns |
| Turn On Propagation Delay | 85 ns |
| Voltage Class | 25 V |
