Name: OLED LCD LED Display Module White (128X64 - 1.3 inch)
SKU: 58551
Availability: InStock

OLED LCD LED Display Module White (128X64 – 1.3 inch)

In Stock

EGP300.00

In Stock

Other people want this. 16 people have this in their carts right now.

Description

Product Description

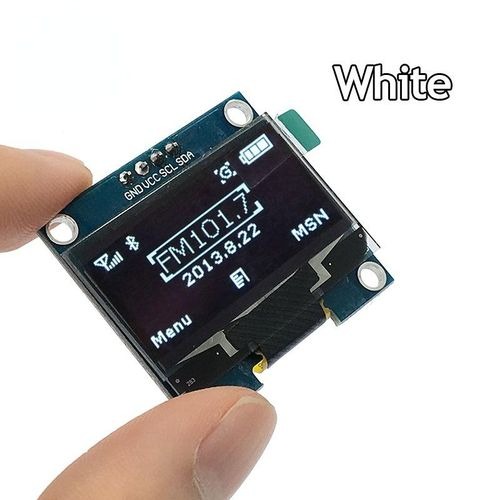

1.3 inch OLED screen with black and white or black and blue color display
128×64 resolution for clear display and high contrast
Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required
With IIC bus, only a few IOs can be used to light up the display
Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
Military-grade process standards, long-term stable work
Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
Provide underlying driver technical support

Product Parameters

Name	Parameter
Display Color	white/blue
SKU	MC130GW/MC130GB
Screen Size	1.3 inch
Screen Type	OLED
Driver IC	SH1106
Resolution	128*64 (Pixel)
Module Interface	IIC interface
Active Area	29.42×14.7 mm
Touch Screen Type	No touch screen
Touch IC	No IC

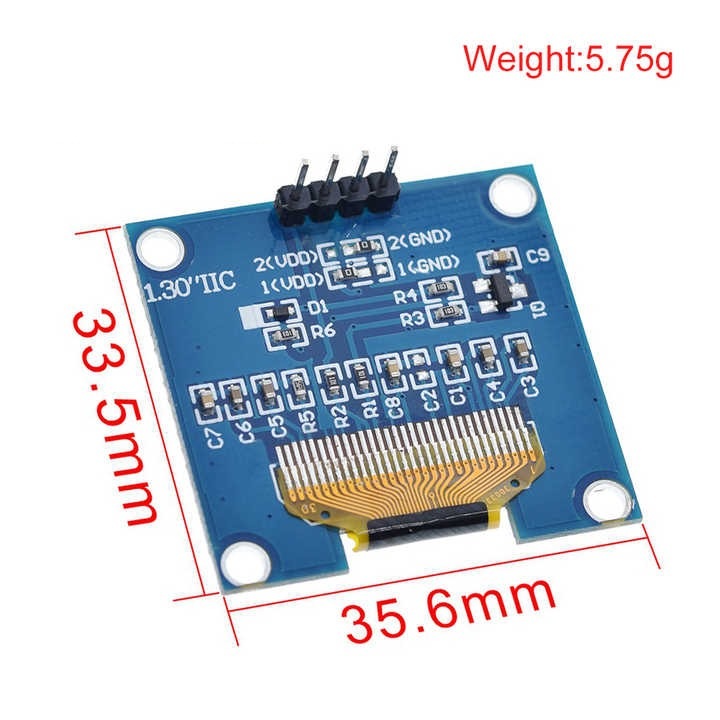

Module PCB Size	33.50×35.40 mm
Visual Angle	>160°
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	10g
