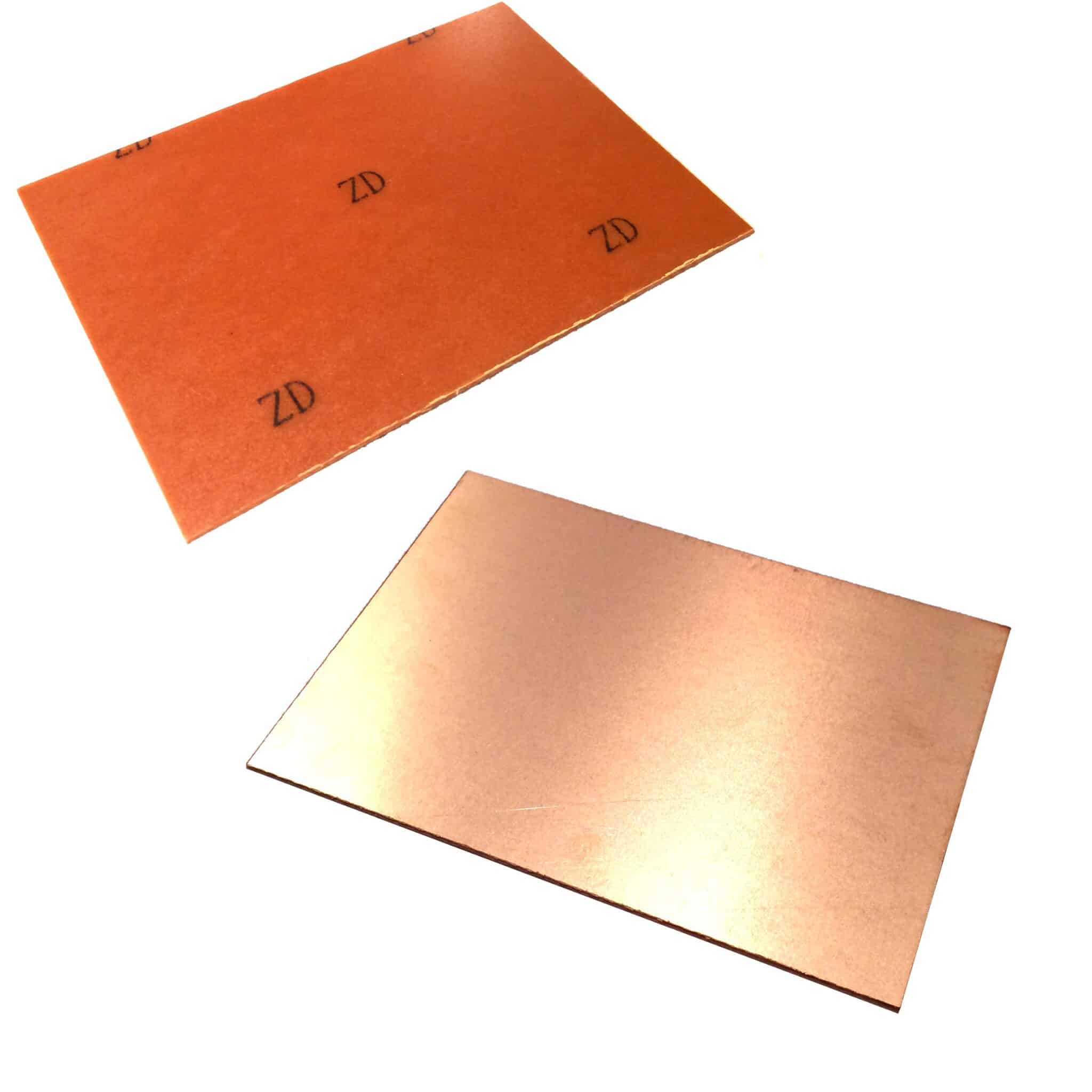

PCB Single Layer FR2 (20x30Cm2)

Description

PCB Single Layer FR2 (20×30 cm²)

A PCB Single Layer FR2 (20×30 cm²) refers to a single-sided printed circuit board (PCB) made from FR2 material, with a size of 20×30 cm². It is typically used in various electronic and electrical applications for mounting components and establishing electrical connections on a circuit.

Key Features of PCB Single Layer FR2 (20×30 cm²):

1. Single Layer (Single-Sided):
   • A single-layer PCB, also known as a single-sided PCB, means that all of the electrical traces are located on one side of the board. Components are placed on the other side, making it a simple design compared to double-sided or multi-layer PCBs.
   • This simplicity generally makes single-layer PCBs cost-effective and easy to manufacture, ideal for basic electronic projects and prototypes.
2. FR2 Material:
   • FR2 stands for Flame Retardant 2, which is a type of phenolic resin-based material used as the substrate for the PCB. It is commonly used in low-cost applications.
   • FR2 is generally cheaper and less durable than higher-end materials like FR4, but still provides basic mechanical strength, insulation, and flame resistance for less demanding applications.
   • The FR2 material has relatively lower thermal stability and mechanical strength compared to FR4 but is sufficient for many basic electronic devices that do not require high performance or temperature tolerance.
3. Dimensions (20×30 cm²):
   • The dimensions of 20 cm x 30 cm refer to the size of the PCB, specifically a board that is 20 cm long and 30 cm wide. This size is relatively medium and often used for projects like consumer electronics, prototyping, and development boards.
   • A 20×30 cm² PCB provides ample space for placing components while maintaining a manageable form factor.
4. Single-Sided Traces:
   • The single-sided PCB means there are no traces or connections on the back of the board, making it suitable for simple designs and easy assembly. However, this also means the available surface area for components and routing is limited.
5. Application Range:
   • FR2 PCBs are used in low-cost consumer applications and educational projects, especially in prototyping, hobbyist electronics, and test equipment. They are often used when the performance requirements are not as stringent, and cost reduction is a priority.

Applications of PCB Single Layer FR2 (20×30 cm²):

1. Prototyping and DIY Electronics:
   • Ideal for prototyping circuits and small-scale DIY projects where a low-cost PCB is needed. The single-layer design and medium size make it easy to create experimental setups.
2. Consumer Electronics:
   • Used in low-cost consumer products where performance and durability are not as critical, such as toys, gadgets, and basic household appliances.
3. Educational Kits and Learning Projects:
   • Commonly used in electronics educational kits and learning platforms due to its affordability, simplicity, and ease of use for beginners and students.
4. Test Circuits:
   • Single-layer FR2 PCBs are also useful for test circuits or proof-of-concept designs, where the primary focus is on functionality and not necessarily on long-term performance.
5. Low-Power Electronics:
   • Suitable for low-power applications where temperature stability, mechanical strength, and electrical performance do not need to be as high as in industrial-grade products.
6. Simple Control Systems:
   • Used in basic control systems such as microcontroller boards, LED displays, or small signal conditioning circuits where the cost and ease of production are more important than the operational demands.

Advantages of PCB Single Layer FR2 (20×30 cm²):

1. Cost-Effective:
   • The FR2 material and single-layer design make this PCB inexpensive to produce, making it an ideal choice for budget-conscious projects or prototypes.
2. Simple to Manufacture:
   • The single-sided nature of the PCB makes it easier and faster to manufacture, with fewer complexities in design and assembly compared to multi-layer PCBs.
3. Easy to Assemble:
   • Since the components are typically only mounted on one side, the assembly process is straightforward. It is easier to solder the components, making it ideal for hobbyists and DIY enthusiasts.
4. Good for Low-Complexity Circuits:
   • Suitable for low-complexity circuits or projects that do not require high-speed performance or high-frequency operation.
5. Space for Components:
   • The 20×30 cm² size provides adequate space for placing components, routing traces, and connecting parts without too much overcrowding.

Disadvantages of PCB Single Layer FR2 (20×30 cm²):

1. Limited Durability:
   • FR2 is not as durable or thermally stable as other materials like FR4. This limits its use in high-performance or high-temperature applications.
2. Limited to Simple Circuits:
   • Since it is a single-layer PCB, it is not suitable for high-density designs that require multiple layers for complex routing. The design possibilities are constrained compared to multi-layer PCBs.
3. Lower Mechanical Strength:
   • FR2 material has lower mechanical strength than FR4, which makes it prone to cracking or warping under mechanical stress or heat over time.
4. Poor for High-Frequency Applications:
   • FR2 does not have the same electrical performance as FR4, especially for high-frequency or high-speed circuits. It may suffer from signal integrity issues in RF or high-speed digital applications.
5. Limited Heat Resistance:
   • FR2 has a lower maximum operating temperature compared to FR4, which limits its use in high-temperature environments or with components that dissipate significant heat.
