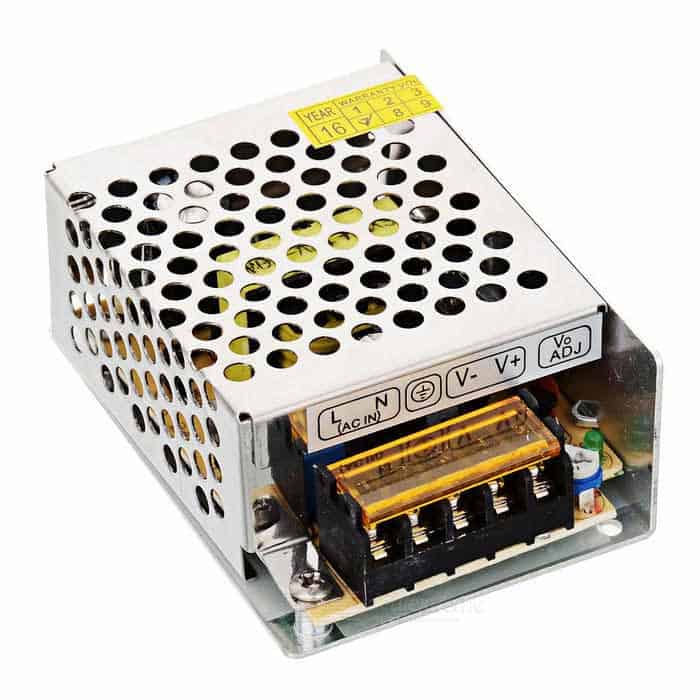

Power Supply (12VDC -2A)

In Stock
In Stock
Categories: ,


1, Universal AC input/Full range    /   AC input range selectable by switch
2, Built-in active PFC function, PF>0.94
3, Protections: Short circuit / Overload / Over Voltage / Over Temperature
4, cooling by free air convection
5, Withstand 300vac surge input for 5 second
6, Output voltage programmable from 20-110% by 1~5.5VDC external control signal
7, Built-in constant current limiting circuit
8, 100% full load burn-in test
9, LED indicator for power on
10, No load power consumption<0.5W
11, All using 105℃ long life electrolytic capacitors
12, High operating temperature up to 70
13, Withstand 5G vibration test
14, Low cost, High efficiency, long life and high reliability

15, One year warranty

DC voltage: 12.0V
Rated Current:2A
Rated Power:24W
Voltage ADJ. Range:10.8-13.2V

Setup, Rise Time: 1000ms, 30ms/230VAC

Voltage Range: 85-264VAC     120-370VDC
Frequency Range: 47-63Hz
Efficiency (Typ.): 72%, 80%, 85%
