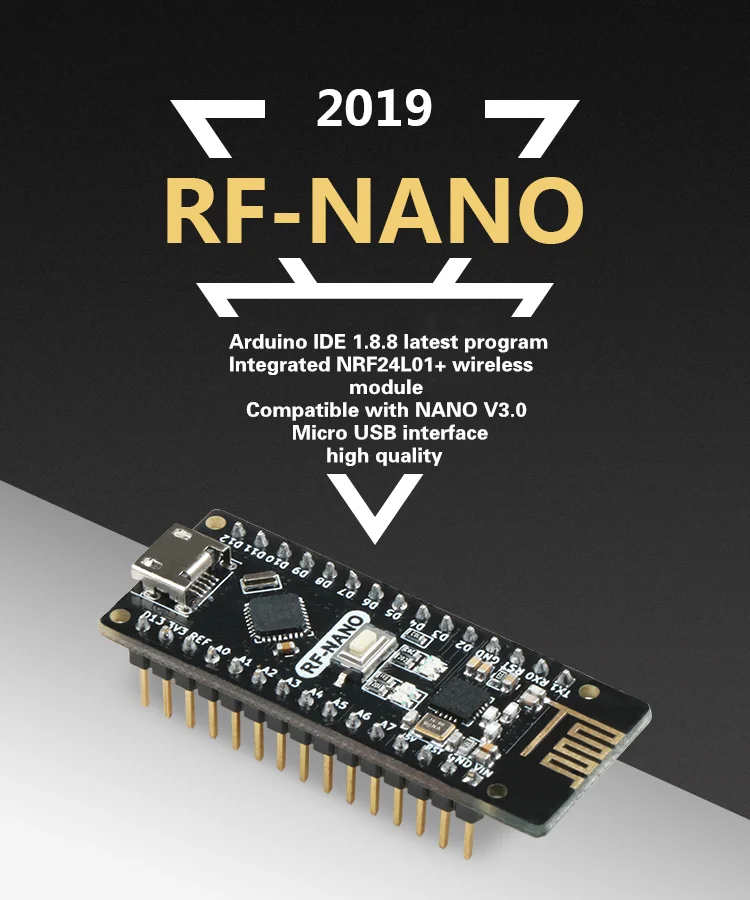

RF-Nano Integrated NRF24L01 Wireless Module

Description

RF-Nano for Arduino Nano V3.0 Micro USB Nano Board ATmega328P QFN32 5V 16M CH340 Integrate NRF24L01+2.4G Wireless CH340

RF-NANO product parameters 1. MCU MCU ATmega328P 2.NRF24L01+2.4G wireless communication 3. Architecture AVR 4. Working voltage 5V 5. Flash 32KB, 2KB for boot loader 6.SRAM 2KB 7. Clock speed 16mhz 8. Analog I/O pins 8 9.EEPROM 1KB 10. DC current 40ma (I/O pin) per I/O pin 11. Input voltage 7-12V 12. Digital I/O pins 22 13. PWM output pin 6 14. Power consumption 19ma 15.PCB size 48*18mm 16. Net weight: 7g product description BLE-Nano is a revolutionary product developed by our company for the makers based on the Bluetooth 4.0 protocol combined with the Arduino Nano. The working frequency band is 2.4GHZ range, the modulation mode is GFSK, the maximum transmission power is 0db, and the maximum transmission distance is 50m. It adopts imported original TI chip design, and supports users to modify device name, master-slave mode, transmit power, pairing password, etc. through AT command. Instructions are flexible and convenient to use.
