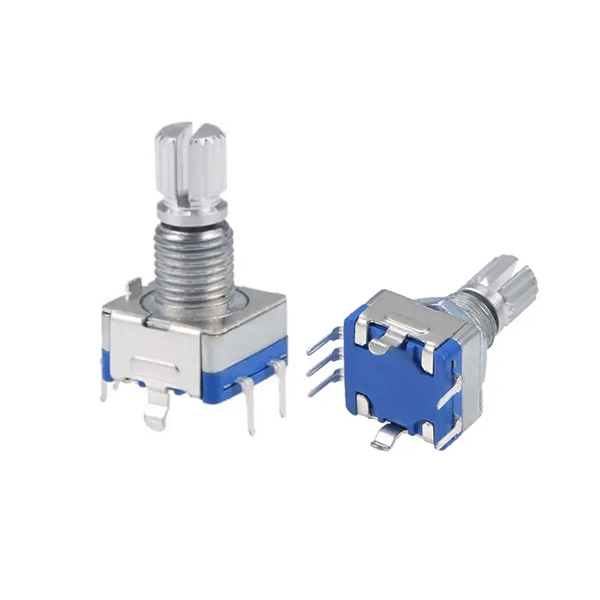

Rotary Encoder With Push Button Switch EC11 (5pin-15mm)

In Stock
In Stock


A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals.

Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices .


  • continuous rotary encoder switchwith built in push button
  • Can be used for data entry as with modern in-car CD players, for volume & on/off control or data selection via LCD display
  • Simple to use with PIC or ATMEL microcontrollers (Arduino like Microcontrollers).

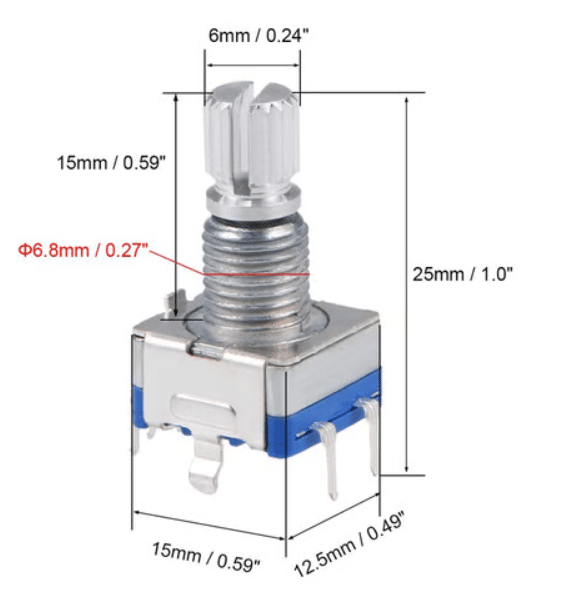

  • Rotary Shaft Length: Approx. 7mm
  • Shaft Full Length: Approx. 15mm
  • Shaft Diameter: Approx. 6mm
  • Output: 2-bit gray code
  • Closed Circuit Resistance: 3 ohms maximums
  • Rating: 10 mA @ 5 VDC
  • Operating Temperature Range: -30 to 70 degrees Celsius
  • Storage Temperature Range: -40 to 85 degrees Celsius
  • Rotational Life: 30000 cycles minimum
  • Switch Life: 20000 cycles minimum
