Rotary Taper Potentiometer POT (100K Ohm) (RV24YN20SB104)
In Stock
EGP60.00
In Stock
Add to WishlistRemove from Wishlist
Add to Wishlist
Description

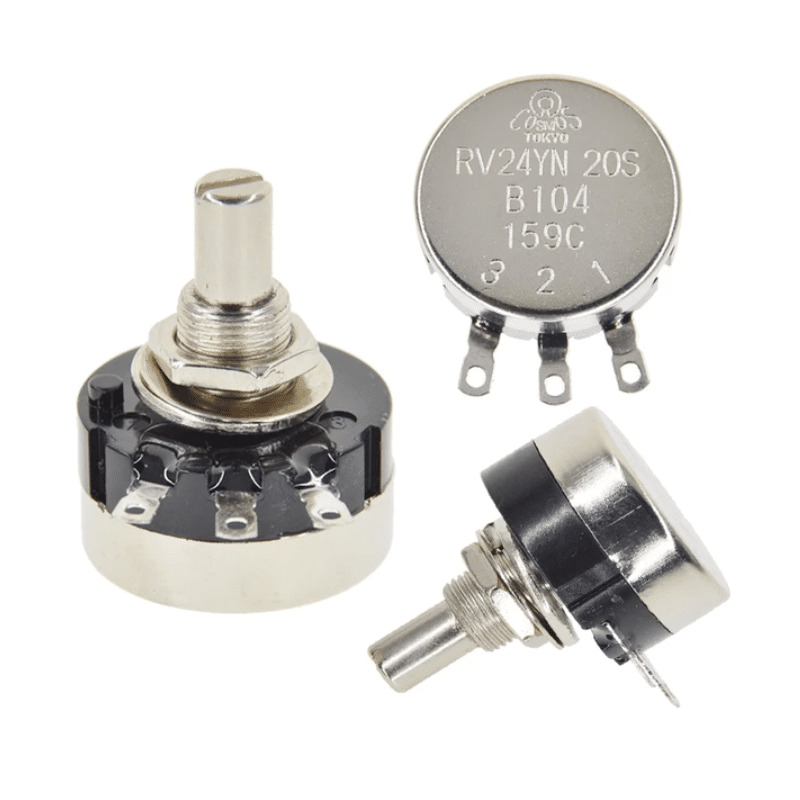

RV24YN 20S B104 100K Ohm Carbon Composition Rotary Taper Potentiometer Pots
Describe
100K Ohm Resistance, 10% Tolerance, 3 Terminals Potentiometer, come with a Dial and a Control Knob.
This Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment’s.
Product Name | Potentiometer |
Model | RV24YN-20S |
Resistance Value | 100K Ohm |
Rated power | 2W |
Type | Single Linear (Type B) |
Shaft Diameter | 6mm / 0.2″ |
Shaft Length | 10mm / 0.4″ |
Mounting Thread Diameter | 9mm / 0.35″ |
Base Diameter | 25mm / 0.1″ |
Total Height | 35mm / 1.4″ |
Material | Metal, Electronic Parts, Carbon Film |
Adjustment Type | Top Adjustment |
Package | 1 x Potentiometer |
Specification
Resistance Tolerance: +/-10%;
Rated power: 2W
Mechanical angle: 300°±5°
Electrical angle: 280°±10°
Rotational life: ≥15000 rpm
Potentiometer Body Size: 2. 5 x 1. 4cm/ 1 inch x 0. 55 inch (D*T)
Total Size: 40 x 38mm/1. 6 inch x 1. 5 inch(Dial D*H);
Color: Black, Silver Tone
Material: Metal + Plastic
Weight: 28g;
Package Content:
1*Potentiometer
