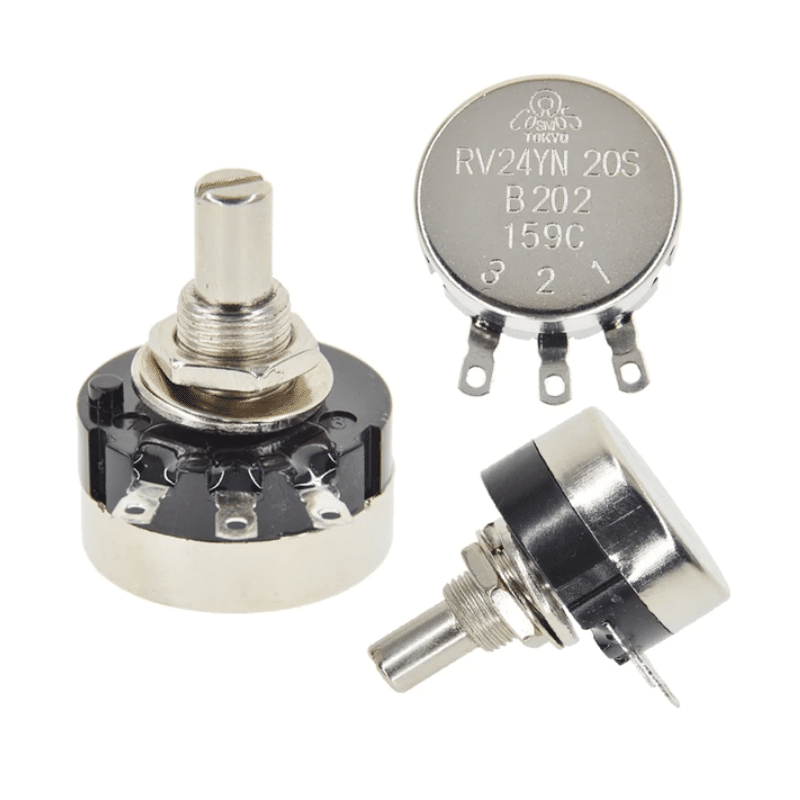

Rotary Taper Potentiometer POT (2K Ohm) (RV24YN20SB202)

Out of stock
EGP95.00
Out of stock
Category:

Description

RV24YN 20S B202 2K Ohm Carbon Composition Rotary Taper Potentiometer Pots

Describe
2K Ohm Resistance, 10% Tolerance, 3 Terminals Potentiometer, come with a Dial and a Control Knob.
This Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment’s.

Product Name Potentiometer
Model RV24YN-20S
Resistance Value 2K Ohm
Rated power 2W
Type Single Linear (Type B)
Shaft Diameter 6mm / 0.2″
Shaft Length 10mm / 0.4″
Mounting Thread Diameter 9mm / 0.35″
Base Diameter 25mm / 0.1″
Total Height 35mm / 1.4″
Material Metal, Electronic Parts, Carbon Film
Adjustment Type Top Adjustment
Package 1 x Potentiometer

Specification
Resistance Tolerance: +/-10%;
Rated power: 2W
Mechanical angle: 300°±5°
Electrical angle: 280°±10°
Rotational life: ≥15000 rpm
Potentiometer Body Size: 2. 5 x 1. 4cm/ 1 inch x 0. 55 inch (D*T)
Total Size: 40 x 38mm/1. 6 inch x 1. 5 inch(Dial D*H);
Color: Black, Silver Tone
Material: Metal + Plastic
Weight: 28g;

Package Content:
1*Potentiometer
