Round Rocker Switch With Lamp Red 3Pin

Description

Description

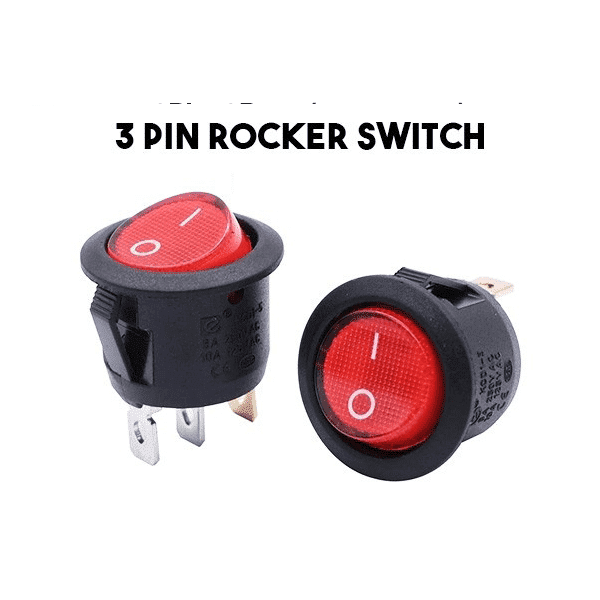

Miniature SPST neon illuminated rocker switches, available in red or green. Panel cut out Ø20mm. Fitted with 4.8mm blade style terminals. Snap-in mounting, easy to install into panel. Nylon Housing with silver plated brass terminals.

General Specification:

• Model: KCD1-105 Series.
• Product Name: Rocker Switch.
• Lamp Color: Red/Green.
• Pole: Single Pole Double Throw (SPDT).
• Position: On/Off 2-positions.
• Rated Voltage: 6A~250VAC/ 10A~125VAC.
• Overall Size: Ø23mm x 25mm.
• Mounting Type: Snap-In.
• Pin Spacing: 7mm.
• Color: Black.

Related Information:

• KCD1-105 Data Specs
