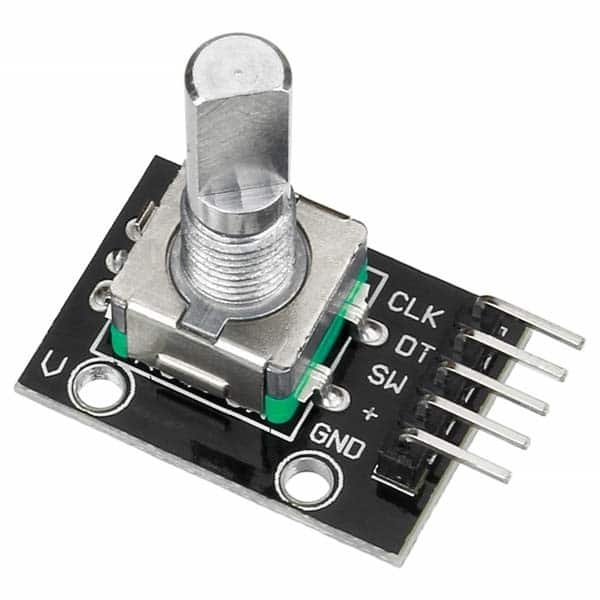

Shaft Rotary Encoder Sensor

In Stock
EGP85.00 EGP75.00
In Stock
Other people want this. 1 people have this in their carts right now.
Category:

Description

This rotation sensor or  incremental encoder (unlike potentiometer) has no limit for number of counting. It can also detect clockwise and counter clockwise rotation and that’s why it has 2 pins (SIA and SIB) for detecting rotation.

Basically, it translates the  rotary motion into a sequence of pulse signals. By comparing the square wave generated from each of the two pins you can determine the direction of rotation (as shown in Figure below) and by counting the number of pulses you can determine both the rotation angle and the RPM of the rotating shaft. A reset button is provided to reset the counter to zero state when needed to restart counting.

Features

  • Operating Voltage:                       3- 5V
  • NOF pulses per Cycle:             15 pulses
  • NOF Cycles:                               unlimited
  • Reset Button:                             reset counts to Zero
  • Rotation Direction Detection:   clockwise and counter clockwise
  • Dimensions:                               32 x 15 mm

PIN Definition

  • SIA:  Signal A (pulse)
  • SIB:  Signal B (pulse)
  • SW: State of reset pin (0 or 1)
  • GND: Ground signal
  • VCC: voltage (3 – 5V)
