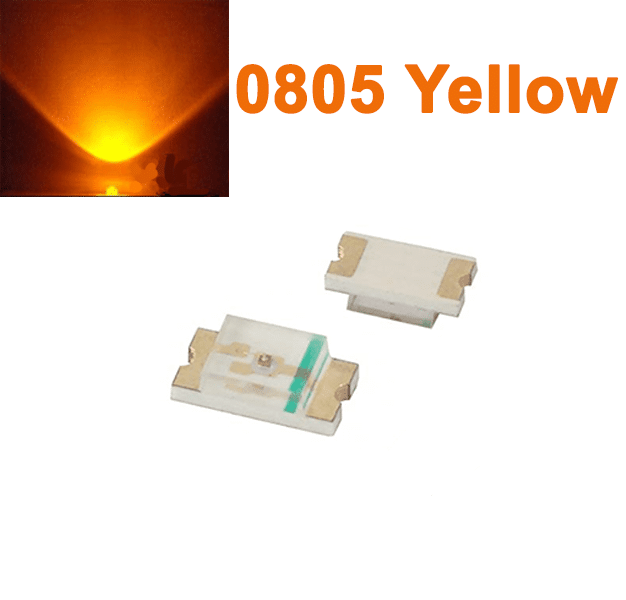

SMD LED 0805 Yellow (10Pcs)

Out of stock
EGP2.50
Out of stock
Categories: ,

Description

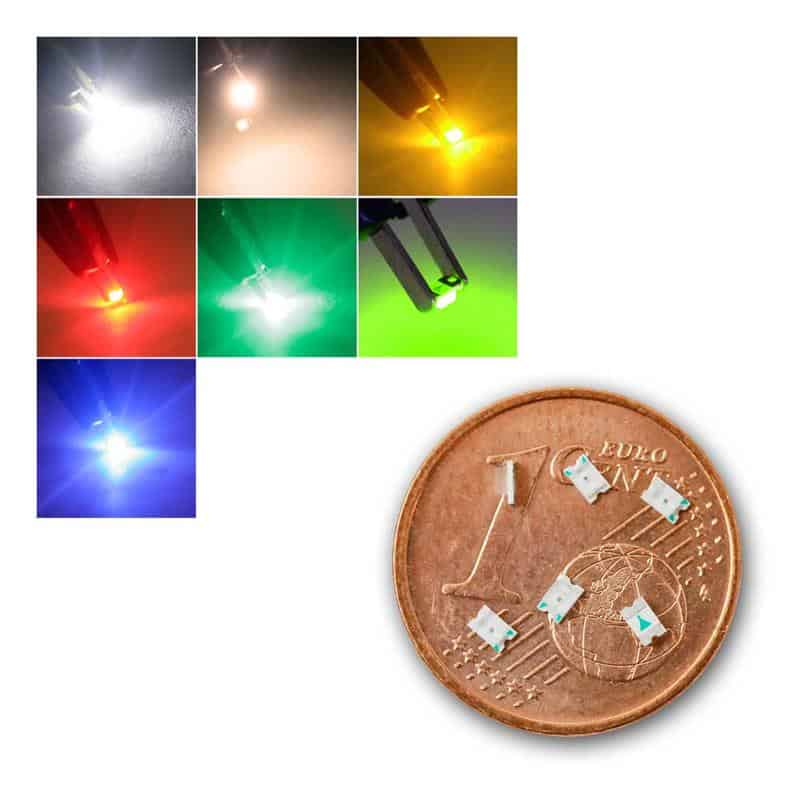

SMD 0805 LEDs

Small LED Indicators

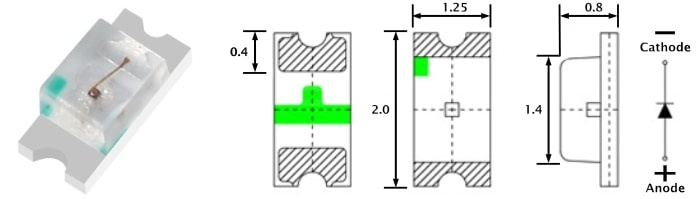

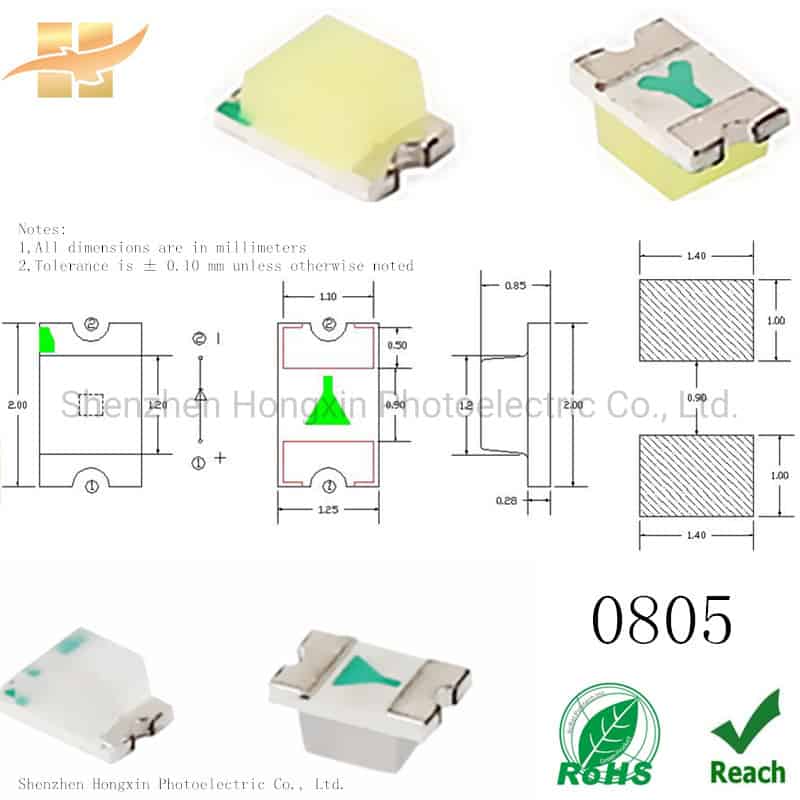

SMD LED 0805 Dimensions
SMD LEDs (Surface Mount Device) LEDs are some of the most miniature LEDs available. They are available in several standardized sizes.

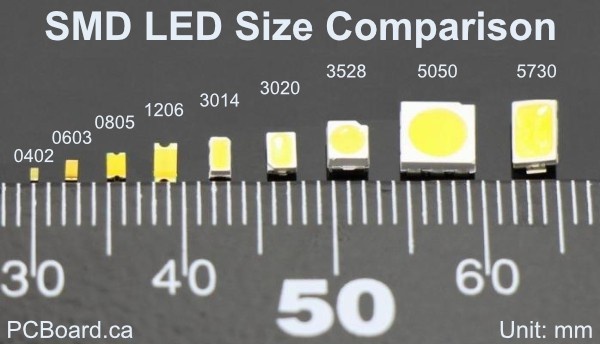

SMD LED Size Comparison

  • Model: 0603 (1608 Metric) measures 1.6mm (L) x 0.8mm (W)
  • Model: 0805 (2012 Metric) measures 2mm (L) x 1.25mm (W)
  • Model: 1206 (3216 Metric) measures 3.2mm (L) x 1.6mm (W)



These 0805 SMD LEDs can be used in many electronics projects, including hobbyists and model builders. They are commonly used in scale-models for everything from street and house lighting to tail and indicator lights on cars and scale model trains to model boats, planes, cars, spaceships, or anything you may want to add a tiny indicator light.

Other advantages of the SMD LEDs compared to incandescent bulbs, which run hotter and burn out quickly. LEDs are also available in a wide variety of colors.

The 0805 SMD LED is very small and will require tweezers to attached connection leads to them. We also carry pre-wired SMD LEDs to save you the trouble of connecting wires to the LED.

Power Requirements

Power to the LEDs can be over a wide range, but limit the current to the devices to no more than 0.02A (20mA). More current through the LED will result in a slightly higher-intensity brightness. Our Dropping Resistor Chart below shows the different LED models and power supply voltage options and the necessary dropping resistor to achieve maximum intensity. The LEDs will function well from currents from 2mA to 20mA.

SMD 0805 LED Power and Recommended Resistor Requirements

3v
4.5v
5v
6v
9v
12v
White LED
LED‑0805‑WHT‑01
10 ohm
¼ or ½ watt
100 ohm
¼ or ½ watt
120 ohm
¼ or ½ watt
180 ohm
¼ or ½ watt
330 ohm
½ watt
470 ohm
½ watt
Red LED
LED-0805-RED-01
75 ohm
¼ or ½ watt
150 ohm
¼ or ½ watt
180 ohm
¼ or ½ watt
220 ohm
¼ or ½ watt
390 ohm
½ watt
560 ohm
½ watt
Green LED
LED-0805-GRN-01
10 ohm
¼ or ½ watt
100 ohm
¼ or ½ watt
120 ohm
¼ or ½ watt
180 ohm
¼ or ½ watt
330 ohm
½ watt
470 ohm
½ watt
Blue LED
LED-0805-BLU-01
10 ohm
¼ or ½ watt
100 ohm
¼ or ½ watt
120 ohm
¼ or ½ watt
180 ohm
¼ or ½ watt
330 ohm
½ watt
470 ohm
½ watt
Yellow LED
LED-0805-YEL-01
75 ohm
¼ or ½ watt
150 ohm
¼ or ½ watt
180 ohm
¼ or ½ watt
220 ohm
¼ or ½ watt
390 ohm
½ watt
560 ohm
½ watt

To use your LED over a wide voltage range (anywhere from 3V to 15V DC), we recommend using an inexpensive 820 ohm 1/4 watt series resistor.

Hooking Up The LED with Dropping Resistor

All LEDs require current limiting, without a current limiting mechanism, LEDs will usually burn out in under a second. Adding a simple resistor is one of the easiest ways to limit the current.

Our Online LED Calculator is an excellent way to calculator necessary dropping resistor values. The calculator allows for automatic calculation of the necessary current limiting resistor and power rating for operating your LED. We have precalculated common resistor values above for the LEDs, but you can use the calculator for custom voltage or current settings.

Single LED Dropping Resistor Circuit


SMD 0805 LED Specifications


LED-0805-WHT-01 – White

Color Frequency: 6000K (Cool White)
Luminous Intensity: 210mcd
Viewing Angle: 120°
Forward Voltage: 2.8v – 3.0v
Typical Forward Current: 20mA


LED-0805-RED-01 – Red

Color Frequency: 620nm (Red)
Luminous Intensity: 150mcd
Viewing Angle: 120°
Forward Voltage: 1.8v – 2.0v
Typical Forward Current: 20mA


LED-0805-GRN-01 – Green

Color Frequency: 520nm (Green)
Luminous Intensity: 250mcd
Viewing Angle: 120°
Forward Voltage: 3.0v – 3.2v
Typical Forward Current: 20mA


LED-0805-BLU-01 – Blue

Color Frequency: 462nm (Blue)
Luminous Intensity: 160mcd
Viewing Angle: 120°
Forward Voltage: 2.8v – 2.9v
Typical Forward Current: 20mA


LED-0805-YEL-01 – Yellow

Color Frequency: 590nm (Yellow)
Luminous Intensity: 150mcd
Viewing Angle: 120°
Forward Voltage: 1.8v – 2.0v
Typical Forward Current: 20mA
