Description

Description:

A 1W Pink LED is a high-power blue light-emitting diode that consumes 1 watt of electrical power to produce blue light. These LEDs are commonly used in applications where bright and efficient blue light is required, such as in lighting, displays, indicators, and decorative purposes. Due to their higher power rating, 1W LEDs are much brighter than standard low-power LEDs.

Specifications:

Color	Blue, Red, Green, Pure White, Yellow, White warm, Natural White, Cool White, Super Cool White, Cold White (According to your choice)
Max Operating Temperature	120 °C
Min Operating Temperature	-40 °C
Power Dissipation	1 W
Mount	SMD
Number of pins	2
Viewing Angle	120 °

The Following Table has Various Types of Data

Power	Voltage(V)	Color	Wavelength/Color Temperature	Current(mA)	Lumen(LM)
1W	3.0-3.2	Warm White	3000-3500k	300-350	115-120
		Natural White	4000-4500k	300-350	115-120
		Pure White	6000-6500k	300-350	115-120
		Cool White	10000-15000k	300-350	115-120
		Super Cool White	20000-25000k	300-350	115-120
		Cold White	30000-35000k	300-350	115-120
	2.0-2.2	Red	620-625nm	300-350	50-60
	2.0-2.2	Deep Red	660-665nm	300-350	50-60
	3.1-3.2	Blue	460-465nm	300-350	25-35
	3.0-3.2	Green	520-525nm	300-350	80-90
	3.1-3.2	Royal Blue	445-450nm	300-350	25-35
	3.1-3.3	Full Spectrum-P	380-840nm	300-350	100-110
	3.1-3.3	Full Spectrum-W	380-840nm	300-350	120-130
	3.1-3.3	Pink	380-480nm	300-350	100-110
	2.1-2.3	Orange	600-605nm	300-350	60-70
	2.1-2.3	Amber	595-600nm	300-350	60-70
	2.1-2.3	Yellow	590-595nm	300-350	60-70
	3.2-3.4	UVA	385-390nm	600-700	70-80

Dimensions:

Package Included :

1Pcs x Led 1W Pink

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

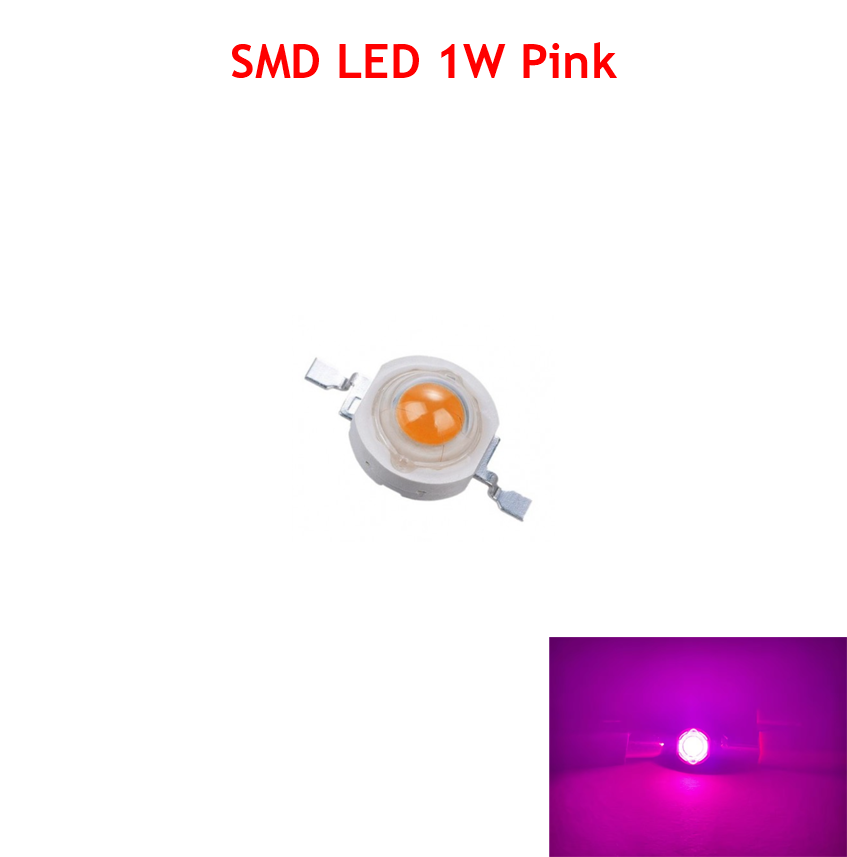

SMD LED 1W Pink
