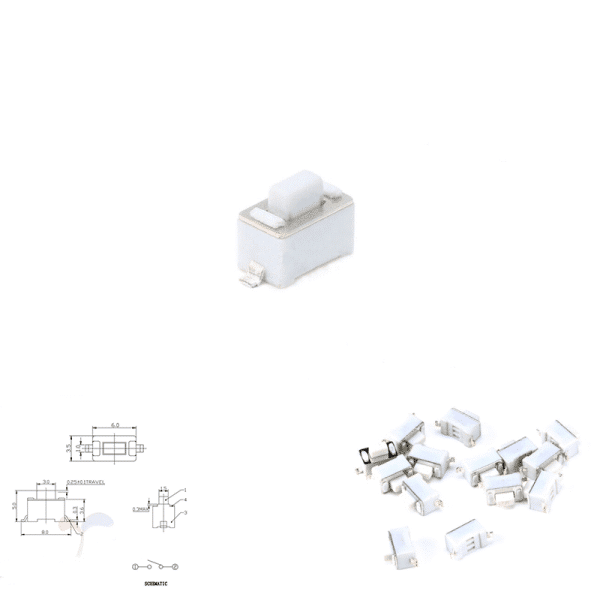

SMD PushButton (6*3*5mm) Tactile Tact Push Button Switch 2Pin

Description

Specifications

• Product Name : Tact Switch
• Contact Type : Momentary Contact
• Mounting Type : SMD;
• Dimension : 3 x 6 x 5mm (L*W*H)
• Material : Plastic, Metal, Electric Parts;
• Color : Black, White
• Net Weight : 1g;
• Current rating: 12V 50mA

Electrical Specifications

• Electrical: 50,000 cycles for 160gf
• Rating: 50mA/12VDC
• Contact Resistance: 100mΩ max.
• Insulation Resistance: 100MΩ min., at 500VDC
• Dielectric Strength: 250 VAC / 1 minute
