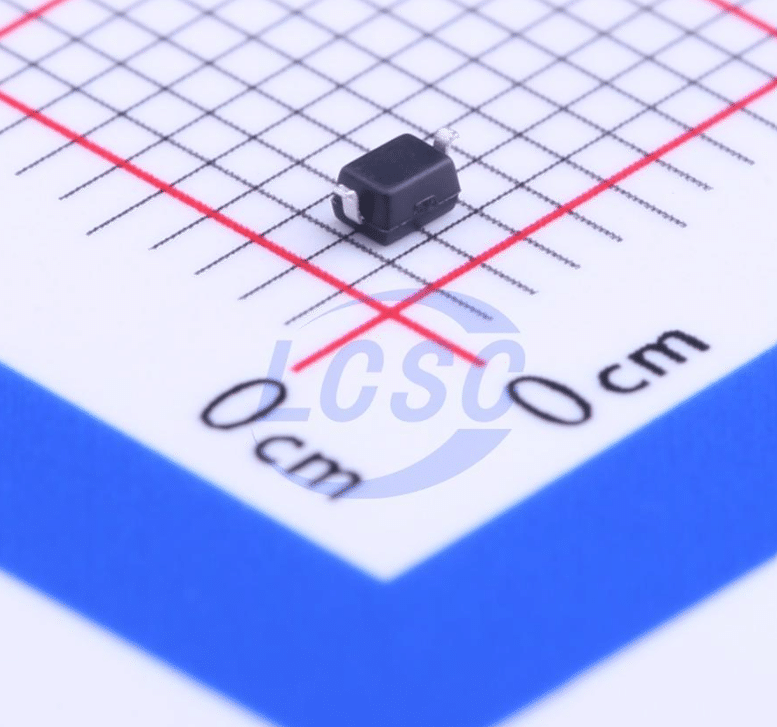

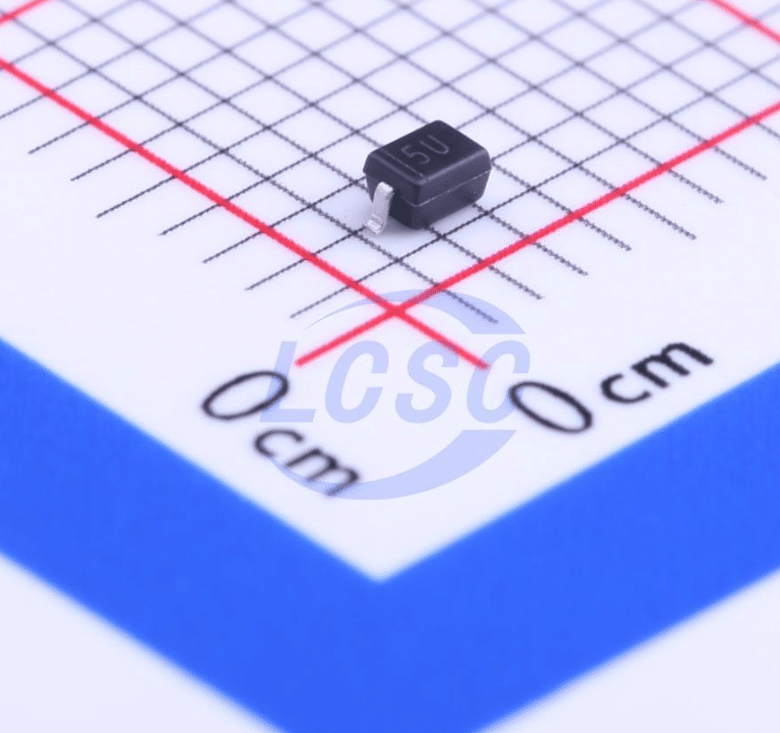

SMD TVS Diode (5V) SD05.TCT
In Stock
EGP1.50
In Stock
Add to WishlistRemove from Wishlist
CompareAdd to Wishlist
Description
Overview
The SDxx family of transient voltage suppressor (TVS) diodes is a series pioneered by Semtech for general purpose circuit level electrostatic discharge (ESD), cable discharge (CDE), electrical fast transient (EFT) and lightning surge protection. These robust protection devices offer multiple working voltage options and provide superior electrical characteristics such as lower clamping voltage and no device degradation when compared to polymer and MLV devices.
Features
- 5 V working voltage
- Protects one I/O or power line
- 350 Watts peak pulse power (tP = 8/20 µs)
- SMD/SMT
- Clamping Voltage:9.8 V
- Breakdown Voltage:6 V
- Package/Case:SOD-323
- Ipp – Peak Pulse Current:24 A
- Pppm – Peak Pulse Power Dissipation:350 W
- Cd – Diode Capacitance:350 pF
- Current Rating:10 uA
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 25 kV (air), ± 10 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 24 A (8/20 µs)
- Small package for use in portable electronics
- Suitable replacement for MLVs in ESD protection applications
- Low clamping voltage
- Low leakage current
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
Datasheet:
