Square PushButton Switch (DS-430)

Description

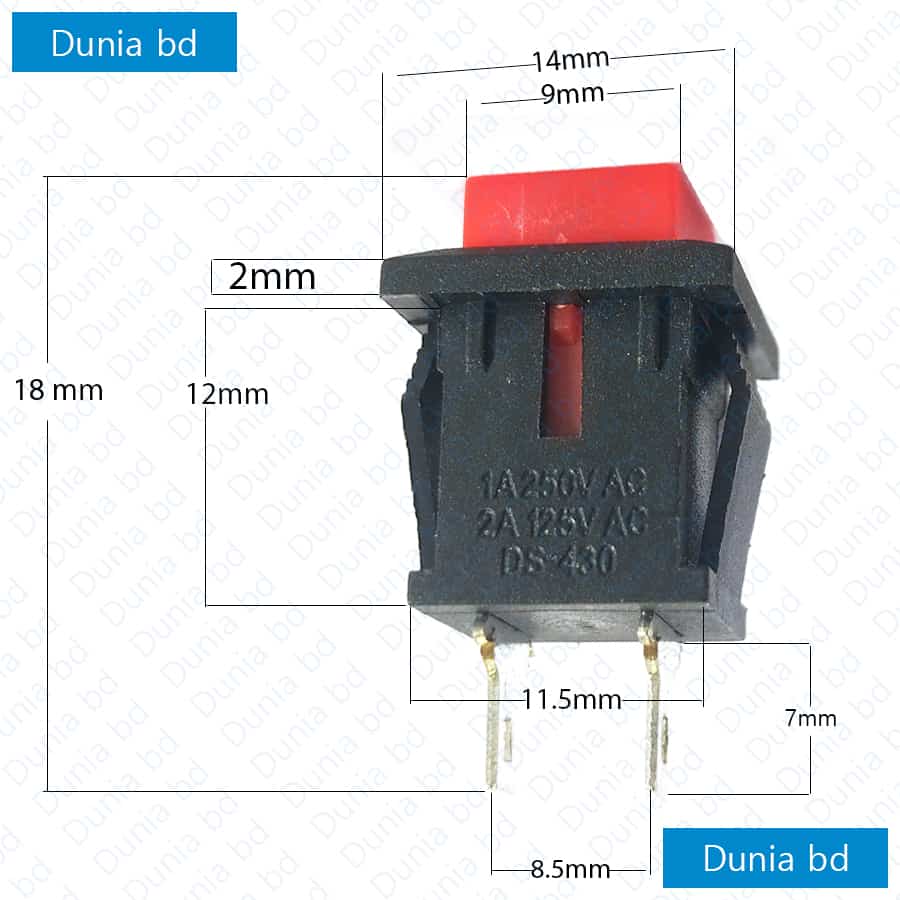

DS-430 square electrical Push Button Switch

Description:

External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature  : -25~ +70°C
Relative Humidity : ( 40°C) ≤ 95%
Normal Load  : 1A  AC 250V
Withstand VoltageAC  : 250V (50Hz)/1min
Travel : 4mm
Service Life 100,000 Cycles
Operating Force : 4N
Center Distance : 2.2mm
Diameter : 7mm
Height : 21.4mm
Length of Terminal : 5.1mm
Width of Terminal : 0.5mm
Color of Key :Red
Lock Mechanism Lockless
UsesInstrument,Meter,Household Appliances
