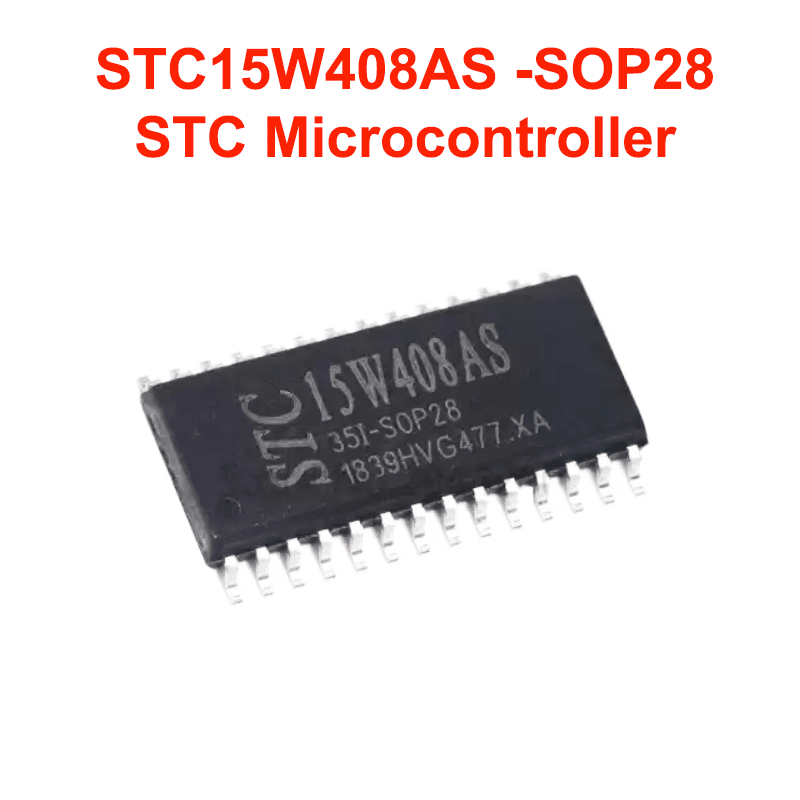

STC15W408AS -SOP28 STC Microcontroller

SPECIFICATIONS:

• Program FLASH Size: 8KB
• Operating Temperature Range: -40℃~+85℃
• Supply Voltage Range: 2.5V~5.5V
• Peripherals / Functions / Protocol Stacks: Low-VoltageDetect;WDT;CCP capture/compare
• (E)PWM (Units/Channels/bits): 1@x6ch/15bit
• CPU Core: 51Series
• DAC (Units/Channels/bits): – 3x10bit
• ADC (Units/Channels/bits): 1@x8ch/10bit
• I2C Number: –
• RAM Size: 512B
• U(S)ART Number: 1
• CMP Number: 1
• 32Bit Timer Number: –
• 16Bit Timer Number: 5
• 8Bit Timer Number: –
• Internal Oscillator: Internal oscillator included
• Maximum Frequency: – 35MHZ
• External Clock Frequency Rang: –
• (Q)SPI Number: 1
• GPIO Ports Number: 26
• EEPROM/Data FLASH Size: 5KB
