TFT LCD Display Module SPI Interface 1.8 Inch 128*160

Description

• • DESCRIPTION

  1.8 Inch TFT LCD Display Module SPI Interface 128 x 160 with 4 IO uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

  The 1.8″ display has 128×160 colour pixels. Unlike the low-cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh, this display is a true TFT! The TFT driver (ST7735) can display a full 18-bit colour (262,144 shades!).

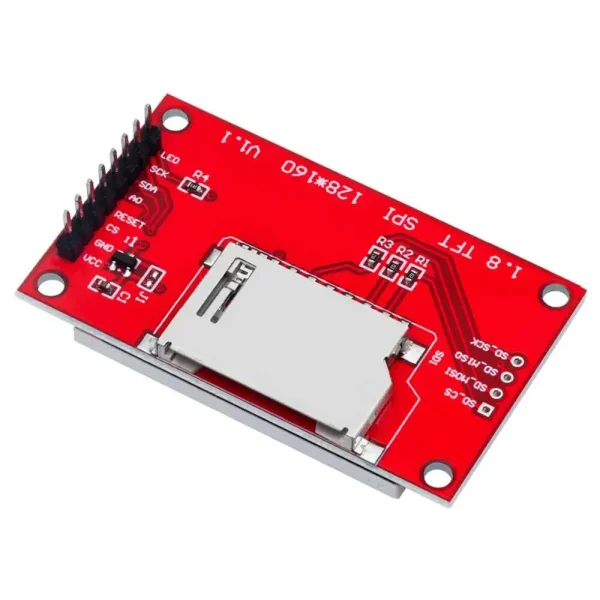

  The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full-colour bitmaps from a FAT16/FAT32 formatted microSD card.

  Features :

  • 1.8-inch serial SPI colour display module
  • Support analogue SPI and hardware SPI
  • The LCD has a wide viewing angle, the contrast is also very suitable.
  • Easy to expand the experiment with an SD card slot



  Number	Pin Label	Description
  1	VCC	5V/3.3V power input
  2	GND	Ground
  3	CS	LCD chip select signal, low level enable
  4	RESET	LCD reset signal, low level reset
  5	A0	LCD register / data selection signal,high level: register, low level: data
  6	SDA	SPI bus write data signal
  7	SCK	SPI bus clock signal
  8	LED	Backlight control, high level lighting,if not controlled, connect 3.3V always bright

  Specifications:

  Screen Size	1.8(inch)
  Type	TFT
  Driver IC	ST7735
  Resolution	128*160 (Pixel)
  Module Interface	4-wire SPI interface
  Active Area (AA area)	28.03×35.04(mm)
  Module PCB Size	34.5×58.0(mm)
  Operating Temperature	-20℃~60℃
  Storage Temperature	-30℃~70℃
  VCC power voltage	3.3V~5V
  Logic IO port voltage	3.3V(TTL)

  Useful Links:

  • 1.8 Inch TFT LCD Module Library
