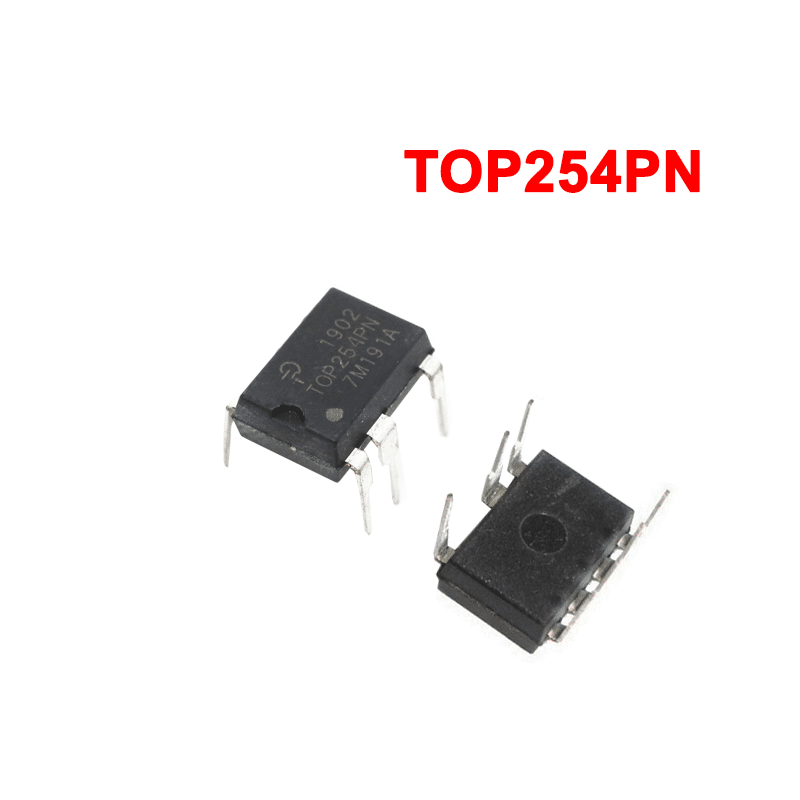

TOPSwitch-HX family is an enhanced EcoSmart, integrated off-line switcher with advanced feature set and extended power range. TOPSwitch-HX cost effectively incorporates 700V power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device. It is a highly integrated monolithic off-line switcher IC designed for off-line power supplies. TOPSwitch-HX integrated circuits enable design of power supplies up to 195W, while providing high efficiency under all load conditions. Provides very good performance at low load and during standby (no load) operation. TOPSwitch-HX allows designer to meet efficiency requirements for new energy efficiency standards. Applications includes LCD monitor, personal computers, small servers, laptop adapters, set-top boxes, digital TVs, printers, DVD players, recorders, UPS, video games, broadband modems, cellular phone adapters and audio amplifiers.
16W (adapter), 28W (openframe) at 230VAC and 11W (adapter), 20W (openframe) at 85-265VAC O/P power
Multi-mode operation maximizes efficiency at all loads, EcoSmart™- energy efficient
Extended creepage between DRAIN and all other pins improves field reliability
Frequency jittering reduces EMI filter cost, allows both primary and secondary sensing
Line undervoltage (UV) detection prevents turn-off glitches
Line overvoltage (OV) shutdown extends line surge limit
Accurate programmable current limit, optimized line feed-forward for line ripple rejection
132KHz frequency (254Y-258Y and all E/L packages) reduces transformer and power supply size
Half frequency option for video application, fully integrated soft-start for minimum start-up stress
Output OVP is user programmable for latching/non-latching shutdown with fast AC reset
