UT681C Cable Tester RJ45/RJ11/BNC (UNI-T )

Description

• UT681C Cable Tester

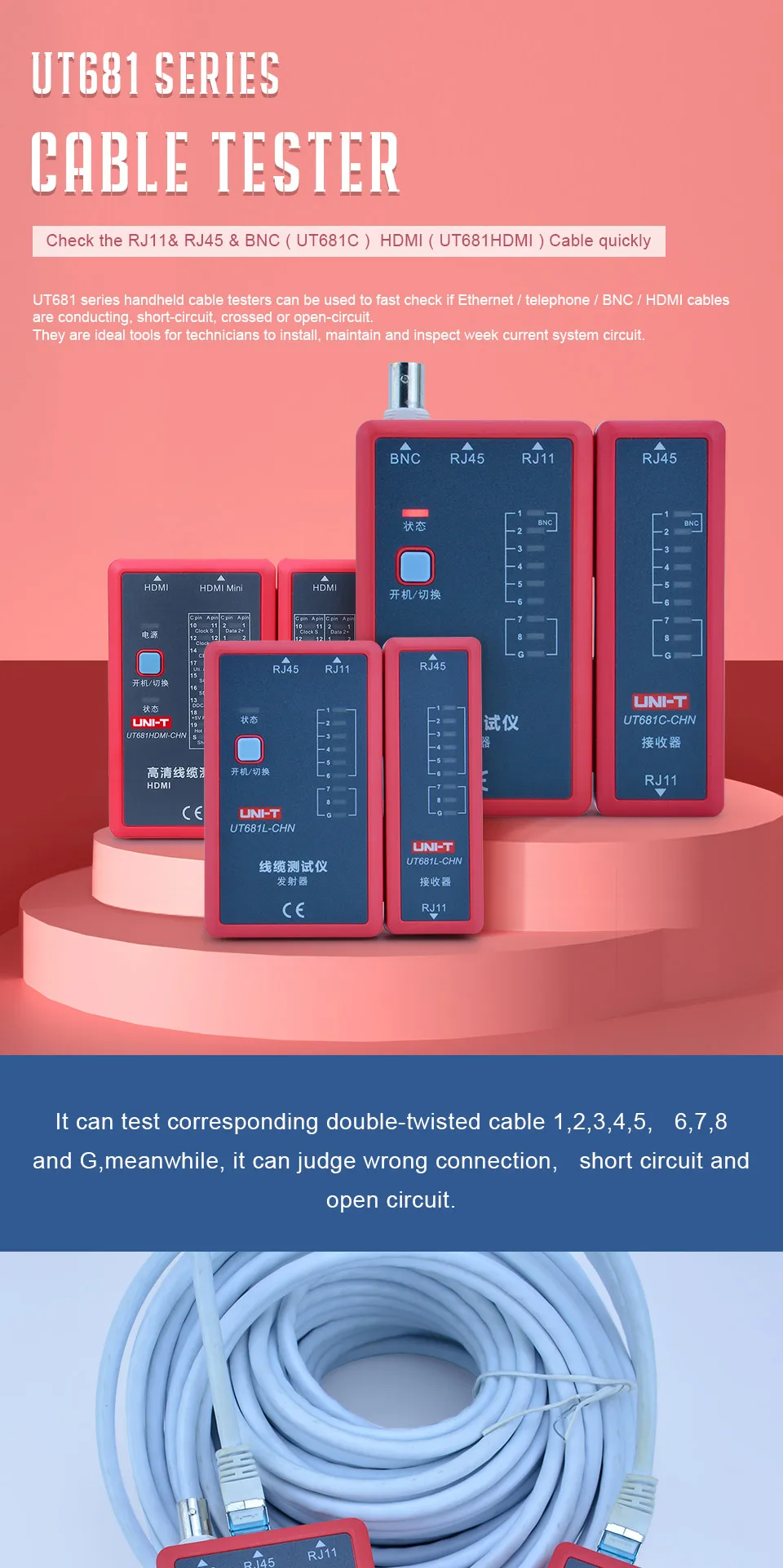

  UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.

  1. LED status display

  2. Auto check of open/short/crossovercircuit

  3. Single key operation

  4. Manual/auto power off (after10-minute inactivity)

  5. Low battery indication

  6. Power supplied by 9V battery

  Specifications	Range	UT681L	UT681C	UT681HDMI	Description

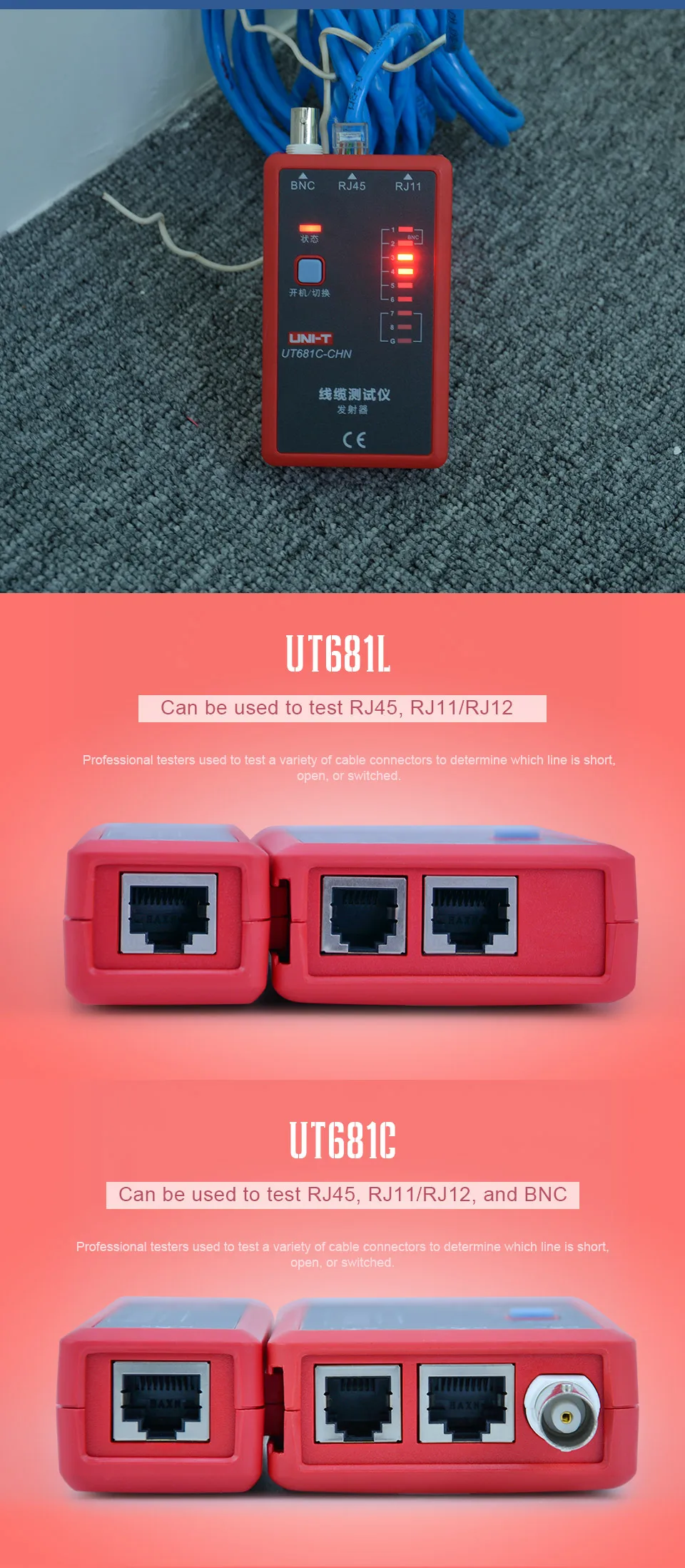

  Test function	To test for: RJ45/RJ11	√

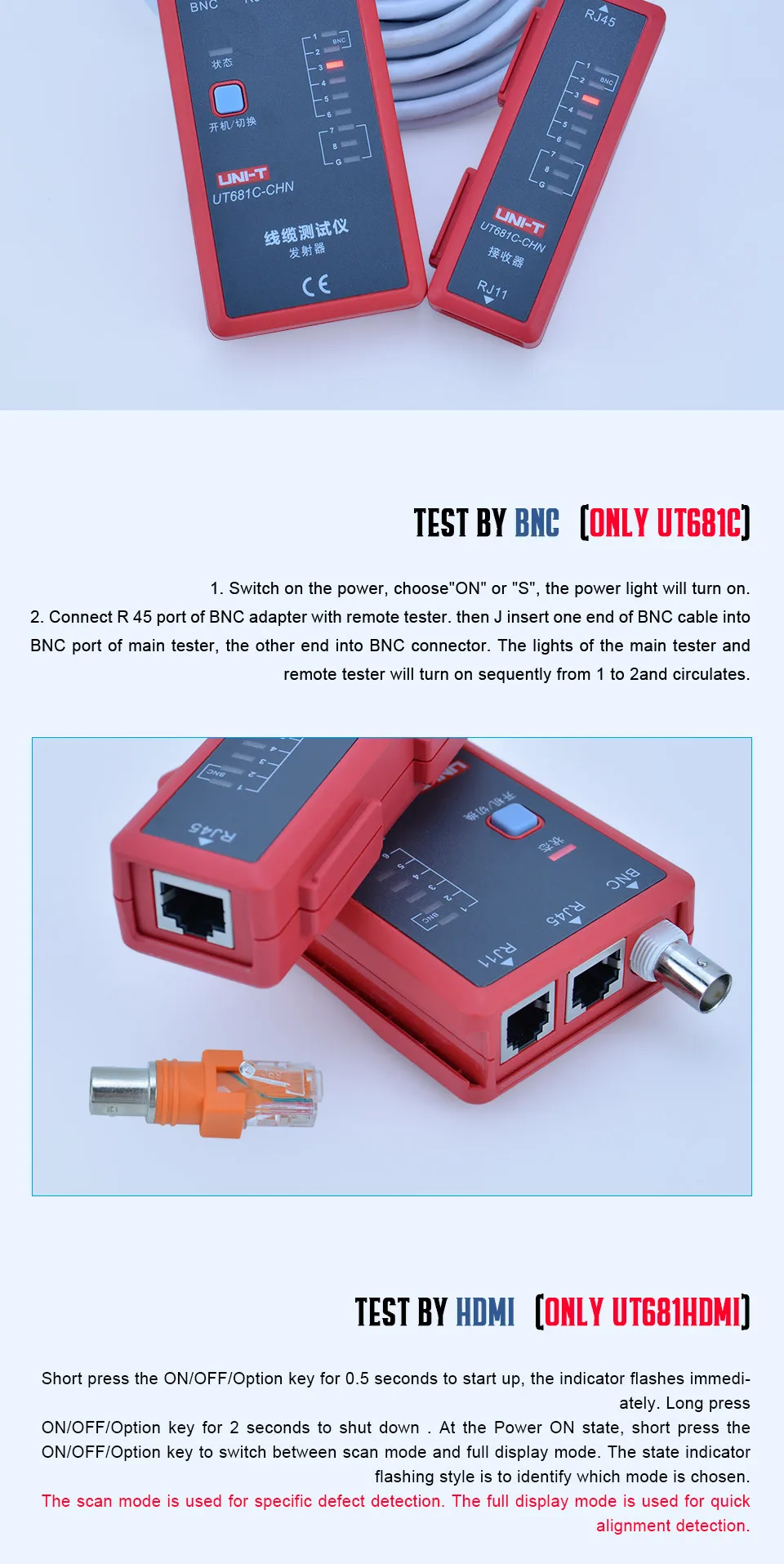

  	To test for: RJ45/RJ11/BNC		√		Need to use RJ45 to BNC adaptor

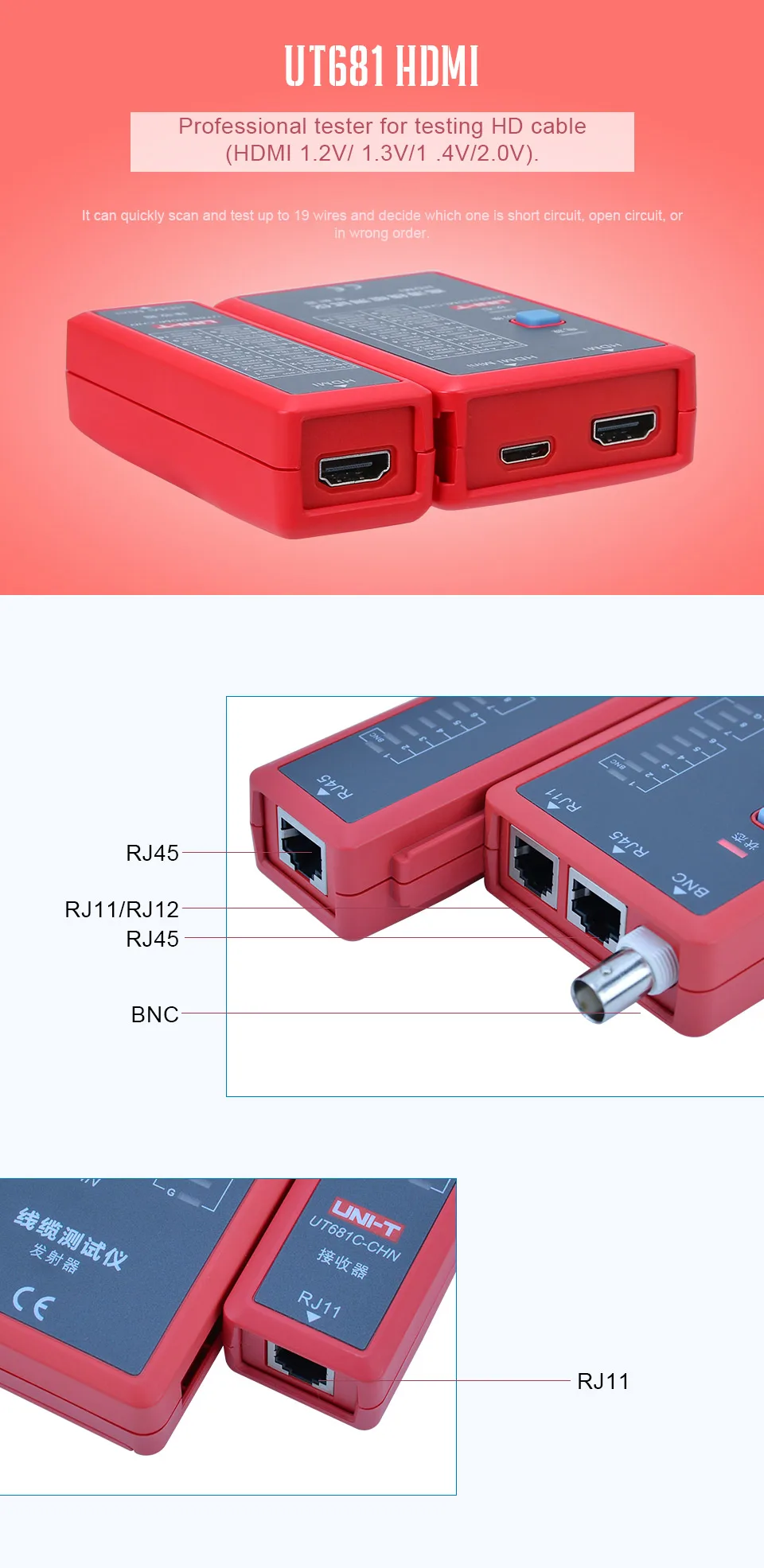

  	To test for: HDMI/MINI-HDMI			√
  	Fast test mode	√	√		LED1~LED8, LED_G
  	Slow test mode	√	√		LED1~LED8, LED_G
  	Scan test mode			√	LED1~LED19, LED_S
  	Full display test mode			√	LED1~LED19, LED_S
  	To test for the case of short circuit, crossover, open circuit, etc.	√	√	√
  	Ethernet cable: shielded/ unshielded test	√	√	√
  	Manual shutdown function	√	√	√
  	Auto shutdown function	√	√	√	No operation within 10 minutes, the device will shut down automatically
  	Single key operation	√	√	√
  	Power supply: 9V battery	√	√	√
  	Low battery detection	√	√	√	Less than 7.2V
  Application environment	Operating temperature: 0~40℃	√	√	√
  	Storage temperature: -10~50℃	√	√	√
  	Operating humidity: 20~80%RH	√	√	√
  	Storage humidity: 10~90%RH	√	√	√
  	Altitude: ≤2000 meters	√	√	√
  Safety standard	CE EN61326-1: 2013; EN61326-2-2: 2013	√	√	√
  General Characterisitics
  Product color	Red and grey
  Product net weight	Transmitter: 87g; receiver: 51g

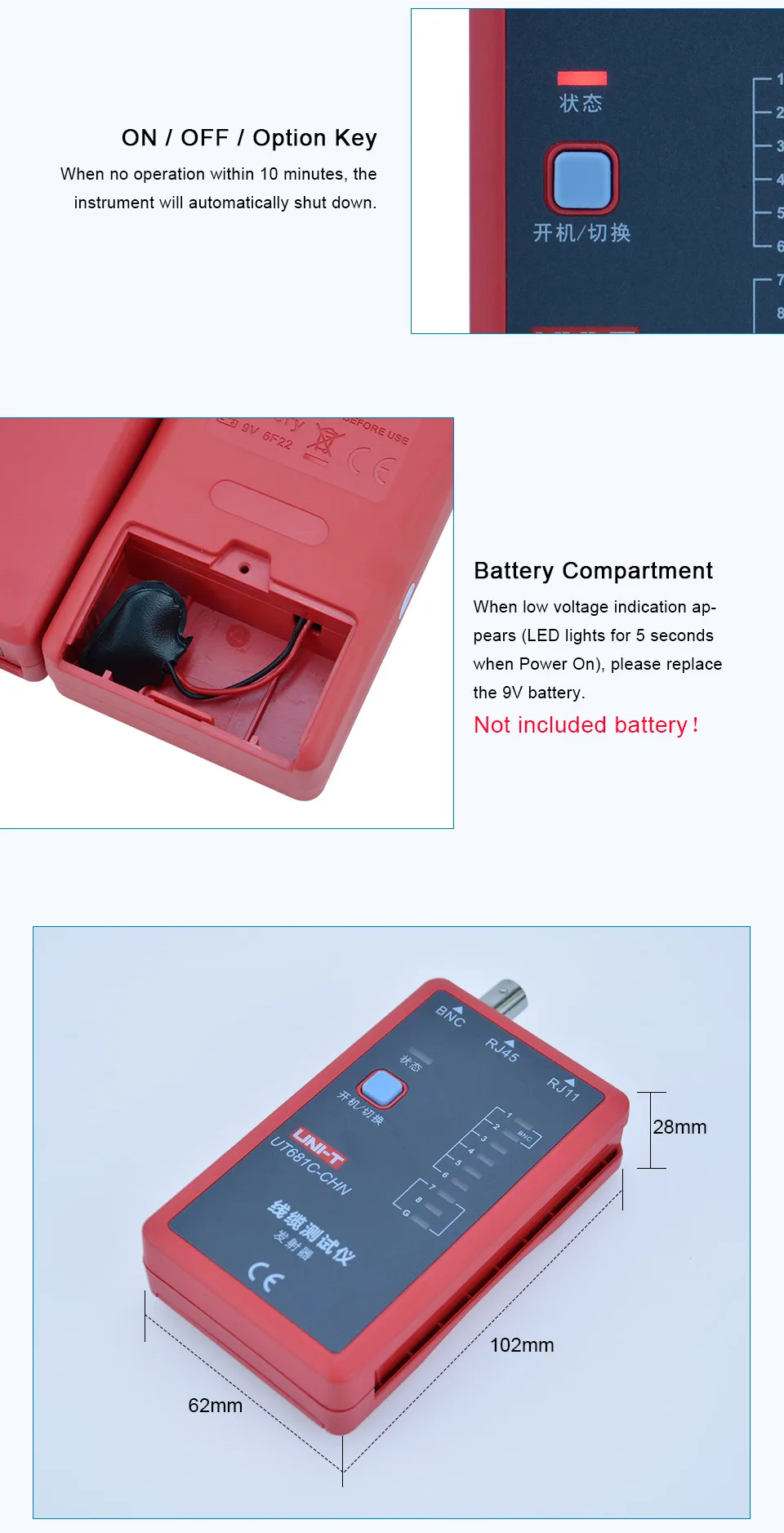

  Product size	Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm

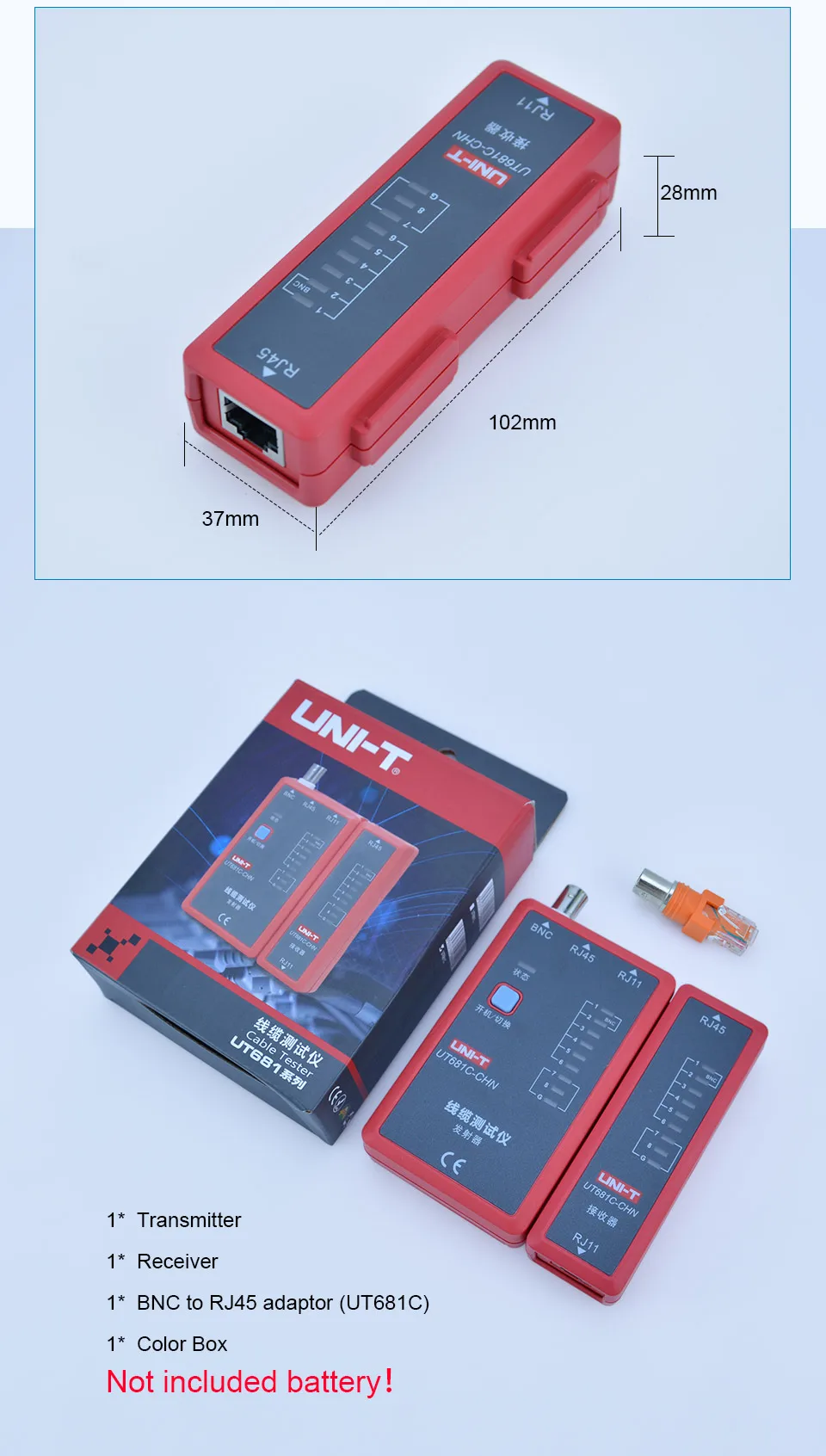

  Standard accessories	9V battery, BNC to RJ45 adaptor (UT681C) NOT INCLUDE BATTERY
  Standard individual packing	Gift box, English manual
