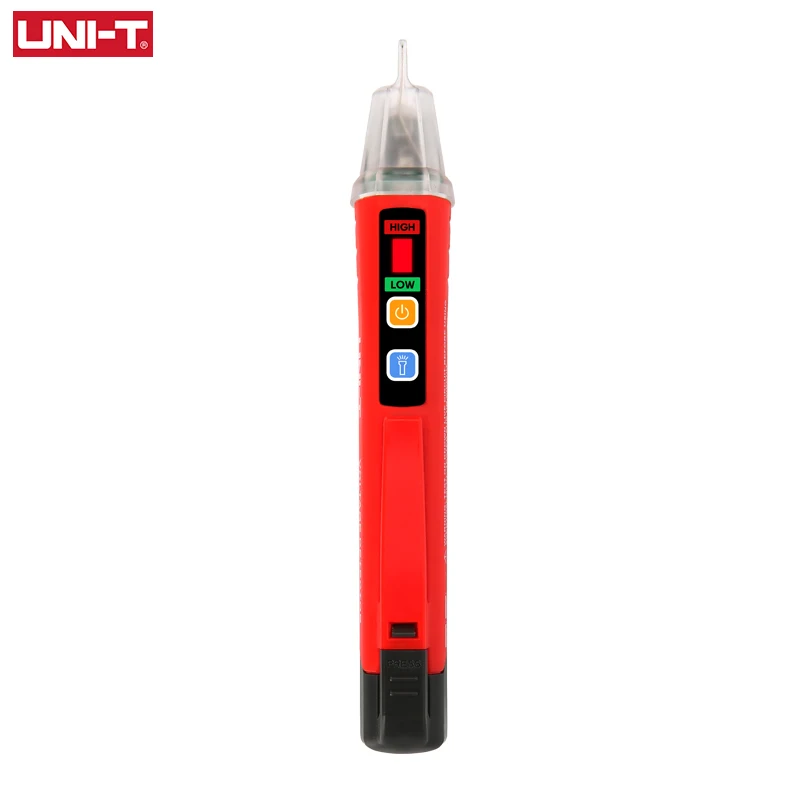

UNI-T Volt Detector PEN (UT-12D) Pen Tester Pencil Stick 24V-1000V

In Stock
In Stock


UT12 series non-contact AC voltage detectors are widely used in the maintenance of lowvoltage equipments such as conductors, cables, sockets, and other electrical/electronicsinstruments. It is a very handy tool for electricians.

The UT12D with 24-1000v voltage detection range, intelligently identifies zero-fire lines, and has high and low dual-mode voltage range detection. with flashlight helps to maintain normal use in harsh lighting conditions. Safety level CAT IV 1000V ensures User-safe, audible and visual alarm synchronization ,it’s an essential tool for industry and home.

>>>>>Main Features<<<<<
1.Safe, reliable, high sensitivity, non-contact test pencil that can distinguish between zero fire lines
2.AC voltage measuring range:24V-1000V
3.High Low Dual Mode detect(Low:24-1000Vgreen,High:90-1000V red)50Hz/60Hz
4.Audio Light Alarm
5.Low voltage indication
6.Auto Power Off(5 minutes don’t use the dectector, it will be powered off automatically)
7.With Flashlight
8.CAT IV 1000V
9.1 meter drop-proof

10.ETL,CE certificate

Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines,underground mining lighting, cables with thick insulation layer and other weakelectromagnetic AC signals.

High voltage mode: Urban electric supply and three-phase systems (90~1000V). Forexample, power distribution units, electrical panels, electrical appliances.

>>>>>Technical Data<<<<<
Model UT12D
AC voltage (Low) 24V~1000V
AC voltage (High) 90V~1000V
Frequency range 50/60Hz
Built-in flashlight
※Audible (buzzer) and visual (LED) indication
LED indication
Auto power off
Low voltage indication
Drop test 1m
General Characteristics
Power 1.5V battery (R03) x 2(Battery Not Include)
Product color Red and grey
Product net weight 50g
Product size 150mm x 18 mm x 23mm
>>>>>Picture Show<<<<<
