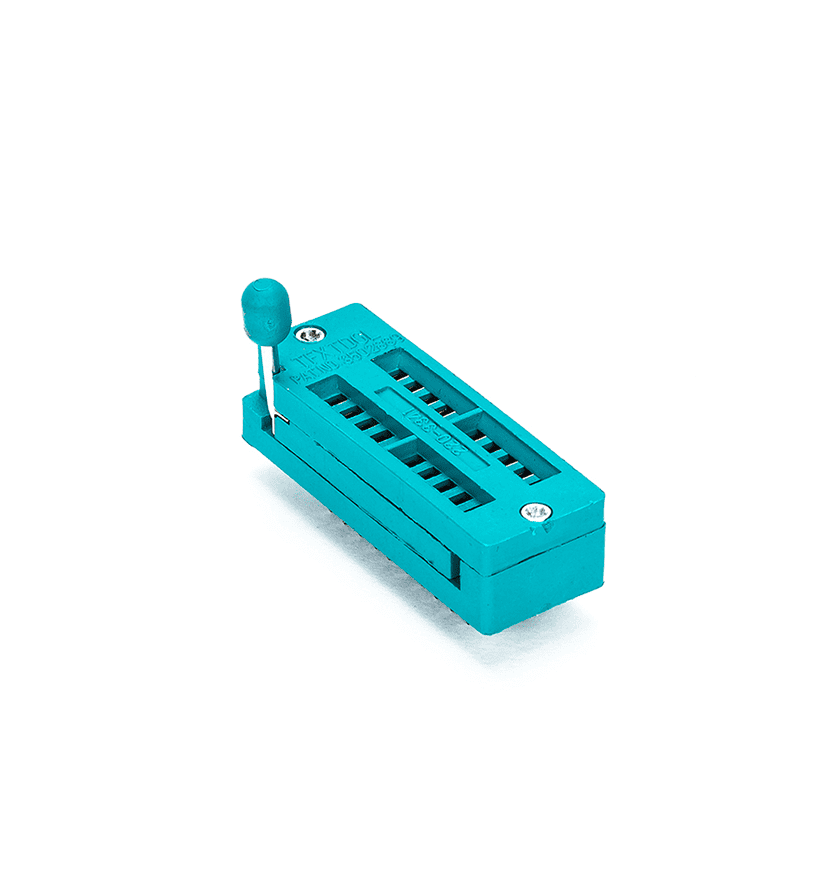

Universal ZIF Socket 20 Pin

In Stock
EGP20.00
In Stock
Categories: ,

Description

Description:

These Zero Insertion Force (ZIF) sockets clamp onto a chip, making a good electrical connection, when you push the lever down.
When you release the lever, it releases the chip. This allows you to repeatedly insert or remove a chip from the socket without damage to either.

These are great for two situations: When you want to replace the chip that goes in a given place frequently, or when you want to program one chip after another in the same fixture. (For example, we use them to program the chips in our open-source kits!)

These 20-pin ZIF sockets (0.3″ wide) are perfect for programming microcontrollers in DIP packages with up to 20 pins, including 8-pin, 16-pin, 18-pin, and 20-pin devices. There’s even a little bar to indicate where to put a DIP-8, if you want to use one. They’re great for programming the ATtiny2313 chips.

When using ZIF sockets, keep in mind that the pins are a bit wider than regular IC pins– they fit in most pad-per-hole type prototyping boards, but may not fit in a chip socket or circuit board that was meant to hold a chip alone.

Features:

  • High quality and durable
  • Nickel-Tin Plated Contacts
  • Easy to Remove and Program IC’s
  • Suitable for All IC Sizes Up To 20 pin
  • Package: DIP20
  • Pitch: 2.54mm

Package Includes:

  • 1x 20 Pin ZIF Socket
