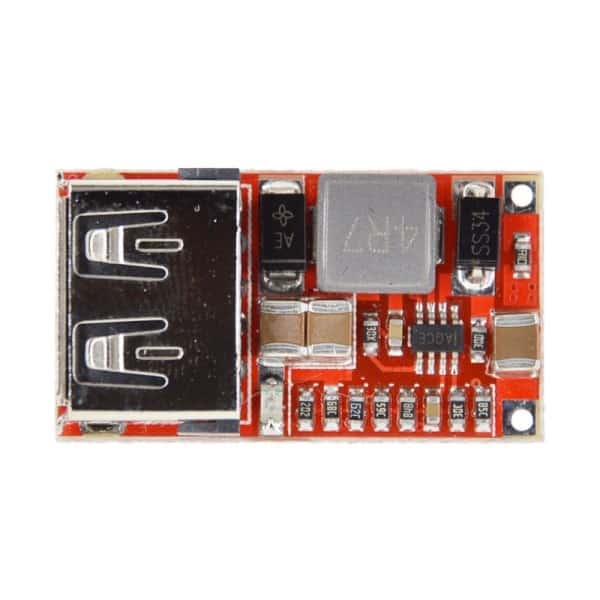

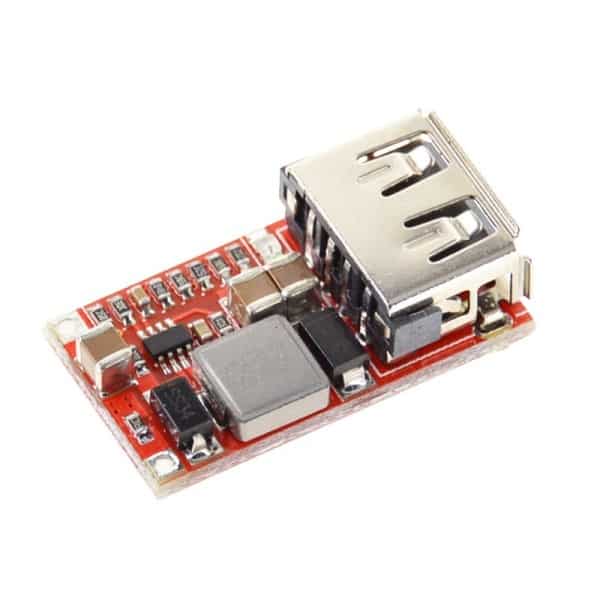

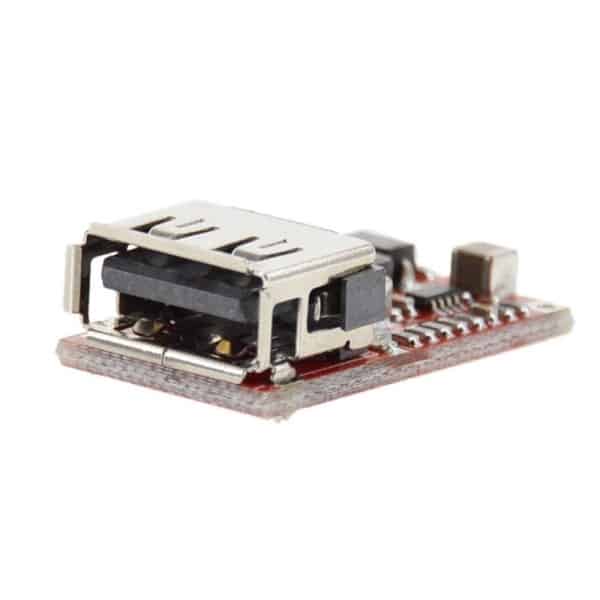

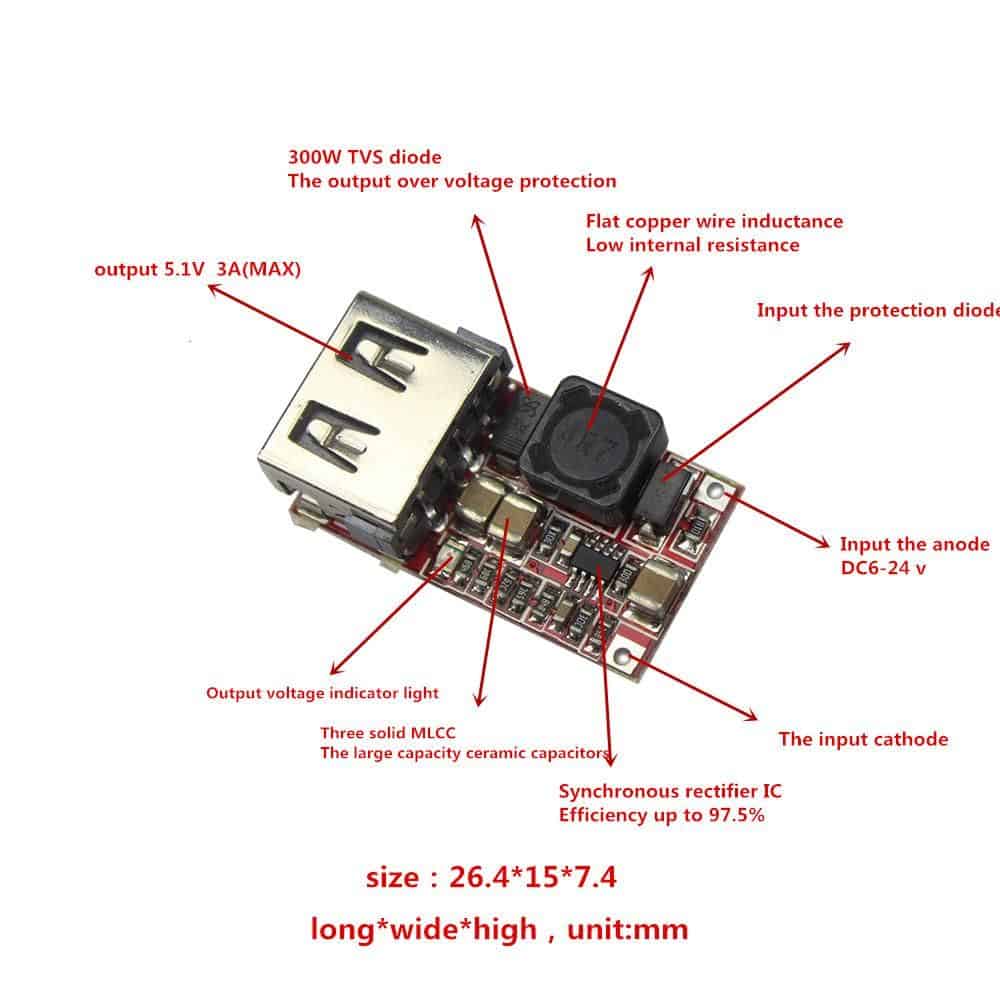

USB DC-DC Converter Step Down Module 5V 3A

Description

• Input voltage:  DC 6-24V
• Output voltage:  4.8-5.2V
• Output current: 3A MAX
• Conversion efficiency:  can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
• Switch frequency:  500KHz
• Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
• Output indicator: Output voltage indicator is red
• Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)
• Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
• Full load temperature: 30 Celsuis
• Static current: 0.85 mA
• Load regulation:  ± 1%
• Voltage Regulation:  ± 0.5%
• Dynamic response speed:  5% 200uS
