USB Type B Female to 2.54mm Header Breakout Module

In Stock
EGP20.00
In Stock
Other people want this. 1 people have this in their carts right now.
Categories: ,

Description

DESCRIPTION

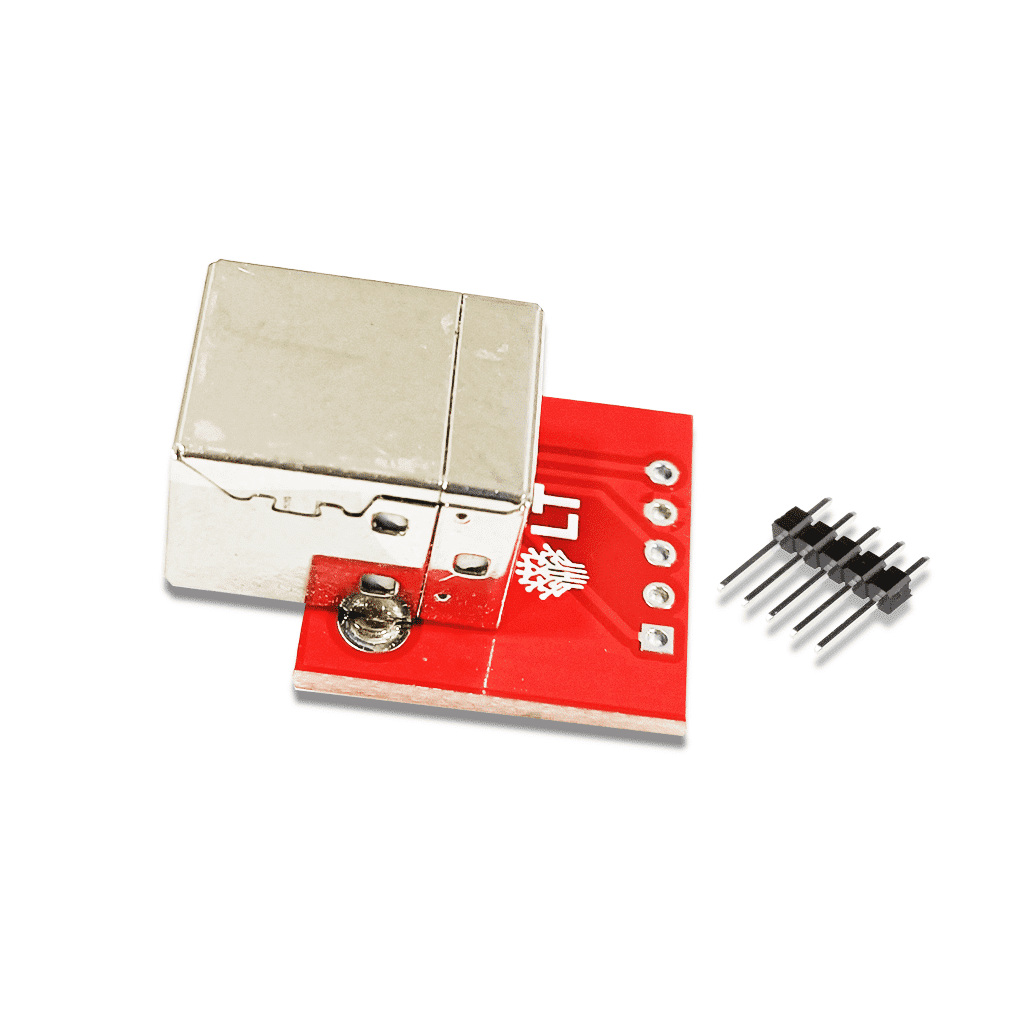

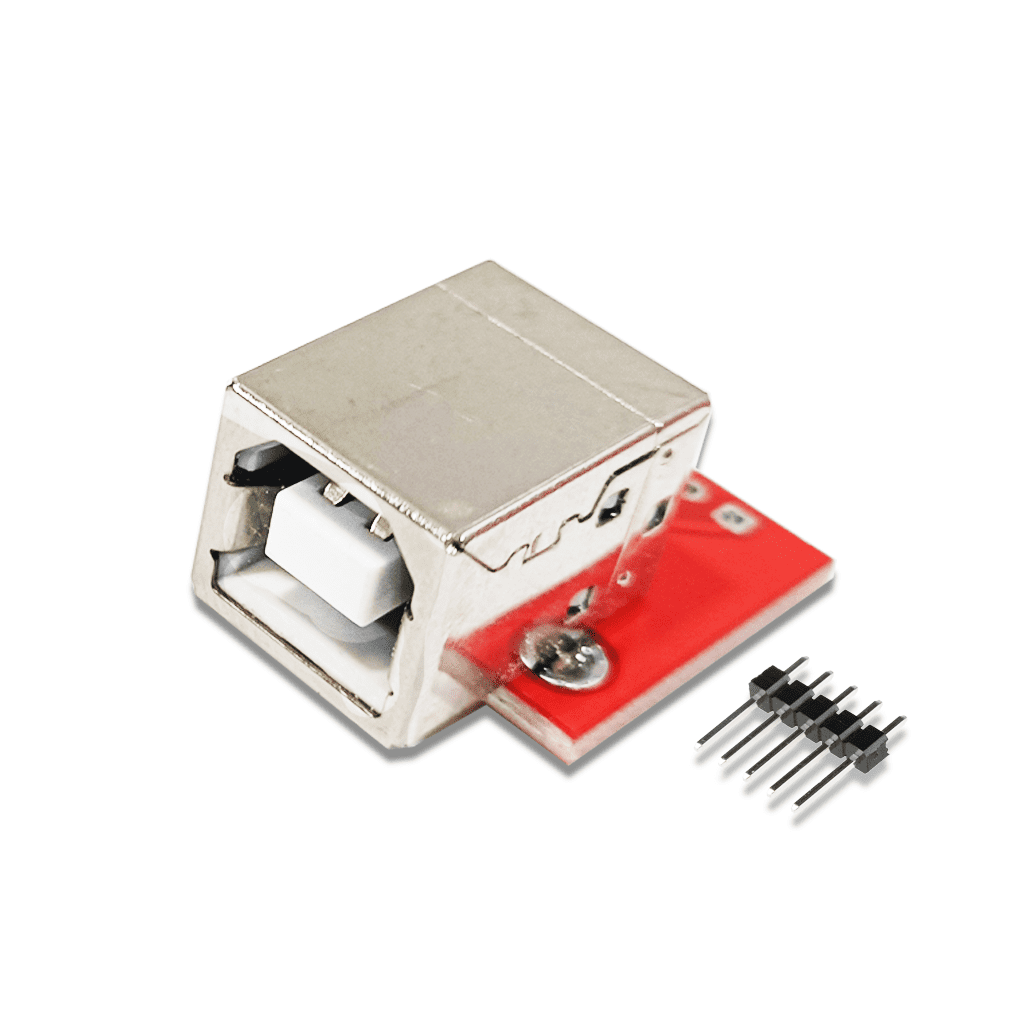

This is a USB Type B Female to 2.54mm (0.1″) header breakout adapter that can accept a printer style USB cable.

PACKAGE INCLUDES:

  • USB Type B Female to 2.54mm Header Adapter
  • 1 x 5 male header

KEY FEATURES OF USB TYPE B FEMALE TO 2.54MM HEADER ADAPTER:

This connector is the same as you find on many Arduino boards, printers and other equipment.

These adapters ship with a strip of male header pins that can be soldered on.  The header can be soldered on the bottom of the adapter if you want to plug this into a breadboard.  If the header is soldered to the top of the adapter, female jumpers can be used to attach to the adapter.  Wires can also be soldered directly to the board if the header is not used.

Module Connections

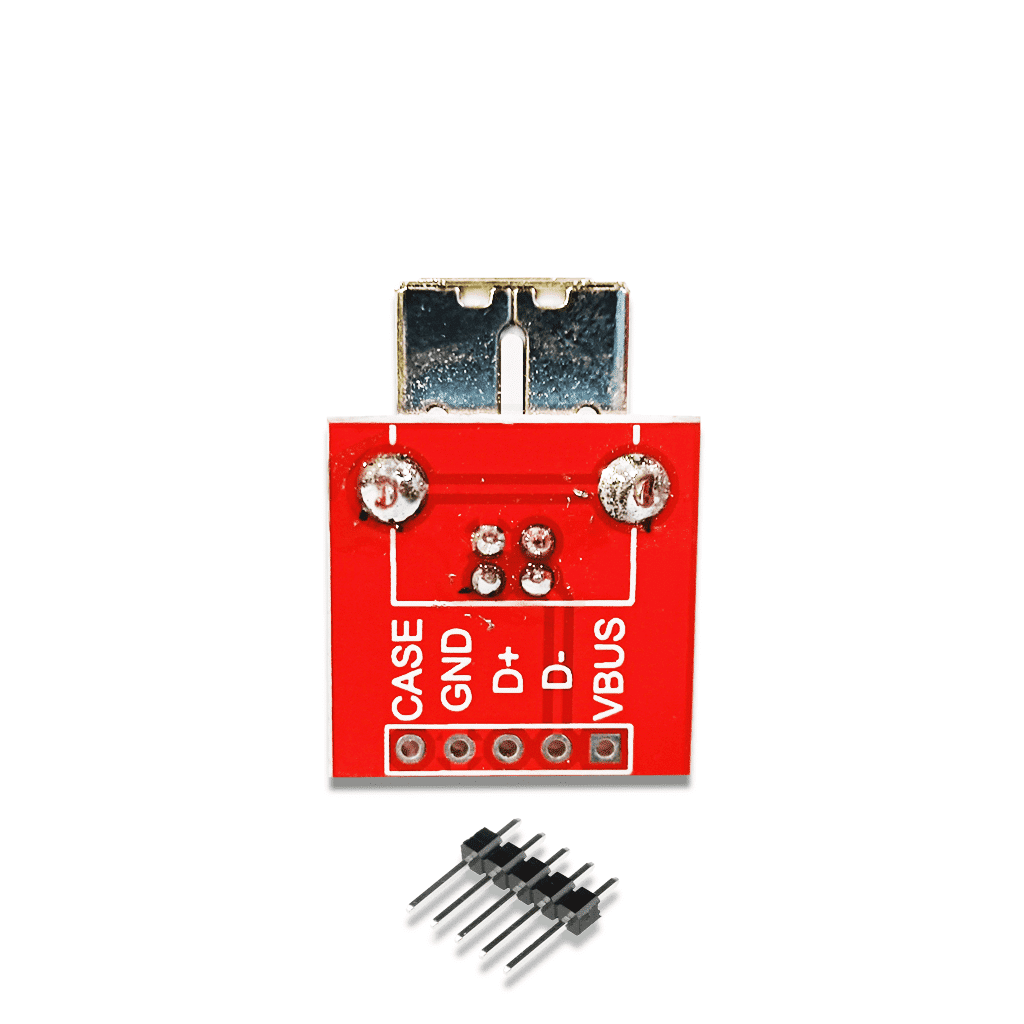

The adapter brings out the 4 USB pins as listed below.

1 x 5 Header

  • VBUS = USB Power (4.75 – 5.25V)
  • D- =     Data – (USB differential data line – )
  • D+ =    Data + (USB differential data line +)
  • GND = Ground
  • CASE = Case

TECHNICAL SPECIFICATIONS

Connector Type  USB Type B Female
Termination Style 1 x 5 header
Dimensions L x W  (PCB) 20 x 20mm (0.79 x 0.79″)
Length with connector 27mm (1.06″)
