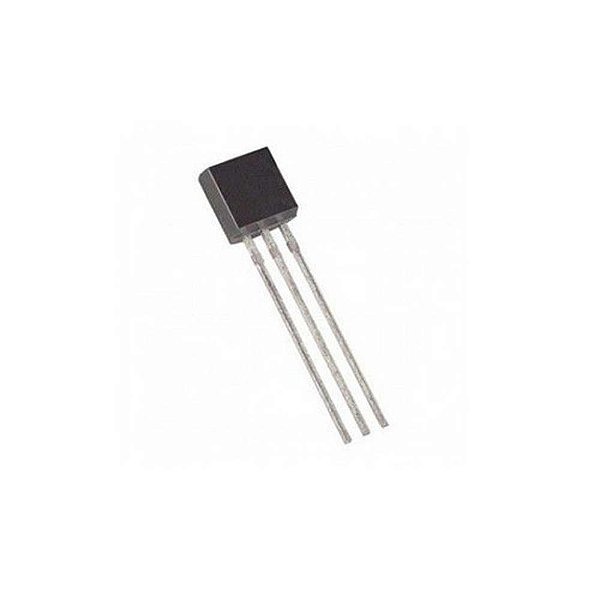

2N2907 Transistor (PNP, 40V, 600mA)

Description

The 2N2907 is a PNP bipolar junction transistor (BJT) that is commonly used in low-power amplification and switching applications. It is designed to handle moderate voltage and current levels, making it suitable for use in a wide range of electronic circuits, including audio amplifiers, power regulation, and general-purpose signal processing circuits.

Key Features of 2N2907:

1. PNP Type:
   • The 2N2907 is a PNP transistor, meaning the majority charge carriers are holes (positive charge carriers), and the current flows from the emitter to the collector when a negative voltage is applied to the base relative to the emitter.
2. Voltage and Current Ratings:
   • Collector-Emitter Voltage (Vce): 40V
     • The maximum collector-emitter voltage that the 2N2907 can withstand is 40V. This makes it suitable for medium-voltage applications.
   • Collector Current (Ic): 0.6A
     • The maximum collector current rating of the 2N2907 is 0.6A (600mA). This is enough to drive moderate-power loads and perform small-to-medium current switching or amplification tasks.
3. Power Dissipation:
   • The maximum power dissipation is 500mW (0.5W), which indicates how much heat the transistor can safely dissipate while operating. In higher-power applications, proper heat sinking may be required to prevent overheating.
4. Current Gain (hFE):
   • The DC current gain (hFE) of the 2N2907 typically ranges from 40 to 300, depending on the operating conditions. This high current gain allows the transistor to amplify small input currents into much larger output currents, making it suitable for low-power amplification.
5. Package Type:
   • The 2N2907 usually comes in a TO-92 package, which is a small, three-lead package that is commonly used for low-power transistors. The TO-92 package is widely used in hobbyist and low-power circuits.
6. Applications:
   • The 2N2907 is frequently used in signal amplification, switching, and low-power control circuits. It is commonly found in audio circuits, oscillators, small motor drivers, and power regulators.

Pin Configuration (TO-92 Package):

The 2N2907 comes in the TO-92 package, and the pin configuration is as follows:

Applications of 2N2907:

1. Signal Amplification:
   • The 2N2907 is commonly used for low-power audio amplification and signal amplification in analog circuits. It can be used in pre-amplifiers, sensor amplifiers, and audio processing systems.
2. Switching Circuits:
   • The 2N2907 is used in switching applications to control larger currents or voltages. For example, it can be used to switch LEDs, relays, or small motors based on a control signal.
3. Audio Circuits:
   • It is often used in audio circuits where moderate power amplification is required, such as class A or class B audio amplifiers.
4. Voltage Regulation:
   • The 2N2907 is sometimes used in voltage regulation circuits, where it helps stabilize voltage levels for sensitive components in a power supply.
5. Oscillator Circuits:
   • It is also used in oscillator circuits to generate signals for timing, frequency generation, or modulation purposes.
6. Switching Power Supplies:
   • The 2N2907 can be found in switching power supplies where it is used to switch currents in the power conversion process.

Advantages of 2N2907:

1. Moderate Voltage and Current Handling:
   • With a maximum collector-emitter voltage of 40V and a collector current of 600mA, the 2N2907 is suitable for moderate voltage and current applications, which makes it versatile in many circuits.
2. Good Current Gain:
   • The high current gain of the 2N2907 (ranging from 40 to 300) allows it to amplify weak signals significantly, making it efficient for use in small signal amplification.
3. Compact and Cost-Effective:
   • The TO-92 package is small and easy to integrate into most circuit designs. The 2N2907 is also cost-effective, making it a popular choice for both hobbyists and professionals.
4. Thermal Management:
   • While the 2N2907 has a 500mW power dissipation rating, it is still suitable for low-to-medium power applications. For higher power dissipation, heat sinks can be used to enhance performance.

Disadvantages of 2N2907:

1. Limited Current Handling:
   • The maximum collector current of 600mA might not be sufficient for high-power applications, such as driving large motors or switching heavy loads.
2. Limited Voltage Rating:
   • The maximum collector-emitter voltage of 40V restricts the 2N2907’s use in higher-voltage circuits. For circuits requiring higher voltage, a different transistor with a higher voltage rating would be more appropriate.
3. Saturation Voltage:
   • The saturation voltage (Vce_sat) is typically around 1V, which means there will be some power loss in switching applications where the transistor is fully on. In low-voltage or efficiency-critical circuits, this could be a drawback.
