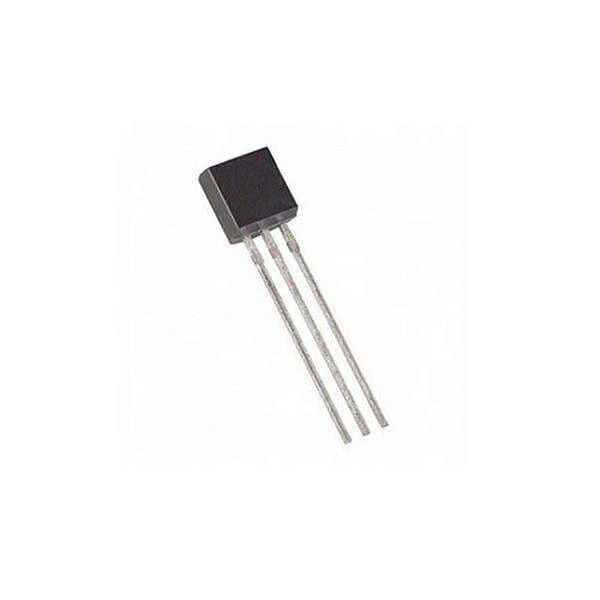

2N3906 Transistor (PNP, 40V, 200mA)

The 2N3906 is a PNP transistor that is widely used in electronic circuits for small-signal amplification and switching applications. It is designed to handle moderate current and voltage levels and is commonly used in both analog and digital circuits.

Key Features of 2N3906 Transistor (PNP, 40V, 200mA):

1. Type:
   • The 2N3906 is a PNP (positive-negative-positive) transistor. This means that current flows from the emitter (which is connected to the positive voltage) through the base and collector to the ground (negative terminal).
2. Voltage Rating:
   • The collector-emitter voltage (Vce) is rated at 40V, which means it can safely handle voltages up to 40V between the collector and emitter without breaking down.
3. Current Rating:
   • The collector current (Ic) is rated at 200mA, which means the transistor can safely carry a maximum current of 200mA through the collector.
4. Power Dissipation:
   • The maximum power dissipation is typically around 500mW (0.5W), meaning it can dissipate up to 500 milliwatts of power before overheating or damage occurs.
5. Frequency Response:
   • The 2N3906 transistor typically has a transition frequency (ft) of around 250MHz, making it suitable for applications in high-frequency switching and amplification.
6. Package Type:
   • The 2N3906 is available in a TO-92 package, which is a small, through-hole package commonly used in low-power and signal processing applications.
7. Gain (hFE):
   • The DC current gain (hFE) of the transistor typically ranges from 100 to 300, depending on the specific conditions and operating points. The current gain indicates the amplification capability of the transistor.
8. Base-Emitter Voltage (Vbe):
   • The Vbe is typically around 0.7V when the transistor is in active mode, which is standard for silicon-based transistors.

Applications of 2N3906 Transistor (PNP, 40V, 200mA):

1. Switching Circuits:
   • The 2N3906 is frequently used in switching applications, such as turning on/off devices like LEDs, relays, or other components that require PNP switching.
2. Amplification Circuits:
   • It is commonly used in small-signal amplification circuits, such as audio amplifiers, signal buffers, or oscillators, where a moderate gain is sufficient.
3. Signal Processing:
   • The transistor is suitable for low-power signal amplification in radio-frequency (RF) circuits, telecommunication equipment, and audio processing systems.
4. Voltage Regulation:
   • The 2N3906 can be used in voltage regulation circuits, where it helps maintain a stable output voltage by adjusting the current flowing through the load.
5. Inverter and Oscillator Circuits:
   • It is often used in inverters and oscillators that require moderate current handling and low voltage operation, making it suitable for low-power electronic systems.
6. Current Limiting Circuits:
   • The transistor can also be used in current-limiting applications, helping to protect circuits by limiting the amount of current that flows through them.
7. Switching in Digital Logic Circuits:
   • Due to its small size and moderate current rating, the 2N3906 is used in digital logic circuits as a switch to control the flow of signals between components.

Advantages of 2N3906 Transistor (PNP, 40V, 200mA):

1. Compact Size:
   • The TO-92 package makes the 2N3906 ideal for compact circuit designs where space is limited.
2. Cost-Effective:
   • The 2N3906 is relatively inexpensive, making it a popular choice in cost-sensitive applications.
3. Moderate Current Handling:
   • With a maximum current rating of 200mA, it is well-suited for low-power applications, ensuring reliable operation without excessive power dissipation.
4. High Frequency Response:
   • Its high transition frequency (250MHz) allows it to work effectively in high-frequency circuits, including audio and RF applications.
5. Availability:
   • The 2N3906 is widely available and used in many different electronic applications, ensuring its availability in most electronic component suppliers.
