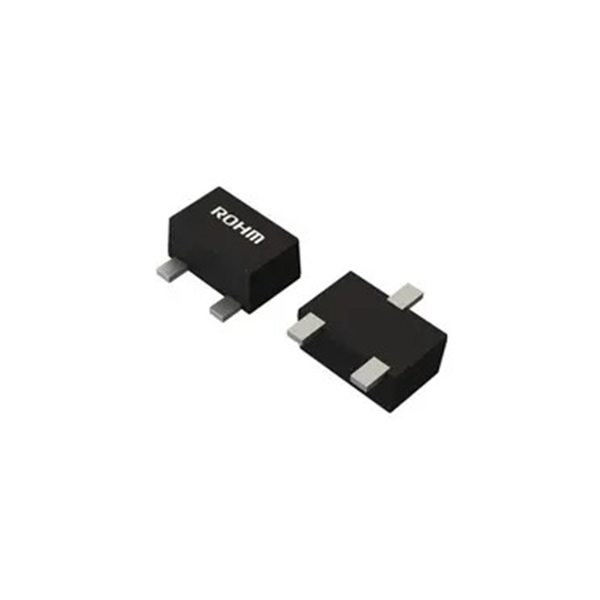

2SA1576UB SMD (50V, 150 mA) PNP Transistors
SKU: 8817040
Pick up from store
Shipping 2-3 business days
Description
2SA1576UB Datasheet. Specs and Replacement
Type Designator: 2SA1576UB
Material of Transistor: Si
Polarity: PNP
Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.15 A
Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics
Transition Frequency (ft): 140 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 120
Noise Figure, dB: -
Package: SOT323FL
