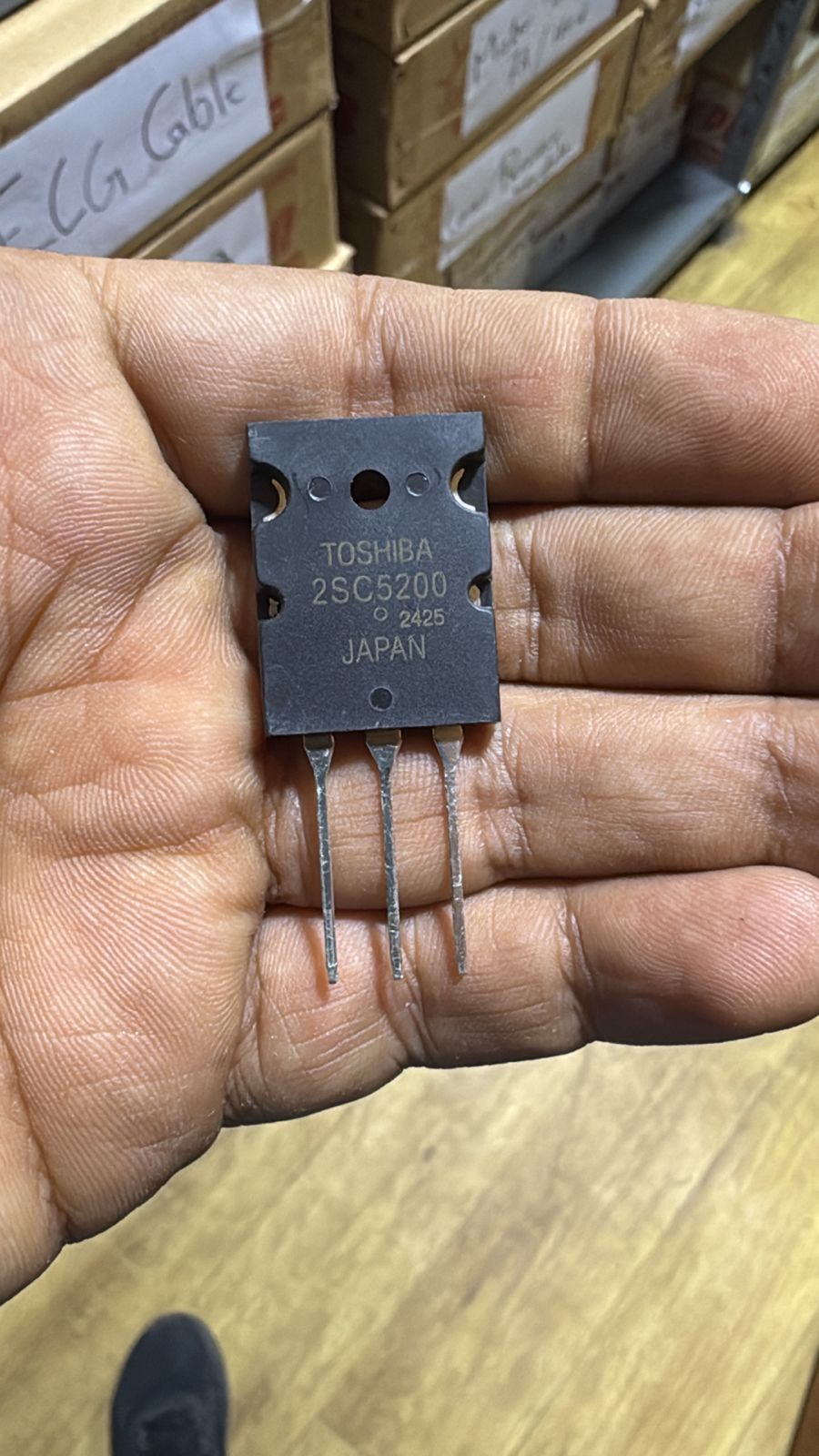

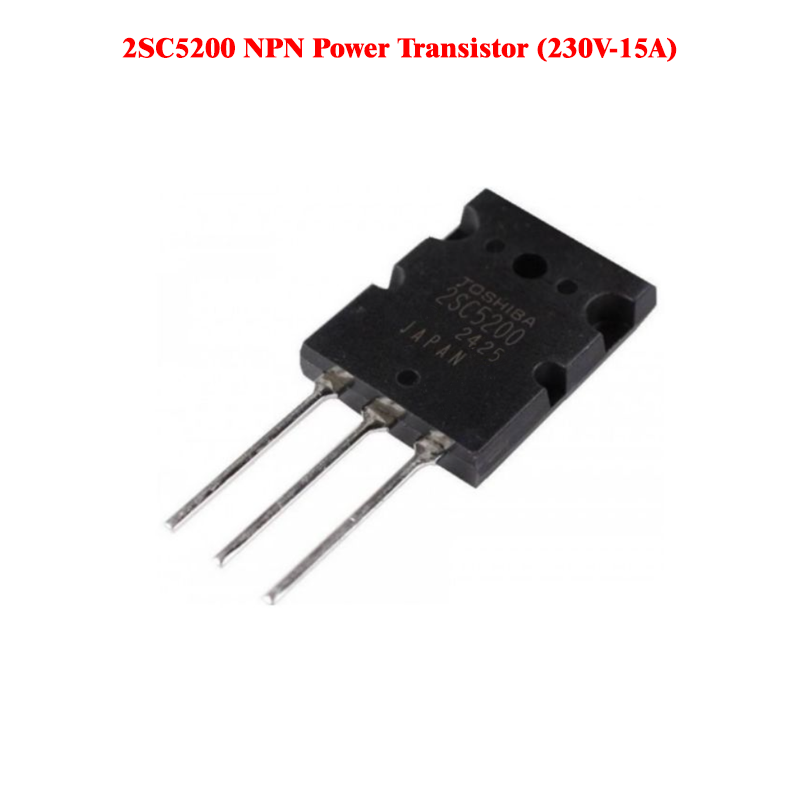

2SC5200 NPN Power Transistor TOSHIBA (230V-15A) TO-3P

The 2SC5200 NPN Power Transistor is a high-performance device designed to handle significant power in audio amplification and other high-power applications. Built for demanding environments, this transistor features a high breakdown voltage of 230V and can sustain 15A of continuous collector current, making it suitable for heavy-duty power circuits. It is commonly used in audio power amplifiers due to its ability to manage high current and voltage with stability.

Manufactured with a TO-3PL package, the 2SC5200 is engineered for efficient heat dissipation and reliable performance under various operating conditions. This power transistor has been optimized for use in high-fidelity audio equipment, where maintaining signal integrity and minimal distortion is critical. The transistor is also noted for its durability, capable of withstanding junction temperatures up to 150°C, which makes it a robust component in high-temperature environments.

When used in audio amplifiers, the 2SC5200 ensures that the amplifier can deliver strong output power without degradation in sound quality. Its performance characteristics, such as low saturation voltage and high current gain, make it an excellent choice for high-quality sound amplification.

Features:

• High Fidelity Audio Frequency Amplifier Output.
• Low Harmonic Distortion, Large Current Capability and High Transition Frequency.
• Use in 100W High Fidelity Audio Amplifier’s Output Stage.

Specifications:

Transistor Type:NPN

Maximum DC Collector Current:15 A

Maximum Collector Emitter Voltage:230 V

Package Type:TO-3PL

Mounting Type:Through Hole

Maximum Power Dissipation:150 W

Minimum DC Current Gain:55

Transistor Configuration:Single

Maximum Collector Base Voltage:230 V

Maximum Emitter Base Voltage:5 V

Pin Count:3

Number of Elements per Chip:1

Maximum Operating Temperature:+150 °C
