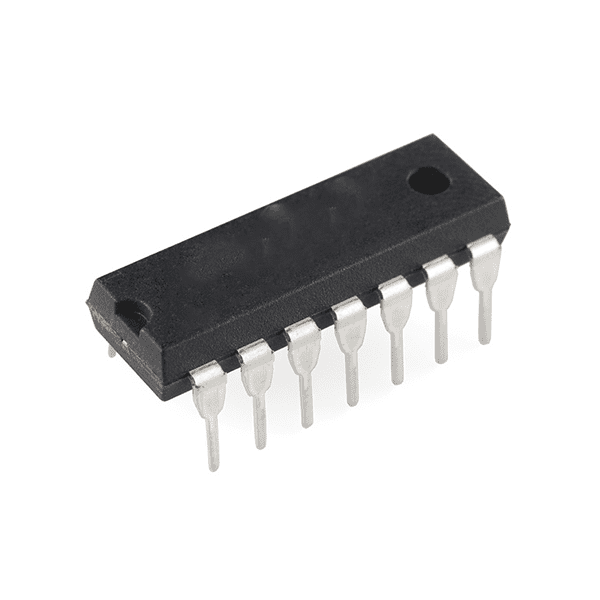

74248 (BCD to 8-Line Decoder/Driver) multiplexing or 7-segment display drivers

74248 IC Description:

The 74248 is a BCD to 8-line decoder/driver, meaning it takes a 4-bit BCD input and decodes it to select one of 8 output lines. This IC is specifically designed to provide an active-low output for the corresponding decimal value (0–7) from the BCD input (4-bit binary input).

Key Features:

• BCD to 8-Line Decoder/Driver: The IC accepts a 4-bit BCD input and drives one of eight outputs (active-low) based on that input.
• Active-Low Outputs: The output lines are active-low, meaning the selected output line is pulled low (0), while all other outputs remain high (1).
• Decoding Logic: It decodes BCD values from 0 to 7 and activates the corresponding output (Y0–Y7). For BCD inputs from 8 to 15, none of the outputs are activated (they remain high).
• TTL Compatible: The IC is designed to be TTL (Transistor-Transistor Logic) compatible, meaning it works well with other TTL logic devices in a digital system.
• Driver Capability: The IC can drive TTL-compatible loads directly, making it suitable for use in digital systems where a BCD-to-decimal

Applications:

1. 7-Segment Display Driver: The 74248 can be used to drive a 7-segment display or any other output device where one of 8 lines needs to be activated based on the BCD input.
2. Multiplexing: The IC can be used in multiplexing systems where one of 8 devices or lines needs to be selected based on the 4-bit BCD input.
3. Decimal-to-Line Conversion: In digital circuits, it’s often necessary to convert a BCD input (e.g., from a counter or sensor) into an active line signal to drive other logic or devices. The 74248 is ideal for this purpose.
4. Binary-to-Decimal Decoding: In systems where a binary number needs to be decoded to activate one of several outputs (for example, for selecting between different memory locations or controlling different components), this IC can serve as the decoder.

Electrical Characteristics:

• Supply Voltage (Vcc): Typically 5V (with a range of 4.5V to 5.5V).
• Input Logic Levels: The inputs are TTL-compatible, meaning they recognize standard logic voltage levels (0V for LOW and 2V to 5V for HIGH).
• Output Logic Levels: The outputs are active-low, meaning they will be LOW (0) when active and HIGH (1) when inactive.
