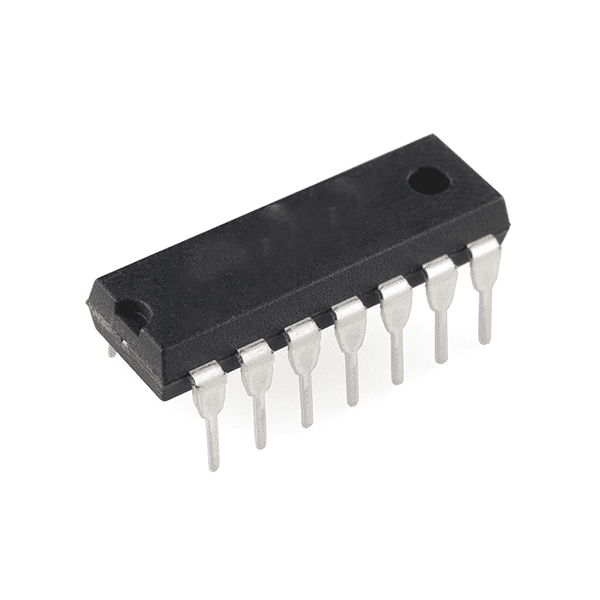

74597 (74HC597) (8-bit shift register with input flip-flops)

74HC597 is an 8-bit, high-speed Si-gate CMOS shift register with input flip-flops, primarily functioning as a parallel-in, serial-out (PISO) converter. It allows for loading 8 bits of parallel data and shifting it out serially through a single output pin.

Key Features and Specifications

According to datasheets from manufacturers like Nexperia and Texas Instruments, the 74HC597 offers a reliable and efficient solution for data management.

• Function: 8-bit parallel-in, serial-out (PISO) shift register with an 8-bit input storage latch.
• Supply Voltage Range: Wide operating voltage from 2.0 V to 6.0 V.
• Clocks: Both the input storage register and the shift register have independent, positive edge-triggered clocks (STCP and SHCP, respectively).
• Control Inputs: Includes a direct overriding load input (PL) to transfer data from the storage register to the shift register, and a master reset input (MR) to clear the shift register asynchronously.
• Low Power: Exhibits CMOS low power dissipation and high noise immunity.
• Package Options: Commonly available in 16-pin Dual In-line Package (PDIP), Small Outline Integrated Circuit (SOIC), and Thin Shrink Small Outline Package (TSSOP).

Applications

The 74HC597 is often used when a microprocessor or microcontroller needs to read a group of parallel inputs (like switches or sensor data) using fewer pins.

• Input Status Monitoring: Reading the state of multiple switches or buttons with a single serial input pin on a microcontroller.
• Port Expansion: Expanding the input capabilities of a system with limited I/O pins.
• Data Acquisition: In data acquisition systems where parallel data needs to be converted to a serial stream for transmission.
• Industrial Control: In industrial applications for interface conditioning and control signal monitoring.

Datasheet:

https://www.alldatasheet.com/datasheet-pdf/view/15645/PHILIPS/74HC597.html
